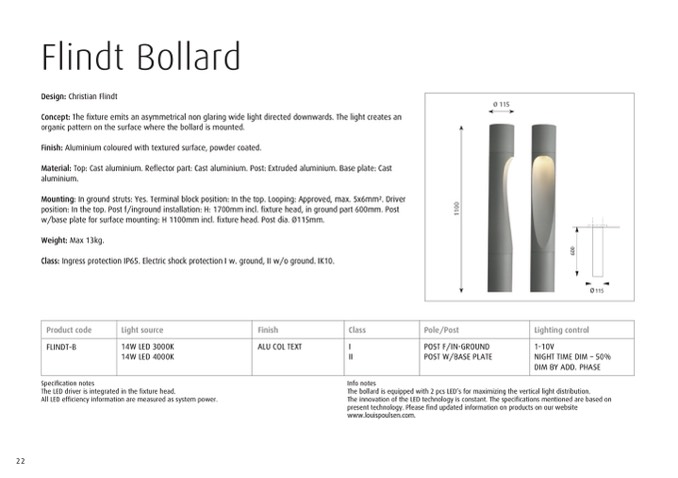

Flindt Bollard

Design: Christian Flindt

Concept: The fixture emits an asymmetrical non glaring wide light directed downwards. The light creates an

organic pattern on the surface where the bollard is mounted.

Finish: Aluminium coloured with textured surface, powder coated.

Material: Top: Cast aluminium. Reflector part: Cast aluminium. post: Extruded aluminium. Base plate: Cast

aluminium.

Mounting: In ground struts: Yes. Terminal block position: In the top. Looping: Approved, max. 5x6mm2. Driver

position: In the top. post f/inground installation: H: 1700mm incl. fixture head, in ground part 600mm. post

w/base plate for surface mounting: H 1100mm incl. fixture head. post dia. Ø115mm.

115

Ø

Weight: Max 13kg.

Class: Ingress protection Ip65. Electric shock protection I w. ground, II w/o ground. IK10.

Product code

Light source

Finish

Class

Pole/Post

Lighting control

FLINDT-B

14W LED 3000K

14W LED 4000K

ALU COL TEXT

I

II

pOsT F/IN-GROUND

pOsT W/BAsE pLATE

1-10V

NIGHT TIME DIM – 50%

DIM BY ADD. pHAsE

22

specification notes

The LED driver is integrated in the fixture head.

All LED efficiency information are measured as system power.

Info notes

The bollard is equipped with 2 pcs LED’s for maximizing the vertical light distribution.

The innovation of the LED technology is constant. The specifications mentioned are based on

present technology. please find updated information on products on our website

www.louispoulsen.com.

6

0

0
