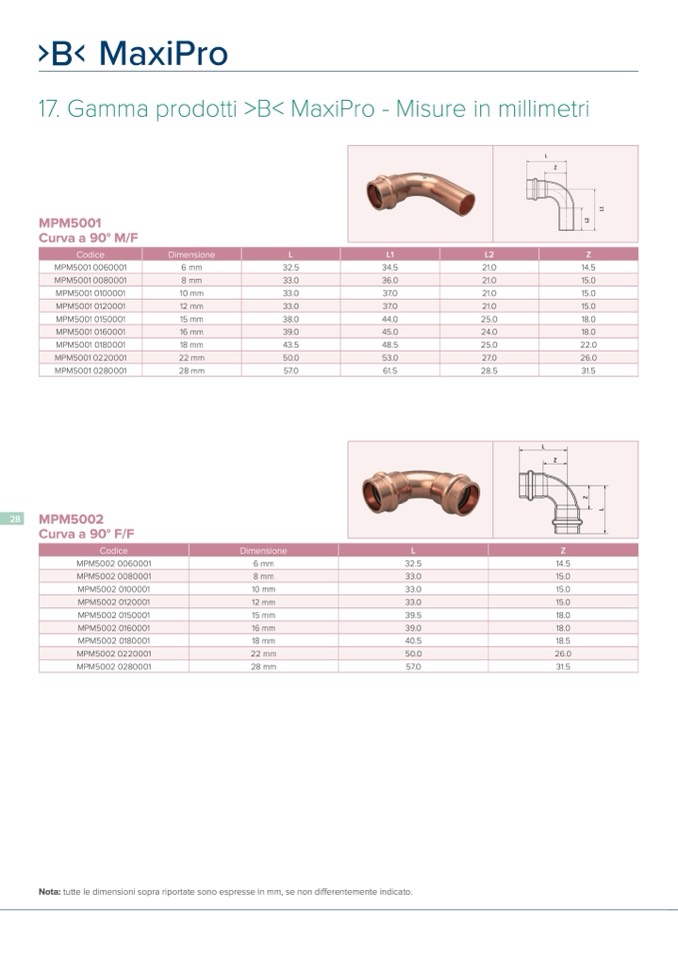

17. Gamma prodotti >B< MaxiPro - Misure in millimetr
i
L
Z
MPM500
1
Curva a 90° M/
F
L
2
Codice
Dimensione
L
L1
L2
Z
MPM5001 0060001
6 mm
32.5
34.5
21.0
14.
5
MPM5001 0080001
8 mm
33.0
36.0
21.0
15.
0
MPM5001 0100001
10 mm
33.0
37.0
21.0
15.
0
MPM5001 0120001
12 mm
33.0
37.0
21.0
15.
0
MPM5001 0150001
15 mm
38.0
44.0
25.0
18.
0
MPM5001 0160001
16 mm
39.0
45.0
24.0
18.
0
MPM5001 0180001
18 mm
43.5
48.5
25.0
22.0
MPM5001 0220001
22 mm
50.0
53.0
27.0
26.0
MPM5001 0280001
28 mm
57.0
61.5
28.5
31.5
L
Z
Z
MPM500
2
Curva a 90° F/
F
Codice
Dimensione
L
Z
MPM5002 0060001
6 mm
32.5
14.5
MPM5002 0080001
8 mm
33.0
15.
0
MPM5002 0100001
10 mm
33.0
15.
0
MPM5002 0120001
12 mm
33.0
15.
0
MPM5002 0150001
15 mm
39.5
18.0
MPM5002 0160001
16 mm
39.0
18.0
MPM5002 0180001
18 mm
40.5
18.
5
MPM5002 0220001
22 mm
50.0
26.0
MPM5002 0280001
28 mm
57.0
31.5
Nota: tutte le dimensioni sopra riportate sono espresse in mm, se non differentemente indicato.
