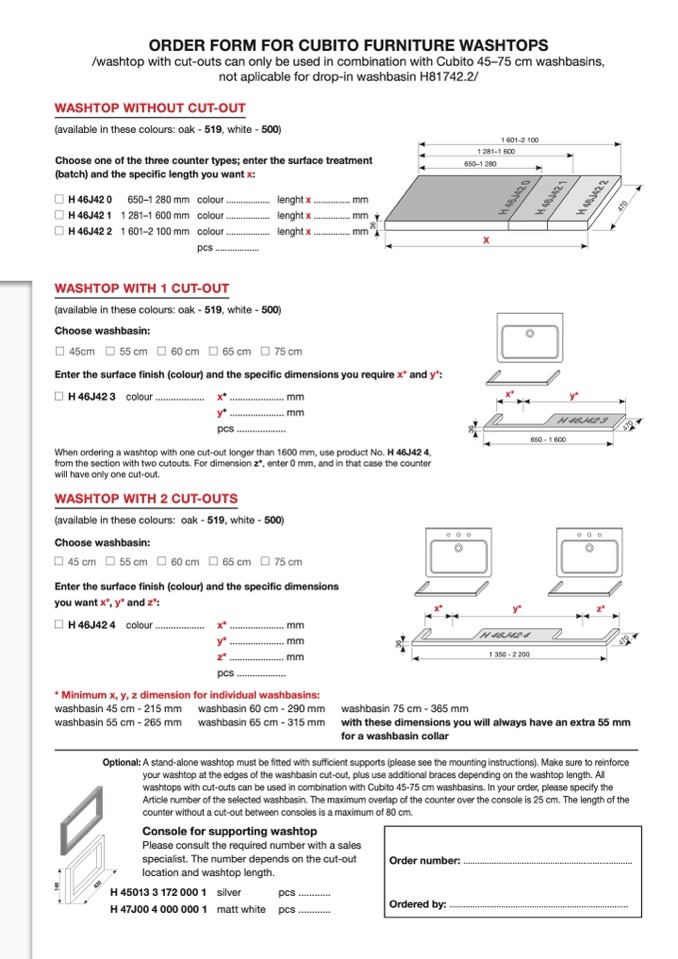

ORDER FORM FOR CUBITO FURNITURE WASHTOPS

/washtop with cut-outs can only be used in combination with Cubito 45–75 cm washbasins,

not aplicable for drop-in washbasin H81742.2/

WASHTOP WITHOUT CUT-OUT

(available in these colours: oak - 519, white - 500)

Choose one of the three counter types; enter the surface treatment

(batch) and the specific length you want x:

1 601–2 100

1 281–1 600

650–1 280

X

H 46J42 0

H 46J42 1

H 46J42 2

650–1 280 mm

1 281–1 600 mm

1 601–2 100 mm

colour ..................

colour ..................

colour ..................

pcs ..................

lenght x ............... mm

lenght x ............... mm

lenght x ............... mm

WASHTOP WITH 1 CUT-OUT

(available in these colours: oak - 519, white - 500)

Choose washbasin:

45cm

55 cm

60 cm

65 cm

75 cm

Enter the surface

finish (colour) and the specific dimensions you require x* and y*:

H 46J42 3 colour ................... x* ..................... mm

x*

y*

y* ..................... mm

pcs ...................

When ordering a washtop with one cut-out longer than 1600 mm, use product No. H 46J42 4,

from the section with two cutouts. For dimension z*, enter 0 mm, and in that case the counter

will have only one cut-out.

H 46J42 3

650 - 1 600

WASHTOP WITH 2 CUT-OUTS

(available in these colours: oak - 519, white - 500)

Choose washbasin:

45 cm

55 cm

60 cm

65 cm

75 cm

Enter the surface finish (colour) and the specific dimensions

you want x*, y* and z*:

x*

y*

z*

H 46J42 4

1 350 - 2 200

H 46J42 4

colour ...................

x* ..................... mm

y* ..................... mm

z* ..................... mm

pcs ...................

* Minimum x, y, z dimension for individual washbasins:

washbasin 45 cm - 215 mm

washbasin 60 cm - 290 mm

washbasin 55 cm - 265 mm

washbasin 65 cm - 315 mm

washbasin 75 cm - 365 mm

with these dimensions you will always have an extra 55 mm

for a washbasin collar

Optional: A stand-alone washtop must be fitted with sufficient supports (please see the mounting instructions). Make sure to reinforce

your washtop at the edges of the washbasin cut-out, plus use additional braces depending on the washtop length. All

washtops with cut-outs can be used in combination with Cubito 45-75 cm washbasins. In your order, please specify the

Article number of the selected washbasin. The maximum overlap of the counter over the console is 25 cm. The length of the

counter without a cut-out between consoles is a maximum of 80 cm.

Console for supporting washtop

Please consult the required number with a sales

specialist. The number depends on the cut-out

location and washtop length.

H 45013 3 172 000 1 silver

pcs ............

H 47J00 4 000 000 1 matt white pcs ............

Order number: ........................................................................

Ordered by: ............................................................................
