Jika - 2021

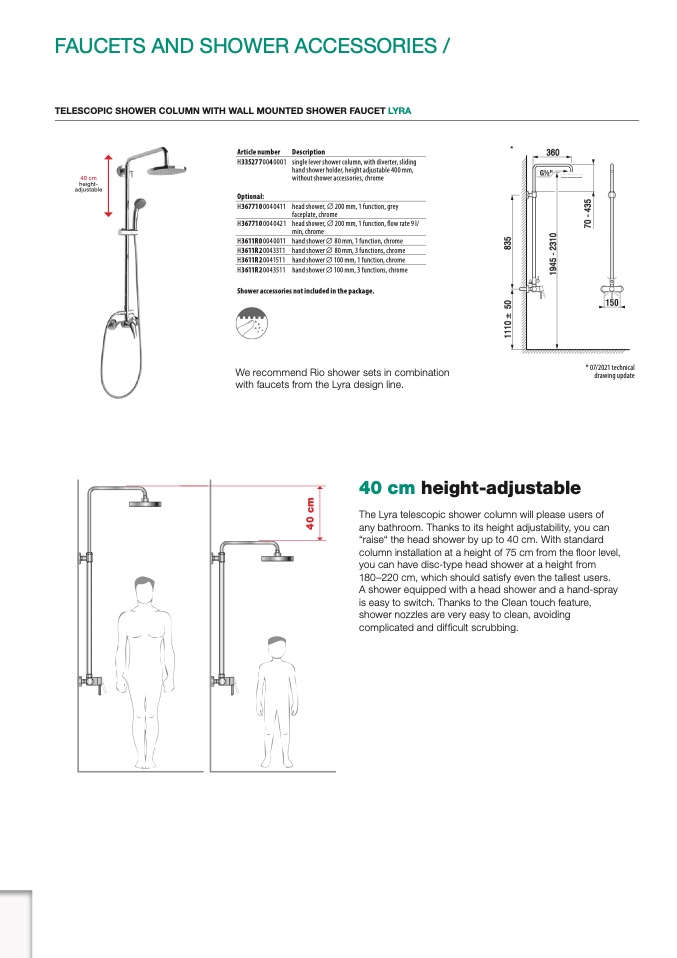

TELESCOPIC SHOWER COLUMN WITH WALL MOUNTED SHOWER FAUCET LYRA

Article number

H3352770040001

Optional:

H3677100040411

H3677100040421

H3611R00040011

H3611R20043311

H3611R20041511

Description

single lever shower column, with diverter, sliding

hand shower holder, height adjustable 400 mm,

without shower accessories, chrome

head shower, ∅ 200 mm, 1 function, grey

faceplate, chrome

head shower, ∅ 200 mm, 1 function, flow rate 9 l/

min, chrome

hand shower ∅ 80 mm, 1 function, chrome

hand shower ∅ 80 mm, 3 functions, chrome

hand shower ∅ 100 mm, 1 function, chrome

hand shower ∅ 100 mm, 3 functions, chrome

40 cm

height-

adjustable

H3611R20043511

Shower accessories not included in the package.

We recommend Rio shower sets in combination

with faucets from the Lyra design line.

* 07/2021 technical

drawing update

The Lyra telescopic shower column will please users of

any bathroom. Thanks to its height adjustability, you can

“raise“ the head shower by up to 40 cm. With standard

column installation at a height of 75 cm from the floor level,

you can have disc-type head shower at a height from

180–220 cm, which should satisfy even the tallest users.

A shower equipped with a head shower and a hand-spray

is easy to switch. Thanks to the Clean touch feature,

shower nozzles are very easy to clean, avoiding

complicated and difficult scrubbing.
