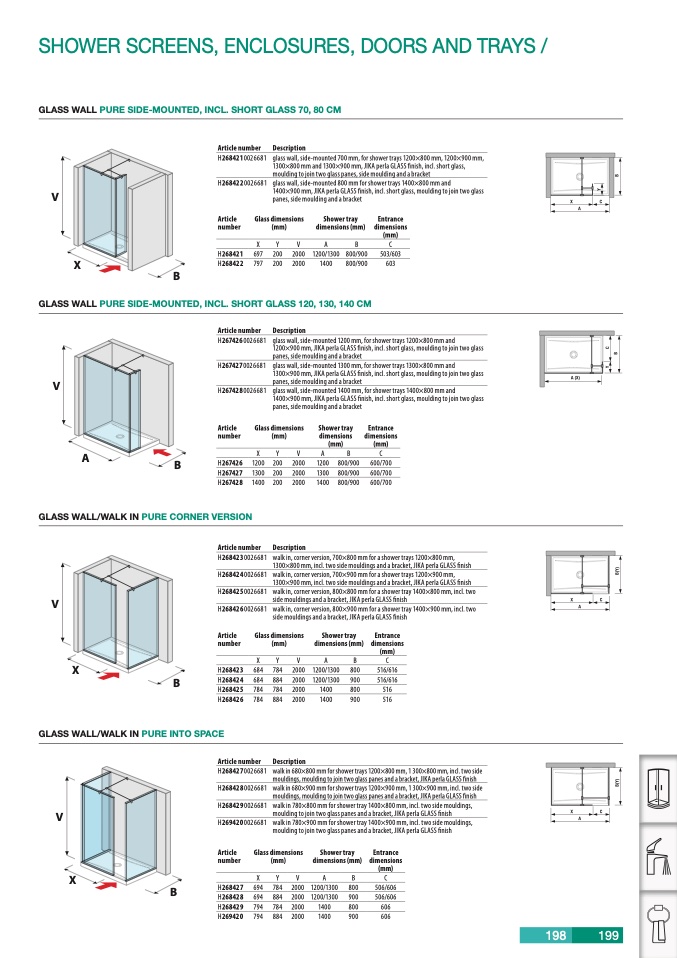

SHOWER SCREENS, ENCLOSURES, DOORS AND TRAYS /

GLASS WALL PURE SIDE-MOUNTED, INCL. SHORT GLASS 70, 80 CM

Article number

H2684210026681

H2684220026681

Description

glass wall, side-mounted 700 mm, for shower trays 1200×800 mm, 1200×900 mm,

1300×800 mm and 1300×900 mm, JIKA perla GLASS finish, incl. short glass,

moulding to join two glass panes, side moulding and a bracket

glass wall, side-mounted 800 mm for shower trays 1400×800 mm and

1400×900 mm, JIKA perla GLASS finish, incl. short glass, moulding to join two glass

panes, side moulding and a bracket

V

X

Article

number

H268421

H 26842 2

Glass dimensions

Shower tray

Entrance

(mm)

dimensions (mm) dimensions

(mm)

X

Y

V

A

B

C

697 200 2000 1200/1300 800/900

503/603

797 200 2000

1400

800/900

603

B

GLASS WALL PURE SIDE-MOUNTED, INCL. SHORT GLASS 120, 130, 140 CM

V

A

Article number

H2674260026681

H2674270026681

H2674280026681

Description

glass wall, side-mounted 1200 mm, for shower trays 1200×800 mm and

1200×900 mm, JIKA perla GLASS finish, incl. short glass, moulding to join two glass

panes, side moulding and a bracket

glass wall, side-mounted 1300 mm, for shower trays 1300×800 mm and

1300×900 mm, JIKA perla GLASS finish, incl. short glass, moulding to join two glass

panes, side moulding and a bracket

glass wall, side-mounted 1400 mm, for shower trays 1400×800 mm and

1400×900 mm, JIKA perla GLASS finish, incl. short glass, moulding to join two glass

panes, side moulding and a bracket

Article

number

H267426

H267427

H267428

Glass dimensions

Shower tray

(mm)

dimensions

(mm)

Entrance

dimensions

(mm)

B

X

Y

V

A

B

C

1200

1300

1400

200 2000

1200 800/900 600/700

200 2000

1300 800/900 600/700

200 2000 1400 800/900 600/700

Description

walk in, corner version, 700×800 mm for a shower trays 1200×800 mm,

1300×800 mm, incl. two side mouldings and a bracket, JIKA perla GLASS finish

walk in, corner version, 700×900 mm for a shower trays 1200×900 mm,

1300×900 mm, incl. two side mouldings and a bracket, JIKA perla GLASS finish

walk in, corner version, 800×800 mm for a shower tray 1400×800 mm, incl. two

side mouldings and a bracket, JIKA perla GLASS finish

walk in, corner version, 800×900 mm for a shower tray 1400×900 mm, incl. two

side mouldings and a bracket, JIKA perla GLASS finish

GLASS WALL/WALK IN PURE CORNER VERSION

Article number

V

X

H2684230026681

H2684240026681

H2684250026681

H2684260026681

Article

number

H268423

H268424

H268425

H268426

Glass dimensions

Shower tray

Entrance

(mm)

dimensions (mm) dimensions

(mm)

X

Y

V

A

B

C

B

684

684

784

784

784 2000

884 2000

784 2000

884 2000

Description

1200/1300 800

516/616

1200/1300 900

516/616

1400

800

516

1400

900

516

GLASS WALL/WALK IN PURE INTO SPACE

Article number

V

H2684270026681

H2684280026681

H2684290026681

H2694200026681

walk in 680×800 mm for shower trays 1200×800 mm, 1 300×800 mm, incl. two side

mouldings, moulding to join two glass panes and a bracket, JIKA perla GLASS finish

walk in 680×900 mm for shower trays 1200×900 mm, 1 300×900 mm, incl. two side

mouldings, moulding to join two glass panes and a bracket, JIKA perla GLASS finish

walk in 780×800 mm for shower tray 1400×800 mm, incl. two side mouldings,

moulding to join two glass panes and a bracket, JIKA perla GLASS finish

walk in 780×900 mm for shower tray 1400×900 mm, incl. two side mouldings,

moulding to join two glass panes and a bracket, JIKA perla GLASS finish

X

B

Article

number

H268427

H268428

H268429

H269420

Glass dimensions

Shower tray

Entrance

(mm)

dimensions (mm) dimensions

(mm)

X

Y

V

A

B

C

694 784 2000 1200/1300 800

506/606

694 884 2000 1200/1300 900

506/606

794 784 2000

1400

800

606

794 884 2000

1400

900

606
