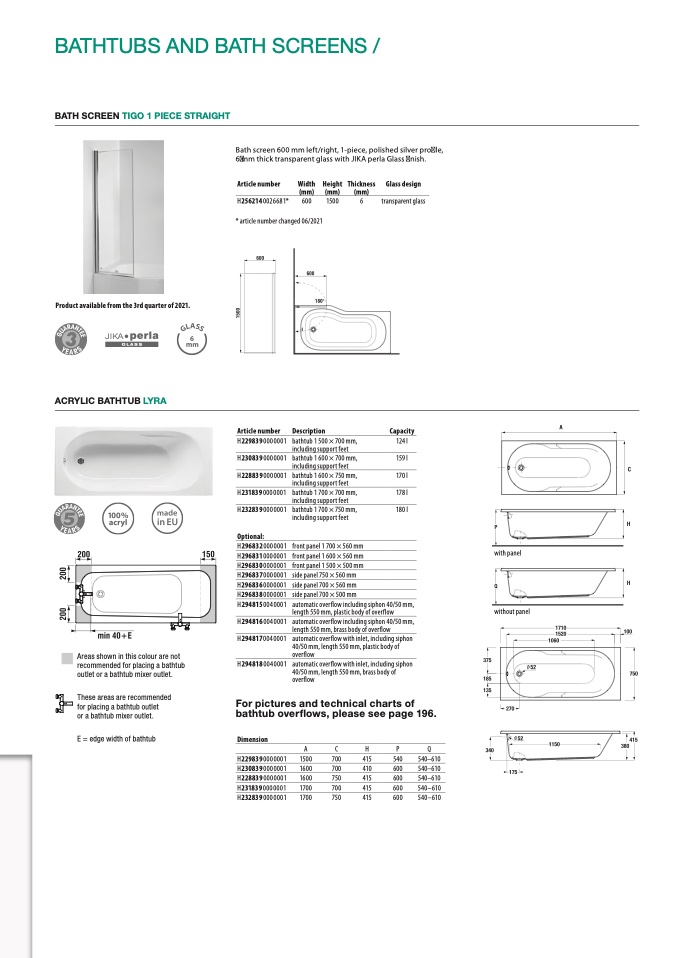

BATHTUBS AND BATH SCREENS /
BATH SCREEN TIGO 1 PIECE STRAIGHT
Product available from the 3rd quarter of 2021.
ACRYLIC BATHTUB LYRA
Bath screen 600 mm left/right, 1-piece, polished silver profile,
6 mm thick transparent glass with JIKA perla Glass finish.
Areas shown in this colour are not
recommended for placing a bathtub
outlet or a bathtub mixer outlet.
These areas are recommended
for placing a bathtub outlet
or a bathtub mixer outlet.
E = edge width of bathtub
For pictures and technical charts of
bathtub overflows, please see page 196.
Dimension
A
C
H
P
Q
H2298390000001
1500
700
415
540
540–610
H2308390000001
1600
700
410
600
540–610
H2288390000001
1600
750
415
600
540–610
H2318390000001
1700
700
415
600
540–610
H2328390000001
1700
750
415
600
540–610
Article number
Width Height Thickness
(mm) (mm)
(mm)
H2562140026681*
600
1500
6
* article number changed 06/2021
Glass design
transparent glass
Article number
H2298390000001
H2308390000001
H2288390000001
H2318390000001
H2328390000001
Optional:
H2968320000001
H2968310000001
H2968300000001
H2968370000001
H2968360000001
H2968380000001
H2948150040001
H2948160040001
H2948170040001
H2948180040001
Description
Capacity
bathtub 1 500 × 700 mm,
including support feet
bathtub 1 600 × 700 mm,
including support feet
bathtub 1 600 × 750 mm,
including support feet
bathtub 1 700 × 700 mm,
including support feet
bathtub 1 700 × 750 mm,
including support feet
124 l
159 l
170 l
178l
180l
front panel 1 700 × 560 mm
front panel 1 600 × 560 mm
front panel 1 500 × 500 mm
side panel 750 × 560 mm
side panel 700 × 560 mm
side panel 700 × 500 mm
automatic overflow including siphon 40/50 mm,
length 550 mm, plastic body of overflow
automatic overflow including siphon 40/50 mm,
length 550 mm, brass body of overflow
automatic overflow with inlet, including siphon
40/50 mm, length 550 mm, plastic body of
overflow
automatic overflow with inlet, including siphon
40/50 mm, length 550 mm, brass body of
overflow
with panel
without panel
