Jika - 2021

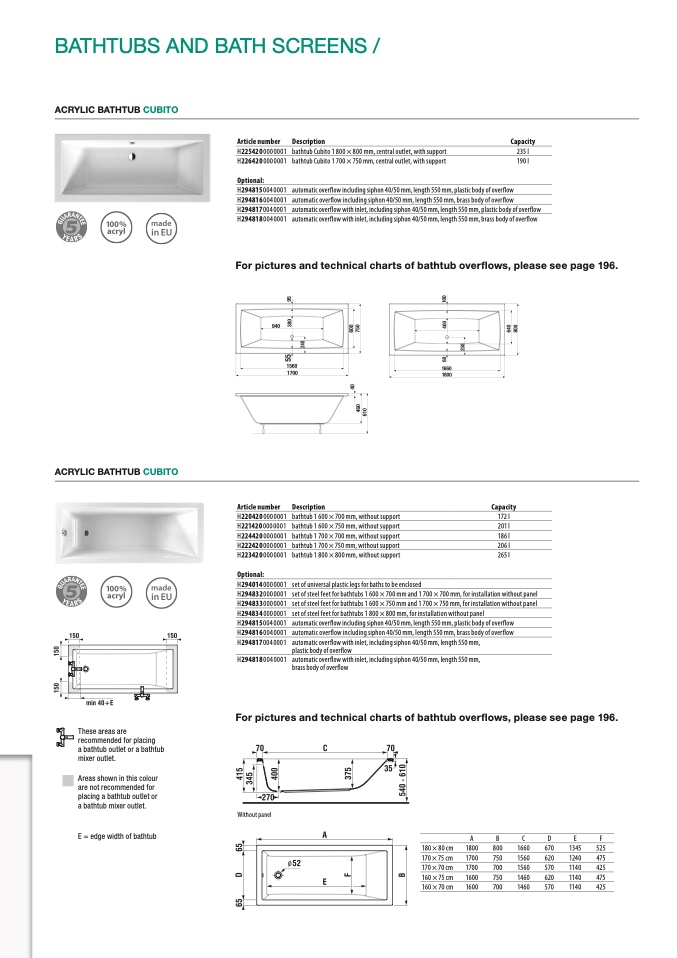

BATHTUBS AND BATH SCREENS /

ACRYLIC BATHTUB CUBITO

These areas are

recommended for placing

a bathtub outlet or a bathtub

mixer outlet.

Areas shown in this colour

are not recommended for

placing a bathtub outlet or

a bathtub mixer outlet.

E = edge width of bathtub

Without panel

Article number

H2254200000001

H2264200000001

Optional:

H2948150040001

H2948160040001

H2948170040001

H2948180040001

Description

Capacity

bathtub Cubito 1 800 × 800 mm, central outlet, with support

235 l

bathtub Cubito 1 700 × 750 mm, central outlet, with support

190 l

automatic overflow including siphon 40/50 mm, length 550 mm, plastic body of overflow

automatic overflow including siphon 40/50 mm, length 550 mm, brass body of overflow

automatic overflow with inlet, including siphon 40/50 mm, length 550 mm, plastic body of overflow

automatic overflow with inlet, including siphon 40/50 mm, length 550 mm, brass body of overflow

For pictures and technical charts of bathtub overflows, please see page 196.

Article number

H2204200000001

H2214200000001

H2244200000001

H2224200000001

H2234200000001

Optional:

H2940140000001

H2948320000001

H2948330000001

H2948340000001

H2948150040001

H2948160040001

H2948170040001

H2948180040001

Description

Capacity

bathtub 1 600 × 700 mm, without support

bathtub 1 600 × 750 mm, without support

bathtub 1 700 × 700 mm, without support

bathtub 1 700 × 750 mm, without support

bathtub 1 800 × 800 mm, without support

172l

201 l

186l

206 l

265 l

set of universal plastic legs for baths to be enclosed

set of steel feet for bathtubs 1 600 × 700 mm and 1 700 × 700 mm, for installation without panel

set of steel feet for bathtubs 1 600 × 750 mm and 1 700 × 750 mm, for installation without panel

set of steel feet for bathtubs 1 800 × 800 mm, for installation without panel

automatic overflow including siphon 40/50 mm, length 550 mm, plastic body of overflow

automatic overflow including siphon 40/50 mm, length 550 mm, brass body of overflow

automatic overflow with inlet, including siphon 40/50 mm, length 550 mm,

plastic body of overflow

automatic overflow with inlet, including siphon 40/50 mm, length 550 mm,

brass body of overflow

For pictures and technical charts of bathtub overflows, please see page 196.

180 × 80 cm

170 × 75 cm

170 × 70 cm

160 × 75 cm

160 × 70 cm

1800

800

1660

670

1700

750

1560

620

1700

700

1560

570

1600

750

1460

620

1600

700

1460

570

1345

525

1240

475

1140

425

1140

475

1140

425
