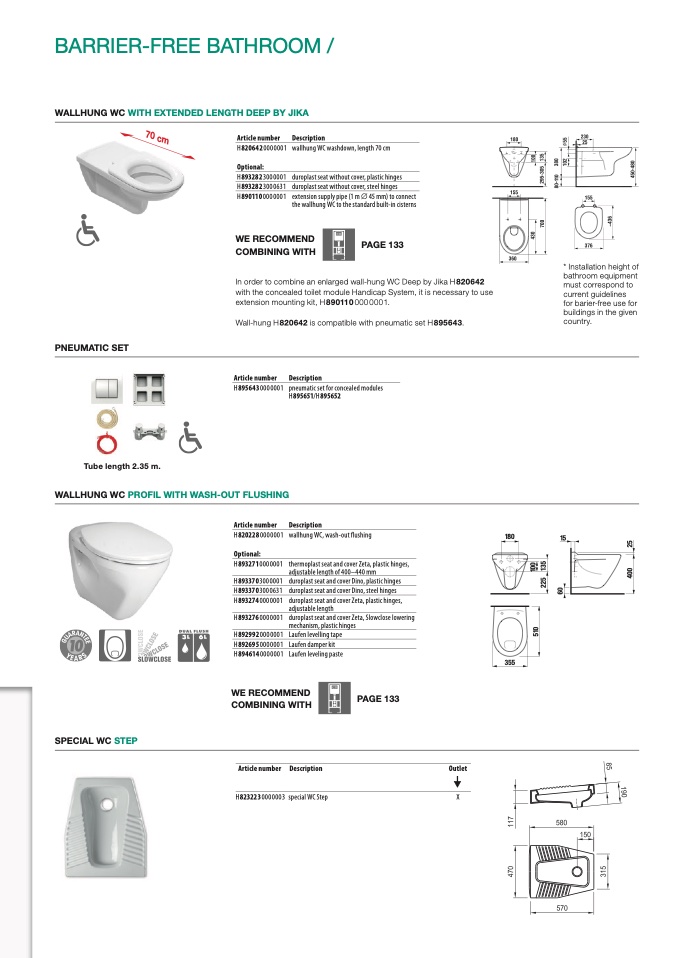

BARRIER-FREE BATHROOM /

WALLHUNG WC WITH EXTENDED LENGTH DEEP BY JIKA

PNEUMATIC SET

Tube length 2.35 m.

WALLHUNG WC PROFIL WITH WASH-OUT FLUSHING

SPECIAL WC STEP

24470

24470

Article number

H8206420000001

Optional:

H8932823000001

H8932823000631

H8901100000001

Description

wallhung WC washdown, length 70 cm

duroplast seat without cover, plastic hinges

duroplast seat without cover, steel hinges

extension supply pipe (1 m ∅ 45 mm) to connect

the wallhung WC to the standard built-in cisterns

WE RECOMMEND

COMBINING WITH

PAGE 133

In order to combine an enlarged wall-hung WC Deep by Jika H820642

with the concealed toilet module Handicap System, it is necessary to use

extension mounting kit, H8901100000001.

Wall-hung H820642 is compatible with pneumatic set H895643.

* Installation height of

bathroom equipment

must correspond to

current guidelines

for barier-free use for

buildings in the given

country.

Article number

Description

H8956430000001 pneumatic set for concealed modules

H 895651/H 895652

Article number

H8202280000001

Optional:

H8932710000001

H8933703000001

H8933703000631

H8932740000001

H8932760000001

H8929920000001

H8926950000001

H8946140000001

Description

wallhung WC, wash-out flushing

thermoplast seat and cover Zeta, plastic hinges,

adjustable length of 400–440 mm

duroplast seat and cover Dino, plastic hinges

duroplast seat and cover Dino, steel hinges

duroplast seat and cover Zeta, plastic hinges,

adjustable length

duroplast seat and cover Zeta, Slowclose lowering

mechanism, plastic hinges

Laufen levelling tape

Laufen damper kit

180

355

15

5

1

0

6

0

1

0

0

2

2

5

1

3

5

4

0

0

2

5

WE RECOMMEND

COMBINING WITH

Article number Description

H 82322 3 000 000 3 special WC Step

PAGE 133

Laufen leveling paste

Outlet

X
