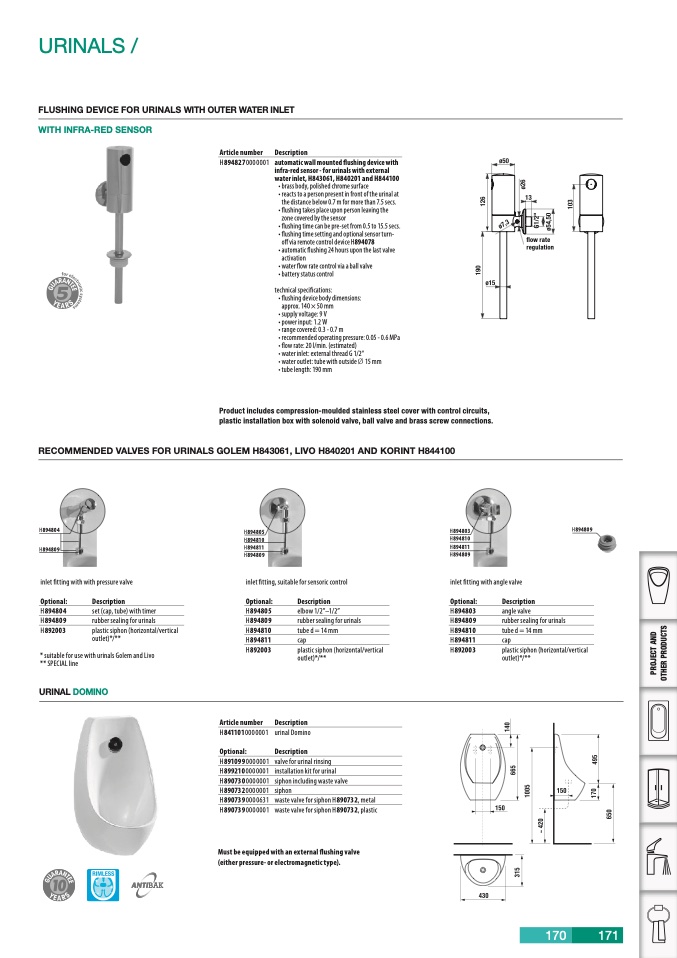

URINALS /

FLUSHING DEVICE FOR URINALS WITH OUTER WATER INLET

WITH INFRA-RED SENSOR

Article number

H8948270000001

Description

automatic wall mounted flushing device with

infra-red sensor - for urinals with external

water inlet, H843061, H840201 and H844100

• brass body, polished chrome surface

• reacts to a person present in front of the urinal at

the distance below 0.7 m for more than 7.5 secs.

• flushing takes place upon person leaving the

zone covered by the sensor

• flushing time can be pre-set from 0.5 to 15.5 secs.

• flushing time setting and optional sensor turn-

off via remote control device H894078

• automatic flushing 24 hours upon the last valve

activation

• water flow rate control via a ball valve

• battery status control

technical specifications:

• flushing device body dimensions:

approx. 140 × 50 mm

• supply voltage: 9 V

• power input: 1.2 W

• range covered: 0.3 - 0.7 m

• recommended operating pressure: 0.05 - 0.6 MPa

• flow rate: 20 l/min. (estimated)

• water inlet: external thread G 1/2“

• water outlet: tube with outside Ø 15 mm

• tube length: 190 mm

flow rate

regulation

Product includes compression-moulded stainless steel cover with control circuits,

plastic installation box with solenoid valve, ball valve and brass screw connections.

RECOMMENDED VALVES FOR URINALS GOLEM H843061, LIVO H840201 AND KORINT H844100

H894804

H894805

H894803

H894809

H 89480 9

inlet fitting with with pressure valve

H894810

H 894811

H 89480 9

inlet fitting, suitable for sensoric control

H894810

H 894811

H 89480 9

inlet fitting with angle valve

Optional:

H 89480 4

H 89480 9

Description

set (cap, tube) with timer

rubber sealing for urinals

Optional:

H894805

H 89480 9

H894810

H 894811

H892003

Article number

H8411010000001

Optional:

H8910990000001

H8992100000001

H8907300000001

H8907320000001

H8907390000631

H8907390000001

Description

elbow 1/2”–1/2”

rubber sealing for urinals

tube d = 14 mm

cap

plastic siphon (horizontal/vertical

outlet)*/**

Description

urinal Domino

Description

valve for urinal rinsing

installation kit for urinal

siphon including waste valve

siphon

waste valve for siphon H890732, metal

waste valve for siphon H890732, plastic

Optional:

H894803

H 89480 9

H894810

H 894811

H892003

Description

angle valve

rubber sealing for urinals

tube d = 14 mm

cap

plastic siphon (horizontal/vertical

outlet)*/**

H892003

* suitable for use with urinals Golem and Livo

plastic siphon (horizontal/vertical

outlet)*/**

URINAL DOMINO

** SPECIAL line

Must be equipped with an external flushing valve

(either pressure- or electromagnetic type).
