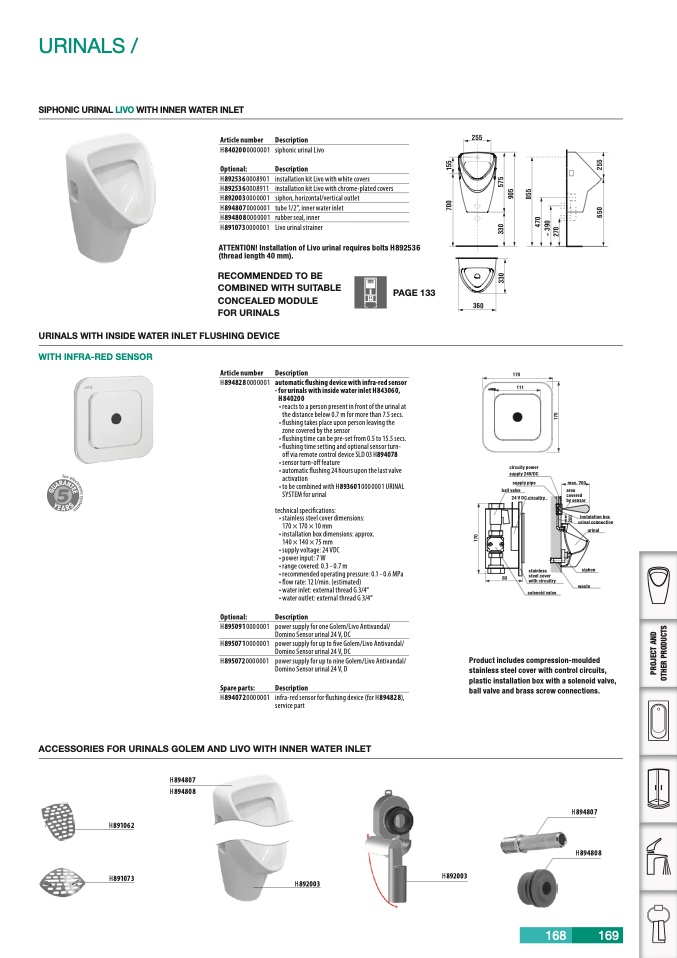

URINALS /

SIPHONIC URINAL LIVO WITH INNER WATER INLET

Article number

H8402000000001

Optional:

H8925360008901

H 89253 6 000 8911

H8920030000001

H8948070000001

H8948080000001

H8910730000001

Description

siphonic urinal Livo

Description

installation kit Livo with white covers

installation kit Livo with chrome-plated covers

siphon, horizontal/vertical outlet

tube 1/2”, inner water inlet

rubber seal, inner

Livo urinal strainer

RECOMMENDED TO BE

COMBINED WITH SUITABLE

CONCEALED MODULE

FOR URINALS

URINALS WITH INSIDE WATER INLET FLUSHING DEVICE

PAGE 133

WITH INFRA-RED SENSOR

ACCESSORIES FOR URINALS GOLEM AND LIVO WITH INNER WATER INLET

H891062

H891073

H892003

H892003

H894807

H 89480 8

ATTENTION! Installation of Livo urinal requires bolts H892536

(thread length 40 mm).

Article number

H8948280000001

Description

automatic flushing device with infra-red sensor

- for urinals with inside water inlet H 84306 0,

H840200

• reacts to a person present in front of the urinal at

the distance below 0.7 m for more than 7.5 secs.

• flushing takes place upon person leaving the

zone covered by the sensor

• flushing time can be pre-set from 0.5 to 15.5 secs.

• flushing time setting and optional sensor turn-

off via remote control device SLD 03 H894078

• sensor turn-off feature

• automatic flushing 24 hours upon the last valve

activation

• to be combined with H8936010000001 URINAL

SYSTEM for urinal

technical specifications:

• stainless steel cover dimensions:

170 × 170 × 10 mm

• installation box dimensions: approx.

140 × 140 × 75 mm

• supply voltage: 24 VDC

• power input: 7 W

• range covered: 0.3 - 0.7 m

• recommended operating pressure: 0.1 - 0.6 MPa

• flow rate: 12 l/min. (estimated)

• water inlet: external thread G 3/4“

• water outlet: external thread G 3/4“

Description

power supply for one Golem/Livo Antivandal/

Domino Sensor urinal 24 V, DC

power supply for up to five Golem/Livo Antivandal/

Domino Sensor urinal 24 V, DC

power supply for up to nine Golem/Livo Antivandal/

Domino Sensor urinal 24 V, D

Description

infra-red sensor for flushing device (for H894828),

service part

Optional:

H8950910000001

H8950710000001

H8950720000001

Spare parts:

H8940720000001

Product includes compression-moulded

stainless steel cover with control circuits,

plastic installation box with a solenoid valve,

ball valve and brass screw connections.

H894807

H 89480 8

circuity power

supply 24V/DC

supply pipe

ball valve

24 V DC circuitry

stainless

steel cover

with circuitry

selenoid valve

max. 700

area

covered

by sensor

instalation box

urinal connection

urinal

siphon

waste

P

R

O

J

E

C

T

A

N

D

O

T

H

E

R

P

R

O

D

U

C

T

S
