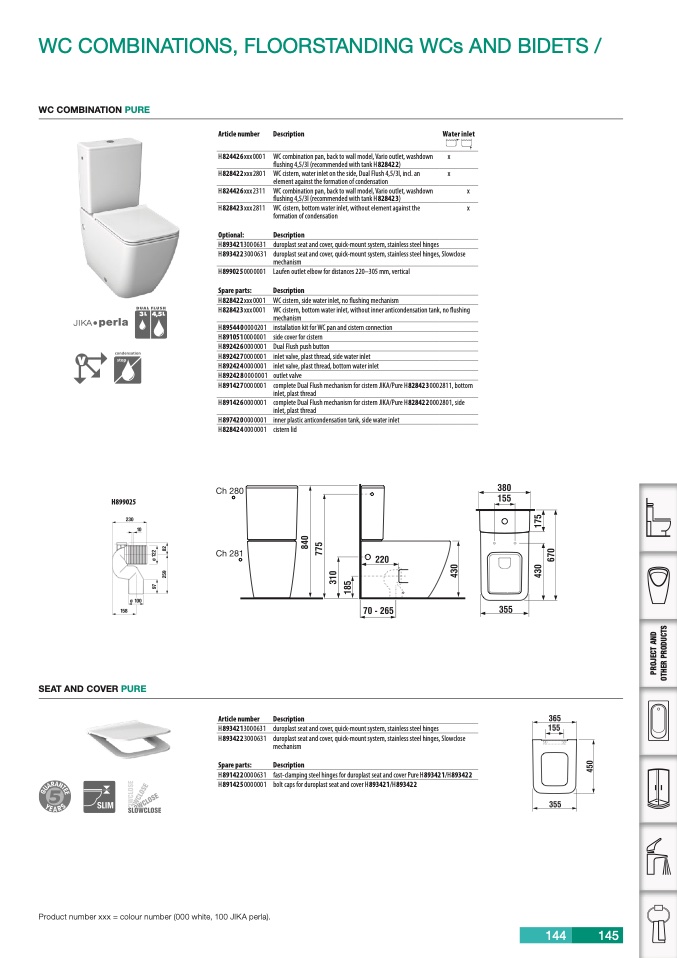

WC COMBINATIONS, FLOORSTANDING WCs AND BIDETS /

WC COMBINATION PURE

Article number

H824426xxx0001

H828422xxx2801

H824426xxx2311

H 82842 3 xxx 2811

Optional:

H8934213000631

H8934223000631

H8990250000001

Spare parts:

H828422xxx0001

H828423xxx0001

H8954400000201

H8910510000001

H8924260000001

H8924270000001

H8924240000001

H8924280000001

H8914270000001

H8914260000001

H8974200000001

H8284240000001

Description

WC combination pan, back to wall model, Vario outlet, washdown

flushing 4,5/3l (recommended with tank H 82842 2)

WC cistern, water inlet on the side, Dual Flush 4,5/3l, incl. an

element against the formation of condensation

WC combination pan, back to wall model, Vario outlet, washdown

flushing 4,5/3l (recommended with tank H 82842 3)

WC cistern, bottom water inlet, without element against the

formation of condensation

Description

duroplast seat and cover, quick-mount system, stainless steel hinges

Water inlet

x

x

x

x

duroplast seat and cover, quick-mount system, stainless steel hinges, Slowclose

mechanism

Laufen outlet elbow for distances 220–305 mm, vertical

Description

WC cistern, side water inlet, no flushing mechanism

V

WC cistern, bottom water inlet, without inner anticondensation tank, no flushing

mechanism

installation kit for WC pan and cistern connection

side cover for cistern

Dual Flush push button

inlet valve, plast thread, side water inlet

inlet valve, plast thread, bottom water inlet

outlet valve

complete Dual Flush mechanism for cistern JIKA/Pure H8284230002811, bottom

inlet, plast thread

complete Dual Flush mechanism for cistern JIKA/Pure H8284220002801, side

inlet, plast thread

inner plastic anticondensation tank, side water inlet

cistern lid

H899025

SEAT AND COVER PURE

Article number

H8934213000631

H8934223000631

Spare parts:

H8914220000631

H8914250000001

Description

duroplast seat and cover, quick-mount system, stainless steel hinges

duroplast seat and cover, quick-mount system, stainless steel hinges, Slowclose

mechanism

Description

fast-clamping steel hinges for duroplast seat and cover Pure H893421/H893422

bolt caps for duroplast seat and cover H893421/H893422

Product number xxx = colour number (000 white, 100 JIKA perla).
