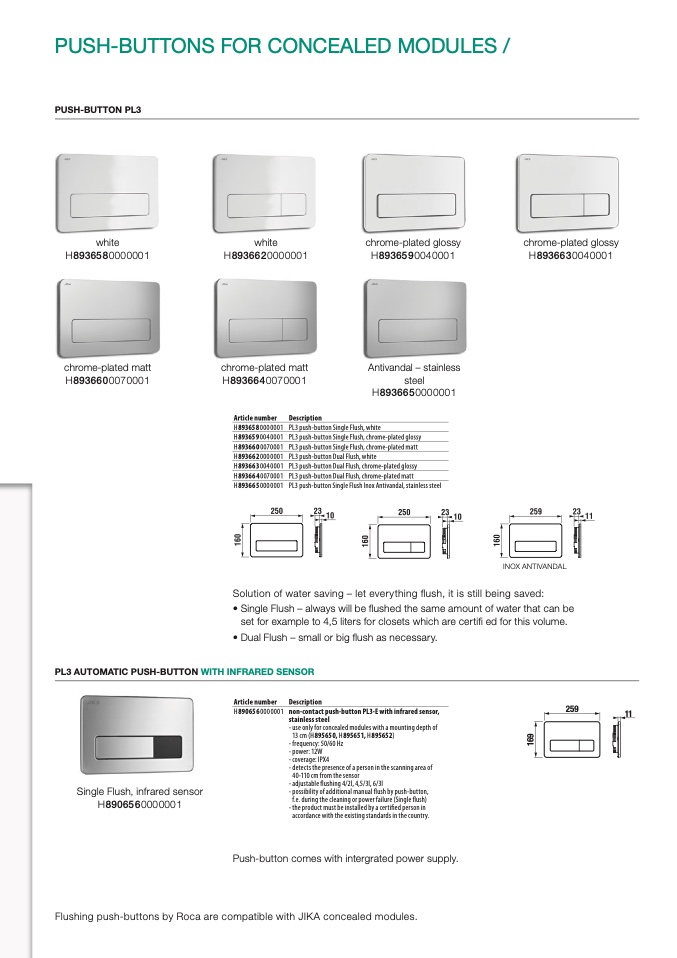

PUSH-BUTTONS FOR CONCEALED MODULES /

PUSH-BUTTON PL3

white

H8936580000001

chrome-plated matt

H8936600070001

white

H8936620000001

chrome-plated matt

H8936640070001

chrome-plated glossy

H8936590040001

Antivandal – stainless

steel

H8936650000001

chrome-plated glossy

H8936630040001

PL3 AUTOMATIC PUSH-BUTTON WITH INFRARED SENSOR

Single Flush, infrared sensor

H8906560000001

Article number

H8936580000001

H8936590040001

H8936600070001

H8936620000001

H8936630040001

H8936640070001

H8936650000001

Description

PL3 push-button Single Flush, white

PL3 push-button Single Flush, chrome-plated glossy

PL3 push-button Single Flush, chrome-plated matt

PL3 push-button Dual Flush, white

PL3 push-button Dual Flush, chrome-plated glossy

PL3 push-button Dual Flush, chrome-plated matt

PL3 push-button Single Flush Inox Antivandal, stainless steel

Solution of water saving – let everything flush, it is still being saved:

• Single Flush – always will be flushed the same amount of water that can be

set for example to 4,5 liters for closets which are certifi ed for this volume.

• Dual Flush – small or big flush as necessary.

Article number

H8906560000001

Description

non-contact push-button PL3-E with infrared sensor,

stainless steel

- use only for concealed modules with a mounting depth of

13 cm (H895650, H895651, H895652)

- frequency: 50/60 Hz

- power: 12W

- coverage: IPX4

- detects the presence of a person in the scanning area of

40-110 cm from the sensor

- adjustable flushing 4/2l, 4,5/3l, 6/3l

- possibility of additional manual flush by push-button,

f.e. during the cleaning or power failure (Single flush)

- the product must be installed by a certified person in

accordance with the existing standards in the country.

259

11

Push-button comes with intergrated power supply.

Flushing push-buttons by Roca are compatible with JIKA concealed modules.

INOX ANTIVANDAL

1

6

9
