106

PLANIT

bathroom catalogue

107

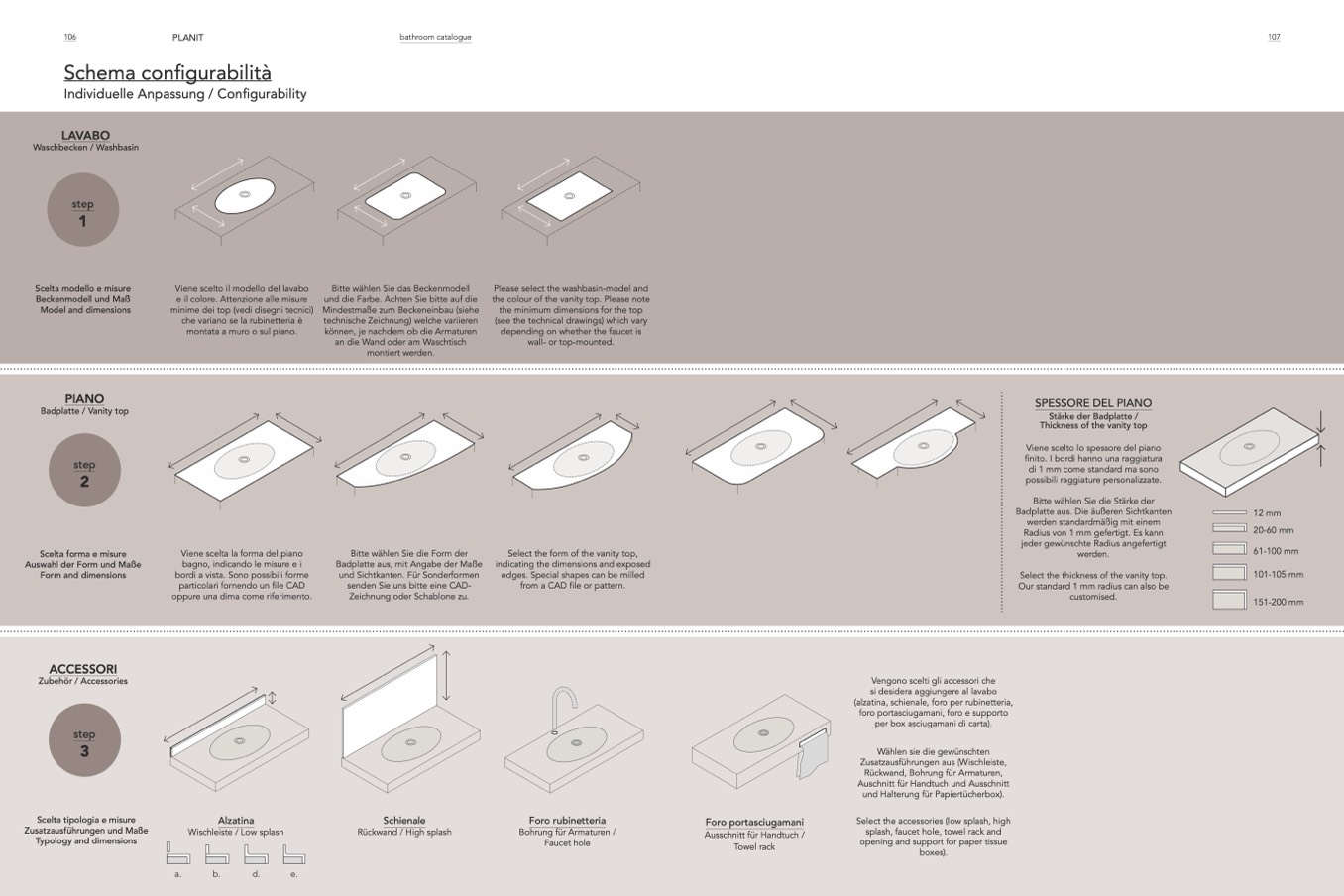

Schema configurabilità

Individuelle Anpassung / Configurability

LAVABO

Waschbecken / Washbasin

step

1

Scelta modello e misure

Beckenmodell und Maß

Model and dimensions

Viene scelto il modello del lavabo

e il colore. Attenzione alle misure

minime dei top (vedi disegni tecnici)

che variano se la rubinetteria è

montata a muro o sul piano.

Bitte wählen Sie das Beckenmodell

und die Farbe. Achten Sie bitte auf die

Mindestmaße zum Beckeneinbau (siehe

technische Zeichnung) welche variieren

können, je nachdem ob die Armaturen

an die Wand oder am Waschtisch

montiert werden.

Please select the washbasin-model and

the colour of the vanity top. Please note

the minimum dimensions for the top

(see the technical drawings) which vary

depending on whether the faucet is

wall- or top-mounted.

PIANO

SPESSORE DEL PIANO

Stärke der Badplatte /

Thickness of the vanity top

Viene scelto lo spessore del piano

finito. I bordi hanno una raggiatura

di 1 mm come standard ma sono

possibili raggiature personalizzate.

Bitte wählen Sie die Stärke der

Badplatte aus. Die äußeren Sichtkanten

werden standardmäßig mit einem

Radius von 1 mm gefertigt. Es kann

jeder gewünschte Radius angefertigt

werden.

Select the thickness of the vanity top.

Our standard 1 mm radius can also be

customised.

Badplatte / Vanity top

step

2

Scelta forma e misure

Auswahl der Form und Maße

Form and dimensions

Viene scelta la forma del piano

bagno, indicando le misure e i

bordi a vista. Sono possibili forme

particolari fornendo un file CAD

oppure una dima come riferimento.

Bitte wählen Sie die Form der

Badplatte aus, mit Angabe der Maße

und Sichtkanten. Für Sonderformen

senden Sie uns bitte eine CAD-

Zeichnung oder Schablone zu.

Select the form of the vanity top,

indicating the dimensions and exposed

edges. Special shapes can be milled

from a CAD file or pattern.

12 mm

20-60 mm

61-100 mm

101-105 mm

151-200 mm

ACCESSORI

Zubehör / Accessories

step

3

Scelta tipologia e misure

Zusatzausführungen und Maße

Typology and dimensions

Alzatina

Wischleiste / Low splash

Schienale

Rückwand / High splash

Foro rubinetteria

Bohrung für Armaturen /

Faucet hole

Foro portasciugamani

Ausschnitt für Handtuch /

Towel rack

Vengono scelti gli accessori che

si desidera aggiungere al lavabo

(alzatina, schienale, foro per rubinetteria,

foro portasciugamani, foro e supporto

per box asciugamani di carta).

Wählen sie die gewünschten

Zusatzausführungen aus (Wischleiste,

Rückwand, Bohrung für Armaturen,

Auschnitt für Handtuch und Ausschnitt

und Halterung für Papiertücherbox).

Select the accessories (low splash, high

splash, faucet hole, towel rack and

opening and support for paper tissue

boxes).

a.

b.

d.

e.
