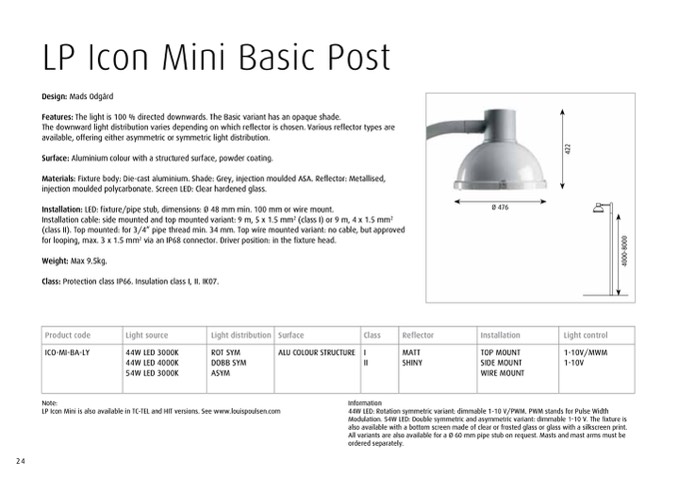

LP Icon Mini Basic Post

Design: Mads Odgård

Features: The light is 100 % directed downwards. The Basic variant has an opaque shade.

The downward light distribution varies depending on which reflector is chosen. Various reflector types are

available, offering either asymmetric or symmetric light distribution.

Surface: Aluminium colour with a structured surface, powder coating.

Materials: Fixture body: Die-cast aluminium. Shade: Grey, injection moulded ASA. Reflector: Metallised,

injection moulded polycarbonate. Screen LED: Clear hardened glass.

Installation: LED: fixture/pipe stub, dimensions: Ø 48 mm min. 100 mm or wire mount.

Installation cable: side mounted and top mounted variant: 9 m, 5 x 1.5 mm

2

(class I) or 9 m, 4 x 1.5 mm

2

(class II). Top mounted: for 3/4” pipe thread min. 34 mm. Top wire mounted variant: no cable, but approved

for looping, max. 3 x 1.5 mm

2

via an IP68 connector. Driver position: in the fixture head.

Ø 476

Weight: Max 9.5kg.

Class: Protection class IP66. Insulation class I, II. IK07.

Product code

Light source

Light distribution

Surface

Class

Reflector

Installation

Light control

ICO-MI-BA-LY

44W LED 3000K

44W LED 4000K

54W LED 3000K

ROT SYM

DOBB SYM

ASYM

ALU COLOUR STRUCTURE

I

II

MATT

SHINY

TOP MOUNT

SIDE MOUNT

WIRE MOUNT

1-10V/MWM

1-10V

24

Note:

LP Icon Mini is also available in TC-TEL and HIT versions. See www.louispoulsen.com

Information

44W LED: Rotation symmetric variant: dimmable 1-10 V/PWM. PWM stands for Pulse Width

Modulation. 54W LED: Double symmetric and asymmetric variant: dimmable 1-10 V. The fixture is

also available with a bottom screen made of clear or frosted glass or glass with a silkscreen print.

All variants are also available for a Ø 60 mm pipe stub on request. Masts and mast arms must be

ordered separately.

4

0

0

0

-

8

0

0

0

4

2

2
