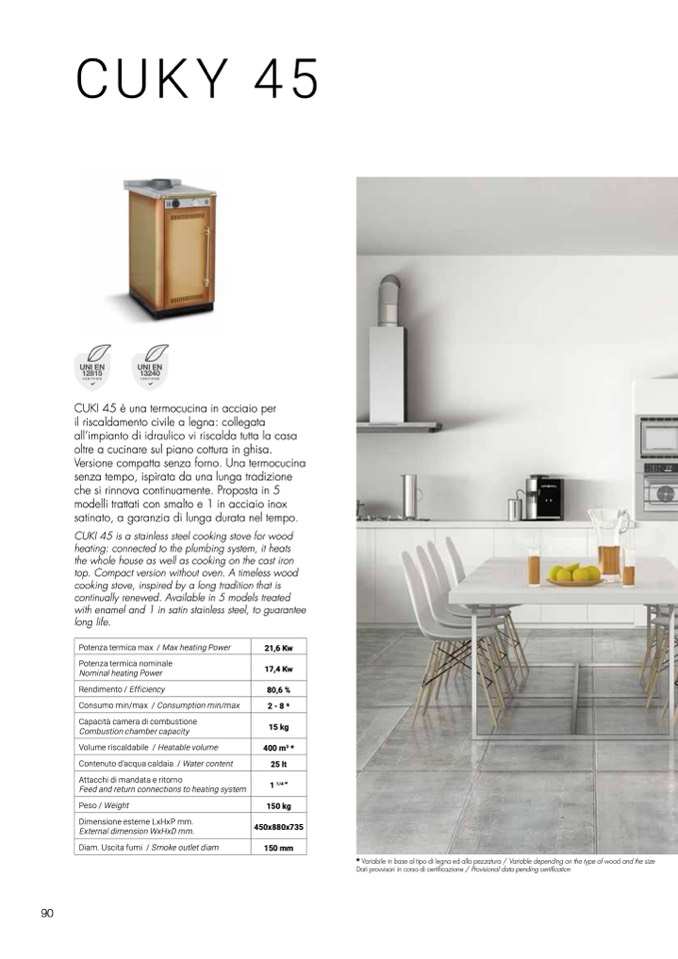

CUKI 45 is a stainless steel cooking stove for wood
heating: connected to the plumbing system, it heats
the whole house as well as cooking on the cast iron
top. Compact version without oven. A timeless wood
cooking stove, inspired by a long tradition that is
continually renewed. Available in 5 models treated
with enamel and 1 in satin stainless steel, to guarantee
long life.
Potenza termica max / Max heating Power
21,6 Kw
Potenza termica nominale
Nominal heating Power
17,4 Kw
Rendimento / Efficiency
80,6 %
Consumo min/max / Consumption min/max
2 -8 *
Capacità camera di combustione
Combustion chamber capacity
15 kg
Volume riscaldabile / Heatable volume
400 m
3
*
Contenuto d’acqua caldaia / Water content
25 lt
Attacchi di mandata e ritorno
Feed and return connections to heating system
1
1/4
“
Peso / Weight
150 kg
Dimensione esterne LxHxP mm.
External dimension WxHxD mm.
450x880x735
Diam. Uscita fumi / Smoke outlet diam
150 mm
* Variabile in base al tipo di legna ed alla pezzatura / Variable depending on the type of wood and the size
Dati provvisori in corso di certificazione / Provisional data pending certification
