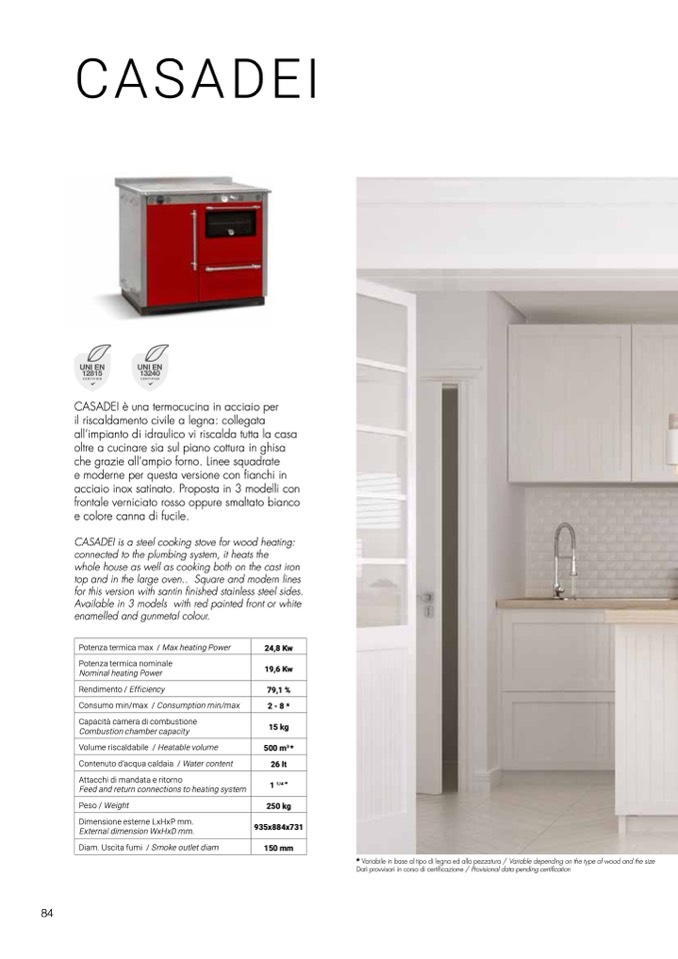

CASADEI

UNI EN

UNI EN

12815

13240

CASADEI è una termocucina in acciaio per

il riscaldamento civile a legna: collegata

all’impianto di idraulico vi riscalda tutta la casa

oltre a cucinare sia sul piano cottura in ghisa

che grazie all’ampio forno. Linee squadrate

e moderne per questa versione con fianchi in

acciaio inox satinato. Proposta in 3 modelli con

frontale verniciato rosso oppure smaltato bianco

e colore canna di fucile.

CASADEI is a steel cooking stove for wood heating:

connected to the plumbing system, it heats the

whole house as well as cooking both on the cast iron

top and in the large oven.. Square and modern lines

for this version with santin finished stainless steel sides.

Available in 3 models with red painted front or white

enamelled and gunmetal colour.

Potenza termica max / Max heating Power

24,8 Kw

Potenza termica nominale

Nominal heating Power

19,6 Kw

Rendimento / Efficiency

79,1 %

Consumo min/max / Consumption min/max

2 -8 *

Capacità camera di combustione

Combustion chamber capacity

15 kg

Volume riscaldabile / Heatable volume

500 m

3

*

Contenuto d’acqua caldaia / Water content

26 lt

Attacchi di mandata e ritorno

Feed and return connections to heating system

1

1/4

Peso / Weight

250 kg

Dimensione esterne LxHxP mm.

External dimension WxHxD mm.

935x884x731

Diam. Uscita fumi / Smoke outlet diam

150 mm

84

* Variabile in base al tipo di legna ed alla pezzatura / Variable depending on the type of wood and the size

Dati provvisori in corso di certificazione / Provisional data pending certification
