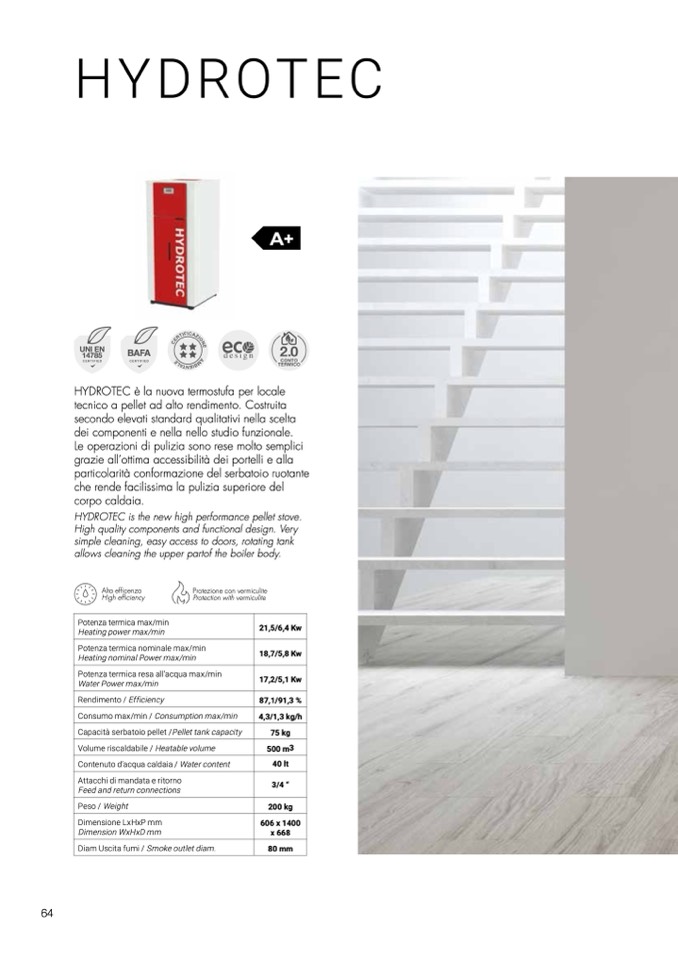

HYDROTEC

A+

UNI EN

14785

HYDROTEC è la nuova termostufa per locale

tecnico a pellet ad alto rendimento. Costruita

secondo elevati standard qualitativi nella scelta

dei componenti e nella nello studio funzionale.

Le operazioni di pulizia sono rese molto semplici

grazie all’ottima accessibilità dei portelli e alla

particolarità conformazione del serbatoio ruotante

che rende facilissima la pulizia superiore del

corpo caldaia.

HYDROTEC is the new high performance pellet stove.

High quality components and functional design. Very

simple cleaning, easy access to doors, rotating tank

allows cleaning the upper partof the boiler body.

BAFA

Alta efficenza

Protezione con vermiculite

High efficiency

Protection with vermiculite

Potenza termica max/min

Heating power max/min

21,5/6,4 Kw

Potenza termica nominale max/min

Heating nominal Power max/min

18,7/5,8 Kw

Potenza termica resa all’acqua max/min

Water Power max/min

17,2/5,1 Kw

Rendimento / Efficiency

87,1/91,3 %

Consumo max/min / Consumption max/min

4,3/1,3 kg/h

Capacità serbatoio pellet /Pellet tank capacity

75 kg

Volume riscaldabile / Heatable volume

500 m3

Contenuto d’acqua caldaia / Water content

40 lt

Attacchi di mandata e ritorno

Feed and return connections

3/4 “

Peso / Weight

200 kg

Dimensione LxHxP mm

Dimension WxHxD mm

606 x 1400

x 668

Diam Uscita fumi / Smoke outlet diam.

80 mm

64
