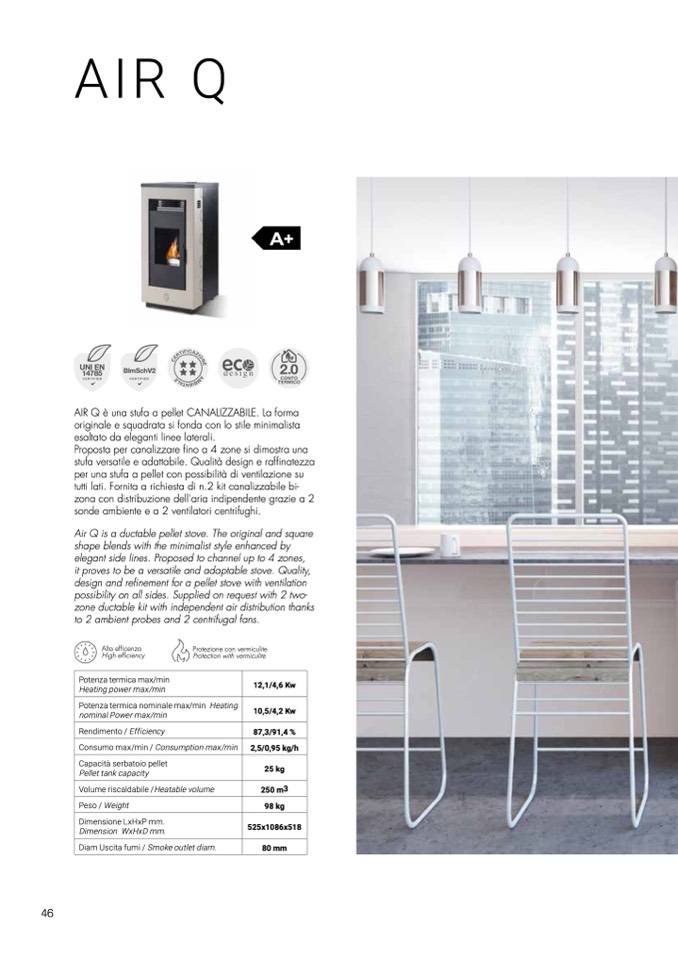

AIR Q

A+

UNI EN

14785

AIR Q è una stufa a pellet CANALIZZABILE. La forma

originale e squadrata si fonda con lo stile minimalista

esaltato da eleganti linee laterali.

Proposta per canalizzare fino a 4 zone si dimostra una

stufa versatile e adattabile. Qualità design e raffinatezza

per una stufa a pellet con possibilità di ventilazione su

tutti lati. Fornita a richiesta di n.2 kit canalizzabile bi-

zona con distribuzione dell’aria indipendente grazie a 2

sonde ambiente e a 2 ventilatori centrifughi.

Air Q is a ductable pellet stove. The original and square

shape blends with the minimalist style enhanced by

elegant side lines. Proposed to channel up to 4 zones,

it proves to be a versatile and adaptable stove. Quality,

design and refinement for a pellet stove with ventilation

possibility on all sides. Supplied on request with 2 two-

zone ductable kit with independent air distribution thanks

to 2 ambient probes and 2 centrifugal fans.

BlmSchV2

Alta efficenza

Protezione con vermiculite

High efficiency

Protection with vermiculite

Potenza termica max/min

Heating power max/min

12,1/4,6 Kw

Potenza termica nominale max/min Heating

nominal Power max/min

10,5/4,2 Kw

Rendimento / Efficiency

87,3/91,4 %

Consumo max/min / Consumption max/min

2,5/0,95 kg/h

Capacità serbatoio pellet

Pellet tank capacity

25 kg

Volume riscaldabile /Heatable volume

250 m3

Peso / Weight

98 kg

Dimensione LxHxP mm.

Dimension WxHxD mm.

525x1086x518

Diam Uscita fumi / Smoke outlet diam.

80 mm
