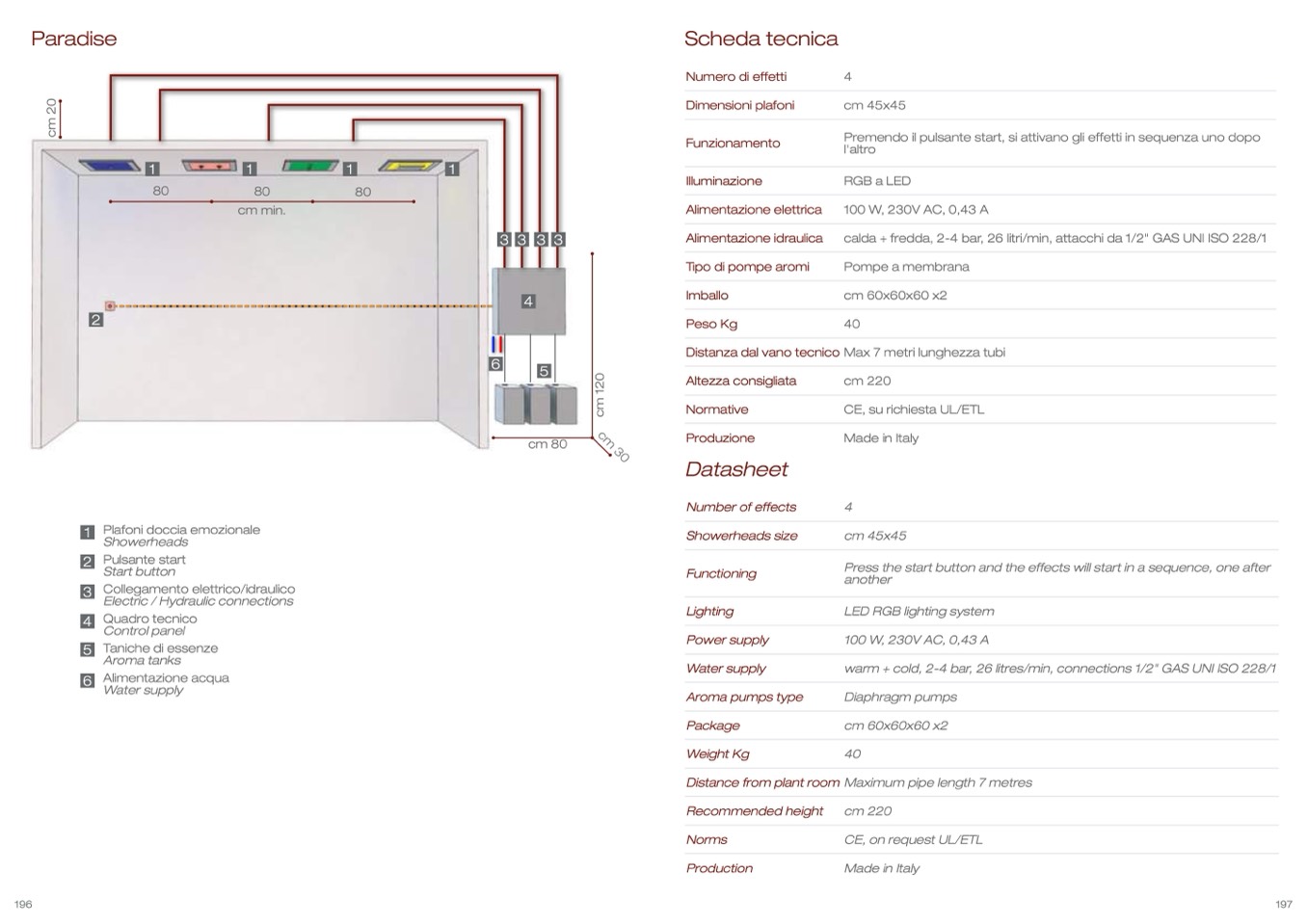

Paradise

Scheda tecnica

1

1

1

1

Numero di effetti

Dimensioni plafoni

Funzionamento

Illuminazione

Alimentazione elettrica

Alimentazione idraulica

Tipo di pompe aromi

Imballo

Peso Kg

Distanza dal vano tecnico

Altezza consigliata

Normative

Produzione

Datasheet

Number of effects

Showerheads size

Functioning

Lighting

Power supply

Water supply

Aroma pumps type

Package

Weight Kg

Distance from plant room

Recommended height

Norms

Production

4

cm 45x45

Premendo il pulsante start, si attivano gli effetti in sequenza uno dopo

l'altro

RGB a LED

100 W, 230V AC, 0,43 A

calda + fredda, 2-4 bar, 26 litri/min, attacchi da 1/2" GAS UNI ISO 228/1

Pompe a membrana

cm 60x60x60 x2

40

Max 7 metri lunghezza tubi

cm 220

CE, su richiesta UL/ETL

Made in Italy

4

cm 45x45

Press the start button and the effects will start in a sequence, one after

another

LED RGB lighting system

100 W, 230V AC, 0,43 A

warm + cold, 2-4 bar, 26 litres/min, connections 1/2" GAS UNI ISO 228/1

Diaphragm pumps

cm 60x60x60 x2

40

Maximum pipe length 7 metres

cm 220

CE, on request UL/ETL

Made in Italy

3

3

3

3

2

4

6

5

1

2

3

4

5

6

Plafoni doccia emozionale

Showerheads

Pulsante start

Start button

Collegamento elettrico/idraulico

Electric / Hydraulic connections

Quadro tecnico

Control panel

Taniche di essenze

Aroma tanks

Alimentazione acqua

Water supply

196

197

c

m

1

2

0

c

m

2

0

cm 30

80

80

80

cm min.

cm 80
