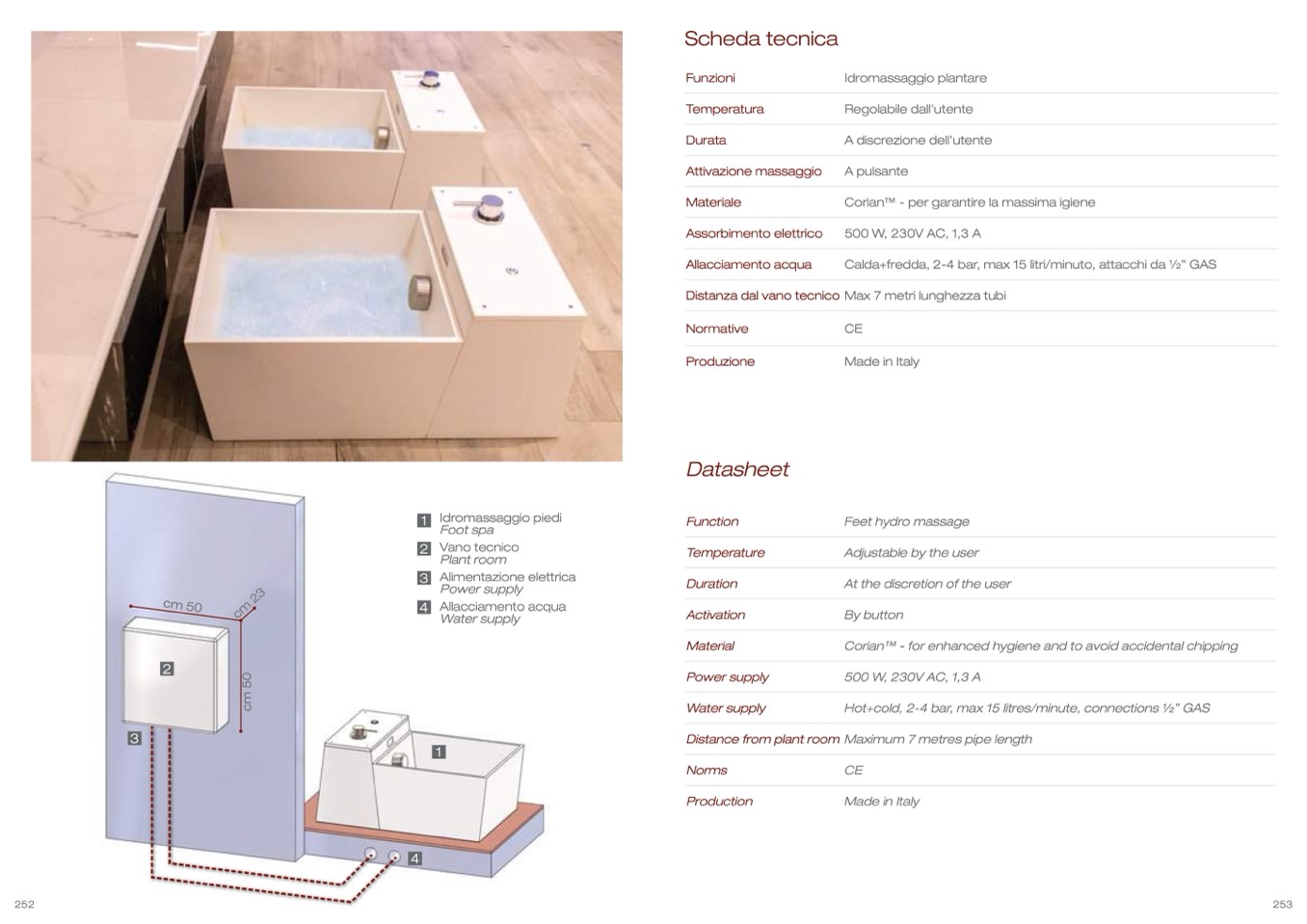

Scheda tecnica

1

2

3

4

Idromassaggio piedi

Foot spa

Vano tecnico

Plant room

Alimentazione elettrica

Power supply

Allacciamento acqua

Water supply

1

Funzioni

Temperatura

Durata

Attivazione massaggio

Materiale

Assorbimento elettrico

Allacciamento acqua

Distanza dal vano tecnico

Normative

Produzione

Datasheet

Function

Temperature

Duration

Activation

Material

Power supply

Water supply

Distance from plant room

Norms

Production

Idromassaggio plantare

Regolabile dall’utente

A discrezione dell’utente

A pulsante

CorianTM - per garantire la massima igiene

500 W, 230V AC, 1,3 A

Calda+fredda, 2-4 bar, max 15 litri/minuto, attacchi da 1⁄2” GAS

Max 7 metri lunghezza tubi

CE

Made in Italy

Feet hydro massage

Adjustable by the user

At the discretion of the user

By button

CorianTM - for enhanced hygiene and to avoid accidental chipping

500 W, 230V AC, 1,3 A

Hot+cold, 2-4 bar, max 15 litres/minute, connections 1⁄2” GAS

Maximum 7 metres pipe length

CE

Made in Italy

2

3

252

253

4

cm 50

cm 23

c

m

5

0
