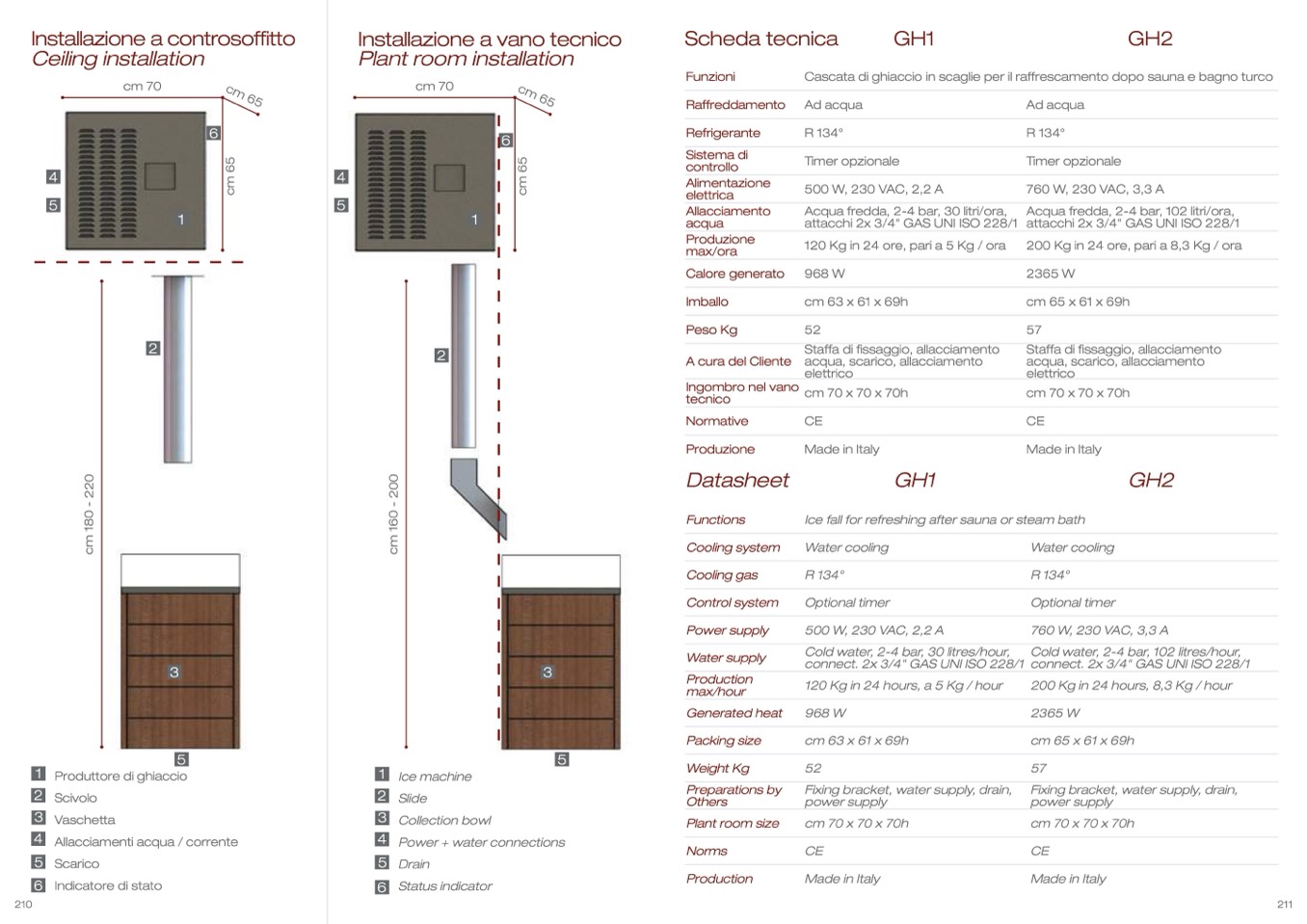

Installazione a controsoffitto

Ceiling installation

cm 70

1

2

6

4

5

Produttore di ghiaccio

Scivolo

Vaschetta

Allacciamenti acqua / corrente

3

5

1

2

3

4

5 Scarico

6 Indicatore di stato

210

Installazione a vano tecnico

Plant room installation

cm 70

1

2

Scheda tecnica

GH1

GH2

Funzioni

Raffreddamento

Refrigerante

Sistema di

controllo

Alimentazione

elettrica

Allacciamento

acqua

Produzione

max/ora

Calore generato

Imballo

Peso Kg

A cura del Cliente

Ingombronelvano

tecnico

Cascata di ghiaccio in scaglie per il raffrescamento dopo sauna e bagno turco

6

Ad acqua

R 134°

Timer opzionale

500 W, 230 VAC, 2,2 A

Acqua fredda, 2-4 bar, 30 litri/ora,

attacchi 2x 3/4" GAS UNI ISO 228/1

120 Kg in 24 ore, pari a 5 Kg / ora

968 W

cm 63 x 61 x 69h

52

Staffa di fissaggio, allacciamento

acqua, scarico, allacciamento

elettrico

Ad acqua

R 134°

Timer opzionale

760 W, 230 VAC, 3,3 A

Acqua fredda, 2-4 bar, 102 litri/ora,

attacchi 2x 3/4" GAS UNI ISO 228/1

200 Kg in 24 ore, pari a 8,3 Kg / ora

2365 W

cm 65 x 61 x 69h

57

Staffa di fissaggio, allacciamento

acqua, scarico, allacciamento

elettrico

cm70x70x70h

CE

Made in Italy

4

5

cm70x70x70h

Normative

CE

Produzione

Made in Italy

Datasheet

GH1

GH2

Functions

Ice fall for refreshing after sauna or steam bath

Cooling system

Water cooling

Cooling gas

R 134°

Control system

Optional timer

Water cooling

R 134°

Optional timer

3

5

Power supply

Water supply

Production

max/hour

Generated heat

Packing size

Weight Kg

Preparations by

Others

Plant room size

Norms

Production

500 W, 230 VAC, 2,2 A

Cold water, 2-4 bar, 30 litres/hour,

connect. 2x 3/4" GAS UNI ISO 228/1

120 Kg in 24 hours, a 5 Kg / hour

968 W

cm 63 x 61 x 69h

52

Fixing bracket, water supply, drain,

power supply

cm 70 x 70 x 70h

CE

Made in Italy

760 W, 230 VAC, 3,3 A

Cold water, 2-4 bar, 102 litres/hour,

connect. 2x 3/4" GAS UNI ISO 228/1

200 Kg in 24 hours, 8,3 Kg / hour

2365 W

cm 65 x 61 x 69h

57

Fixing bracket, water supply, drain,

power supply

cm 70 x 70 x 70h

CE

Made in Italy

1

2

3

4

5 Drain

Status indicator

Ice machine

Slide

Collection bowl

Power + water connections
