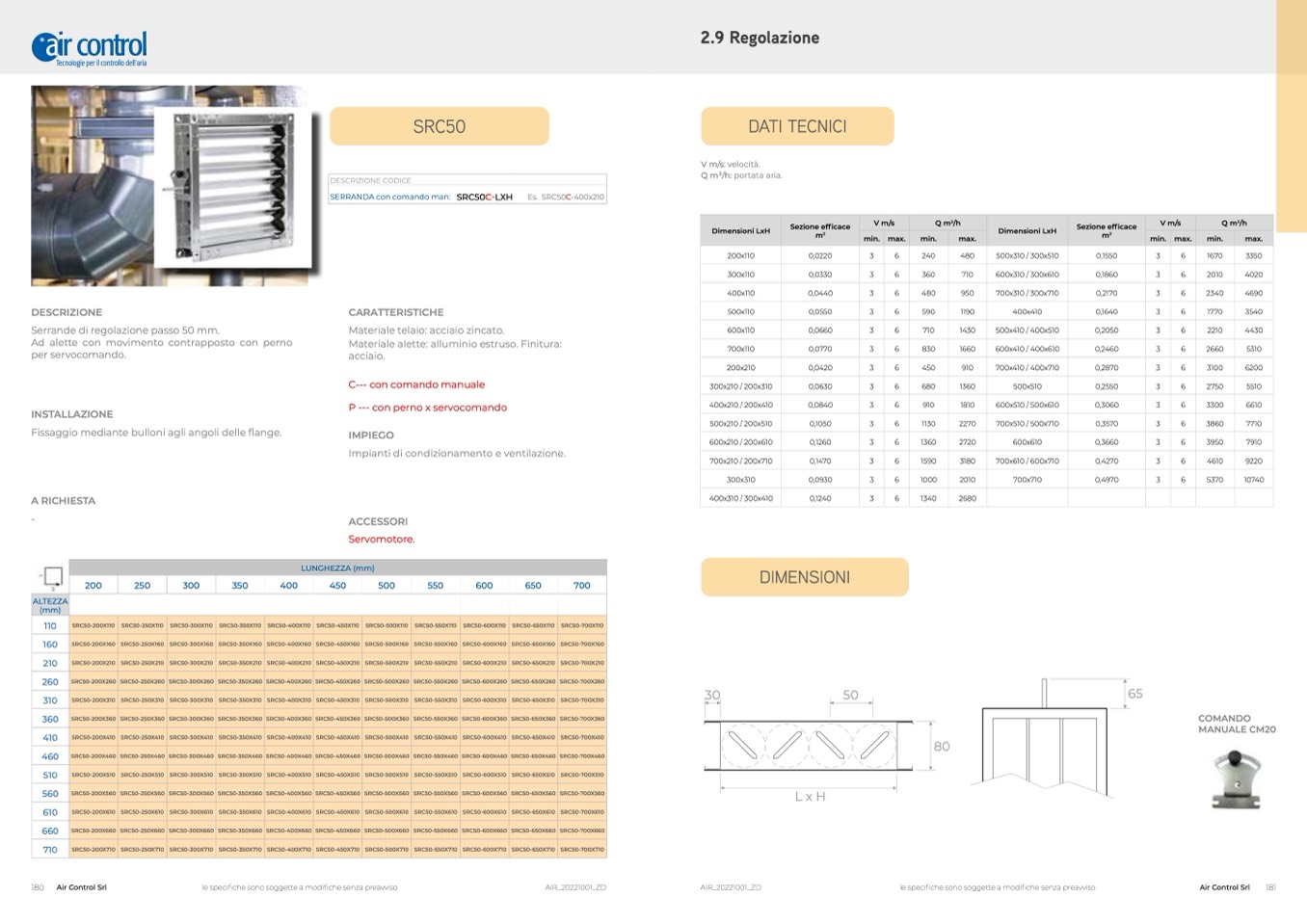

2.9 Regolazione
SRC50
DATI TECNICI
DESCRIZIONE CODICE
SERRANDA con comando man:
CARATTERISTICHE
SRC50C-LXH
Es. SRC50C-400x210
V m/s: velocità.
Q m3/h: portata aria.
Dimensioni LxH
200x110
300x110
400x110
500x110
600x110
700x110
200x210
300x210 / 200x310
400x210 / 200x410
500x210 / 200x510
600x210 / 200x610
700x210 / 200x710
300x310
400x310 / 300x410
Sezione efficace
m
2
0,0220
0,0330
0,0440
0,0550
0,0660
0,0770
0,0420
0,0630
0,0840
0,1050
0,1260
0,1470
0,0930
0,1240
V m/s
min. max.
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
Q m
3
/h
min.
max.
240
480
360
710
480
950
590
1190
710
1430
830
1660
450
910
680
1360
910
1810
1130
2270
1360
2720
1590
3180
1000
2010
1340
2680
Sezione efficace
m
2
V m/s
min. max.
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
3
6
Q m
3
/h
min.
max.
1670
3350
2010
4020
2340
4690
1770
3540
2210
4430
2660
5310
3100
6200
2750
5510
3300
6610
3860
7710
3950
7910
4610
9220
5370
10740
DESCRIZIONE
Serrande di regolazione passo 50 mm.
Ad alette con movimento contrapposto con perno
per servocomando.
INSTALLAZIONE
Fissaggio mediante bulloni agli angoli delle
flange.
Materiale telaio: acciaio zincato.
Materiale alette: alluminio estruso. Finitura:
acciaio.
C--- con comando manuale
P --- con perno x servocomando
IMPIEGO
Impianti di condizionamento e ventilazione.
Dimensioni LxH
500x310 / 300x510
0,1550
600x310 / 300x610
0,1860
700x310 / 300x710
0,2170
400x410
0,1640
500x410 / 400x510
0,2050
600x410 / 400x610
0,2460
700x410 / 400x710
0,2870
500x510
0,2550
600x510 / 500x610
0,3060
700x510 / 500x710
0,3570
600x610
0,3660
700x610 / 600x710
0,4270
700x710
0,4970
A RICHIESTA
-
ALTEZZA
(mm)
110
160
210
260
310
360
410
460
510
560
610
660
710
200
250
300
350
400
ACCESSORI
Servomotore.
LUNGHEZZA (mm)
450
500
550
600
650
700
DIMENSIONI
50
SRC50-200X110 SRC50-250X110 SRC50-300X110 SRC50-350X110 SRC50-400X110 SRC50-450X110 SRC50-500X110 SRC50-550X110 SRC50-600X110 SRC50-650X110 SRC50-700X110
SRC50-200X160 SRC50-250X160 SRC50-300X160 SRC50-350X160 SRC50-400X160 SRC50-450X160 SRC50-500X160 SRC50-550X160 SRC50-600X160 SRC50-650X160 SRC50-700X160
SRC50-200X210 SRC50-250X210 SRC50-300X210 SRC50-350X210 SRC50-400X210 SRC50-450X210 SRC50-500X210 SRC50-550X210 SRC50-600X210 SRC50-650X210 SRC50-700X210
SRC50-200X260 SRC50-250X260 SRC50-300X260 SRC50-350X260 SRC50-400X260 SRC50-450X260 SRC50-500X260 SRC50-550X260 SRC50-600X260 SRC50-650X260 SRC50-700X260
SRC50-200X310 SRC50-250X310 SRC50-300X310 SRC50-350X310 SRC50-400X310 SRC50-450X310 SRC50-500X310 SRC50-550X310 SRC50-600X310 SRC50-650X310 SRC50-700X310
SRC50-200X360 SRC50-250X360 SRC50-300X360 SRC50-350X360 SRC50-400X360 SRC50-450X360 SRC50-500X360 SRC50-550X360 SRC50-600X360 SRC50-650X360 SRC50-700X360
SRC50-200X410 SRC50-250X410 SRC50-300X410 SRC50-350X410 SRC50-400X410 SRC50-450X410 SRC50-500X410 SRC50-550X410 SRC50-600X410 SRC50-650X410 SRC50-700X410
SRC50-200X460 SRC50-250X460 SRC50-300X460 SRC50-350X460 SRC50-400X460 SRC50-450X460 SRC50-500X460 SRC50-550X460 SRC50-600X460 SRC50-650X460 SRC50-700X460
SRC50-200X510 SRC50-250X510 SRC50-300X510 SRC50-350X510 SRC50-400X510 SRC50-450X510 SRC50-500X510 SRC50-550X510 SRC50-600X510 SRC50-650X510 SRC50-700X510
SRC50-200X560 SRC50-250X560 SRC50-300X560 SRC50-350X560 SRC50-400X560 SRC50-450X560 SRC50-500X560 SRC50-550X560 SRC50-600X560 SRC50-650X560 SRC50-700X560
SRC50-200X610 SRC50-250X610 SRC50-300X610 SRC50-350X610 SRC50-400X610 SRC50-450X610 SRC50-500X610 SRC50-550X610 SRC50-600X610 SRC50-650X610 SRC50-700X610
SRC50-200X660 SRC50-250X660 SRC50-300X660 SRC50-350X660 SRC50-400X660 SRC50-450X660 SRC50-500X660 SRC50-550X660 SRC50-600X660 SRC50-650X660 SRC50-700X660
SRC50-200X710 SRC50-250X710 SRC50-300X710 SRC50-350X710 SRC50-400X710 SRC50-450X710 SRC50-500X710 SRC50-550X710 SRC50-600X710 SRC50-650X710 SRC50-700X710
30
65
COMANDO
MANUALE CM20
80
L xH
