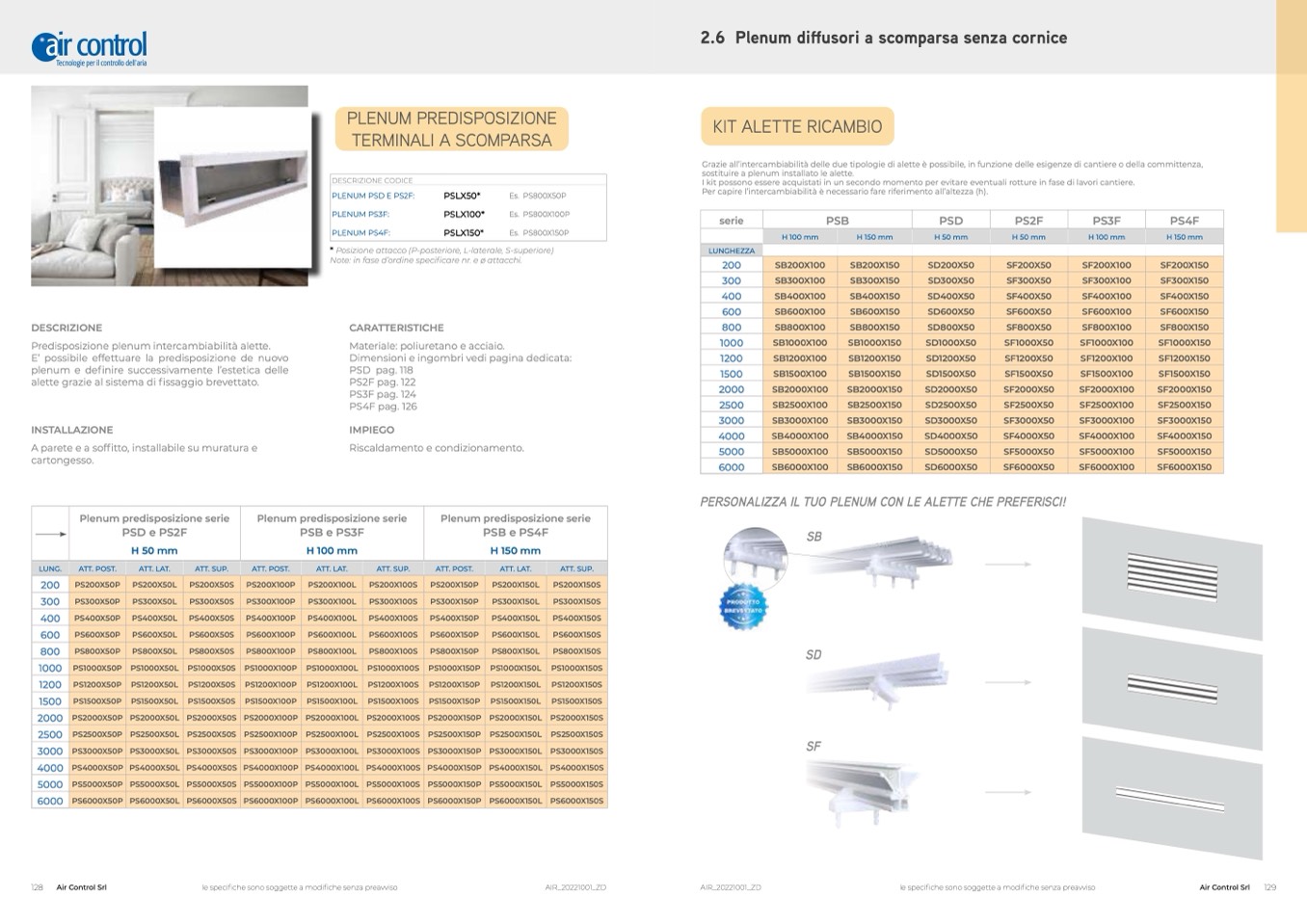

PLENUM PREDISPOSIZIONE
TERMINALI A SCOMPARSA
KIT ALETTE RICAMBIO
Grazie all’intercambiabilità delle due tipologie di alette è possibile, in funzione delle esigenze di cantiere o della committenza,
sostituire a plenum installato le alette.
I kit possono essere acquistati in un secondo momento per evitare eventuali rotture in fase di lavori cantiere.
Per capire l’intercambiabilità è necessario fare riferimento all’altezza (h).
2.6 Plenum diffusori a scomparsa senza cornice
DESCRIZIONE CODICE
PLENUM PSD E PS2F:
PLENUM PS3F:
PLENUM PS4F:
PSLX50*
PSLX100*
PSLX150*
Es. PS800X50P
Es. PS800X100P
Es. PS800X150P
serie
200
300
400
600
PSB
PSD
PS2F
PS3F
PS4F
H 100 mm
H 150 mm
H 50 mm
H 50 mm
H 100 mm
H 150 mm
LUNGHEZZA
* Posizione attacco (P-posteriore, L-laterale, S-superiore)
Note: in fase d’ordine specificare nr. e ø attacchi.
SB200X100
SB200X150
SD200X50
SF200X50
SF200X100
SF200X150
SB300X100
SB300X150
SD300X50
SF300X50
SF300X100
SF300X150
SB400X100
SB400X150
SD400X50
SF400X50
SF400X100
SF400X150
SB600X100
SB600X150
SD600X50
SF600X50
SF600X100
SF600X150
SB800X100
SB800X150
SD800X50
SF800X50
SF800X100
SF800X150
SB1000X100
SB1000X150
SD1000X50
SF1000X50
SF1000X100
SF1000X150
SB1200X100
SB1200X150
SD1200X50
SF1200X50
SF1200X100
SF1200X150
SB1500X100
SB1500X150
SD1500X50
SF1500X50
SF1500X100
SF1500X150
SB2000X100
SB2000X150
SD2000X50
SF2000X50
SF2000X100
SF2000X150
SB2500X100
SB2500X150
SD2500X50
SF2500X50
SF2500X100
SF2500X150
SB3000X100
SB3000X150
SD3000X50
SF3000X50
SF3000X100
SF3000X150
SB4000X100
SB4000X150
SD4000X50
SF4000X50
SF4000X100
SF4000X150
SB5000X100
SB5000X150
SD5000X50
SF5000X50
SF5000X100
SF5000X150
SB6000X100
SB6000X150
SD6000X50
SF6000X50
SF6000X100
SF6000X150
DESCRIZIONE
Predisposizione plenum intercambiabilità alette.
E’ possibile effettuare la predisposizione de nuovo
plenum e definire successivamente l’estetica delle
alette grazie al sistema di fissaggio brevettato.
INSTALLAZIONE
A parete e a soffitto, installabile su muratura e
cartongesso.
200
300
400
600
800
1000
1200
1500
2000
2500
3000
4000
5000
6000
CARATTERISTICHE
800
1500
2000
2500
3000
4000
5000
6000
Materiale: poliuretano e acciaio.
Dimensioni e ingombri vedi pagina dedicata:
1200
1000
PSD pag. 118
PS2F pag. 122
PS3F pag. 124
PS4F pag. 126
IMPIEGO
Riscaldamento e condizionamento.
PERSONALIZZA IL TUO PLENUM CON LE ALETTE CHE PREFERISCI!
SB
SD
SF
Plenum predisposizione serie
PSD e PS2F
H 50 mm
Plenum predisposizione serie
PSB e PS3F
H 100 mm
Plenum predisposizione serie
PSB e PS4F
H 150 mm
LUNG.
ATT. POST.
ATT. LAT.
ATT. SUP.
ATT. POST.
ATT. LAT.
ATT. SUP.
ATT. POST.
ATT. LAT.
ATT. SUP.
PS200X50P
PS200X50L
PS200X50S
PS200X100P
PS200X100L
PS200X100S
PS200X150P
PS200X150L
PS200X150S
PS300X50P
PS300X50L
PS300X50S
PS300X100P
PS300X100L
PS300X100S
PS300X150P
PS300X150L
PS300X150S
PS400X50P
PS400X50L
PS400X50S
PS400X100P
PS400X100L
PS400X100S
PS400X150P
PS400X150L
PS400X150S
PS600X50P
PS600X50L
PS600X50S
PS600X100P
PS600X100L
PS600X100S
PS600X150P
PS600X150L
PS600X150S
PS800X50P
PS800X50L
PS800X50S
PS800X100P
PS800X100L
PS800X100S
PS800X150P
PS800X150L
PS800X150S
PS1000X50P
PS1000X50L
PS1000X50S
PS1000X100P
PS1000X100L
PS1000X100S
PS1000X150P
PS1000X150L
PS1000X150S
PS1200X50P
PS1200X50L
PS1200X50S
PS1200X100P
PS1200X100L
PS1200X100S
PS1200X150P
PS1200X150L
PS1200X150S
PS1500X50P
PS1500X50L
PS1500X50S
PS1500X100P
PS1500X100L
PS1500X100S
PS1500X150P
PS1500X150L
PS1500X150S
PS2000X50P
PS2000X50L
PS2000X50S
PS2000X100P
PS2000X100L
PS2000X100S
PS2000X150P
PS2000X150L
PS2000X150S
PS2500X50P
PS2500X50L
PS2500X50S
PS2500X100P
PS2500X100L
PS2500X100S
PS2500X150P
PS2500X150L
PS2500X150S
PS3000X50P
PS3000X50L
PS3000X50S
PS3000X100P
PS3000X100L
PS3000X100S
PS3000X150P
PS3000X150L
PS3000X150S
PS4000X50P
PS4000X50L
PS4000X50S
PS4000X100P
PS4000X100L
PS4000X100S
PS4000X150P
PS4000X150L
PS4000X150S
PS5000X50P
PS5000X50L
PS5000X50S
PS5000X100P
PS5000X100L
PS5000X100S
PS5000X150P
PS5000X150L
PS5000X150S
PS6000X50P
PS6000X50L
PS6000X50S
PS6000X100P
PS6000X100L
PS6000X100S
PS6000X150P
PS6000X150L
PS6000X150S
