DESCRIZIONE

Plenum per condizionatori, deumidificatori,

ventilconvettori e fancoils canalizzati.

Completo di collari per connessione a tubazioni

flessibili.

Realizzato con pannello preisolato.

Installati a bordo macchina.

A RICHIESTA

Dimensioni differenti allo standard.

TUTTI I MODELLI NON INDICATI IN TABELLA.

** Codice generico indicato per serrande vmc. In fase d’ordine

specificare il modello della macchina e il numero di attacchi.

CARATTERISTICHE

Materiale: alluminio e poliuretano espanso.

Profondità STANDARD plenum 250 mm.

Larghezza e altezza come uscita macchina.

• PLM-VMC con setto separatore in PAL.

• Plenum speciali realizzati su misura.

ACCESSORI

Supporto per filtro su plenum di ripresa.

Possibilità di fornitura con SISTEMA DI SANIFICAZIONE

PLM-CDZ-KS1 / PLM-CDZ-KS2 (consigliato)

H

2

O

2

H

2

O

CO

62

Air Control Srl

le specifiche sono soggette a modifiche senza preavviso

AIR_20221001_ZD

AIR_20221001_ZD

le specifiche sono soggette a modifiche senza preavviso

Air Control Srl

63

Unit

IMPIANTO FINO A 7 KW

Cod. KIT-SANI-1

DF09960

1

BOTOLA

1

TRASF-KIT-1

1

IMPIANTO FINO DA 7 FINO A 14 KW

*

In fase d’ordine è possibile utilizzare il codice generico indicando

il modello della macchina e numero di attacchi.

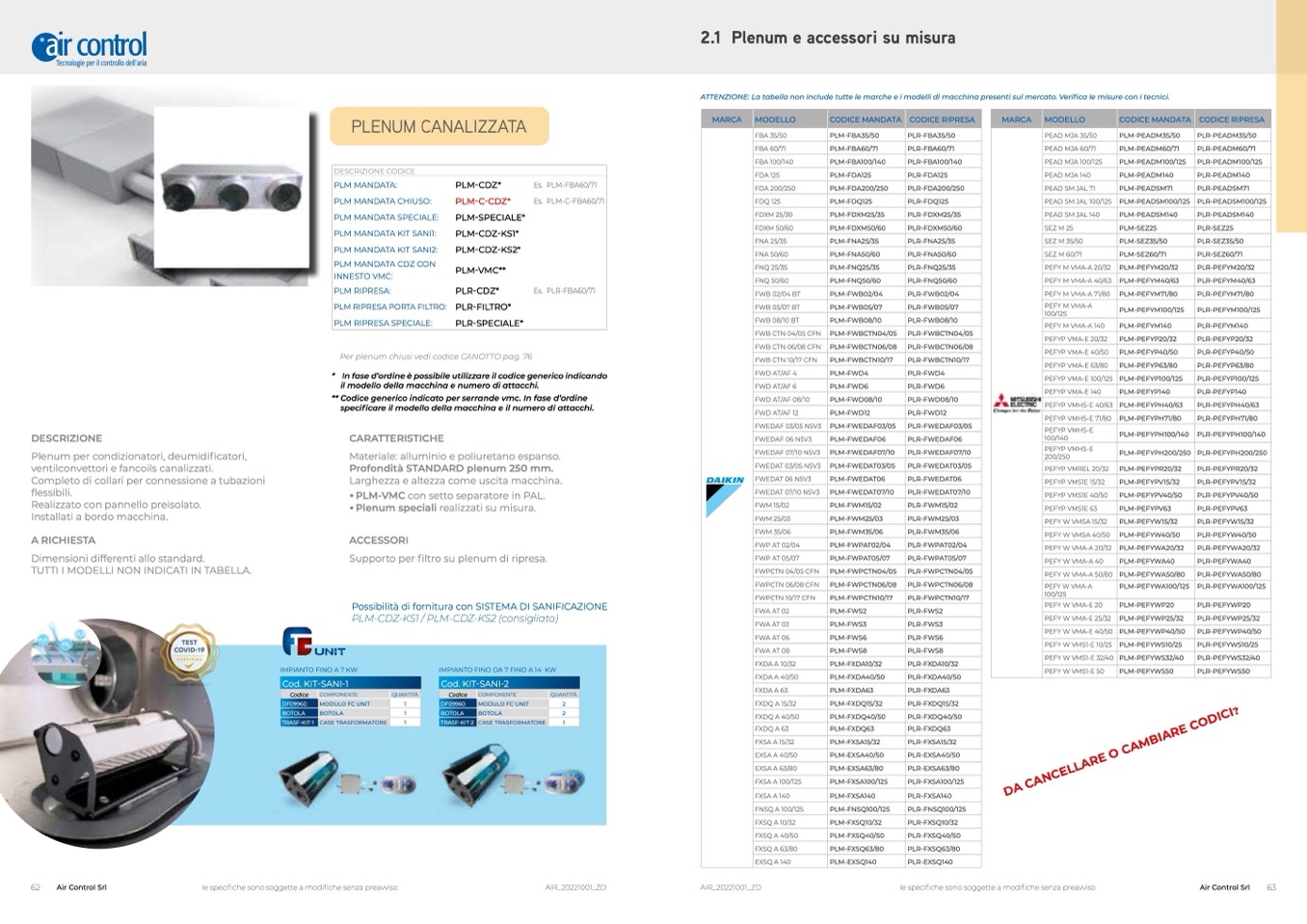

PLENUM CANALIZZATA

FBA 35/50

FBA 60/71

FBA 100/140

FDA 125

FDA 200/250

FDQ 125

FDXM 25/30

FDXM 50/60

FNA 25/35

FNA 50/60

FNQ 25/35

FNQ 50/60

FWB 02/04 BT

FWB 05/07 BT

FWB 08/10 BT

FWB CTN 04/05 CFN

FWB CTN 06/08 CFN

FWB CTN 10/17 CFN

FWD AT/AF 4

FWD AT/AF 6

FWD AT/AF 08/10

FWD AT/AF 12

FWEDAF 03/05 N5V3

FWEDAF 06 N5V3

FWEDAF 07/10 N5V3

FWEDAT 03/05 N5V3

FWEDAT 06 N5V3

FWEDAT 07/10 N5V3

FWM 15/02

FWM 25/03

FWM 35/06

FWP AT 02/04

FWP AT 05/07

FWPCTN 04/05 CFN

FWPCTN 06/08 CFN

FWPCTN 10/17 CFN

FWA AT 02

FWA AT 03

FWA AT 06

FWA AT 08

FXDA A 10/32

FXDA A 40/50

FXDA A 63

FXDQ A 15/32

FXDQ A 40/50

FXDQ A 63

FXSA A 15/32

EXSA A 40/50

EXSA A 63/80

FXSA A 100/125

FXSA A 140

FNSQ A 100/125

FXSQ A 10/32

FXSQ A 40/50

FXSQ A 63/80

EXSQ A 140

PLM-FBA35/50

PLM-FBA60/71

PLM-FBA100/140

PLM-FDA125

PLM-FDA200/250

PLM-FDQ125

PLM-FDXM25/35

PLM-FDXM50/60

PLM-FNA25/35

PLM-FNA50/60

PLM-FNQ25/35

PLM-FNQ50/60

PLM-FWB02/04

PLM-FWB05/07

PLM-FWB08/10

PLM-FWBCTN04/05

PLM-FWBCTN06/08

PLM-FWBCTN10/17

PLM-FWD4

PLM-FWD6

PLM-FWD08/10

PLM-FWD12

PLM-FWEDAF03/05

PLM-FWEDAF06

PLM-FWEDAF07/10

PLM-FWEDAT03/05

PLM-FWEDAT06

PLM-FWEDAT07/10

PLM-FWM15/02

PLM-FWM25/03

PLM-FWM35/06

PLM-FWPAT02/04

PLM-FWPAT05/07

PLM-FWPCTN04/05

PLM-FWPCTN06/08

PLM-FWPCTN10/17

PLM-FWS2

PLM-FWS3

PLM-FWS6

PLM-FWS8

PLM-FXDA10/32

PLM-FXDA40/50

PLM-FXDA63

PLM-FXDQ15/32

PLM-FXDQ40/50

PLM-FXDQ63

PLM-FXSA15/32

PLM-EXSA40/50

PLM-EXSA63/80

PLM-FXSA100/125

PLM-FXSA140

PLM-FNSQ100/125

PLM-FXSQ10/32

PLM-FXSQ40/50

PLM-FXSQ63/80

PLM-EXSQ140

PLR-FBA35/50

PLR-FBA60/71

PLR-FBA100/140

PLR-FDA125

PLR-FDA200/250

PLR-FDQ125

PLR-FDXM25/35

PLR-FDXM50/60

PLR-FNA25/35

PLR-FNA50/60

PLR-FNQ25/35

PLR-FNQ50/60

PLR-FWB02/04

PLR-FWB05/07

PLR-FWB08/10

PLR-FWBCTN04/05

PLR-FWBCTN06/08

PLR-FWBCTN10/17

PLR-FWD4

PLR-FWD6

PLR-FWD08/10

PLR-FWD12

PLR-FWEDAF03/05

PLR-FWEDAF06

PLR-FWEDAF07/10

PLR-FWEDAT03/05

PLR-FWEDAT06

PLR-FWEDAT07/10

PLR-FWM15/02

PLR-FWM25/03

PLR-FWM35/06

PLR-FWPAT02/04

PLR-FWPAT05/07

PLR-FWPCTN04/05

PLR-FWPCTN06/08

PLR-FWPCTN10/17

PLR-FWS2

PLR-FWS3

PLR-FWS6

PLR-FWS8

PLR-FXDA10/32

PLR-FXDA40/50

PLR-FXDA63

PLR-FXDQ15/32

PLR-FXDQ40/50

PLR-FXDQ63

PLR-FXSA15/32

PLR-EXSA40/50

PLR-EXSA63/80

PLR-FXSA100/125

PLR-FXSA140

PLR-FNSQ100/125

PLR-FXSQ10/32

PLR-FXSQ40/50

PLR-FXSQ63/80

PLR-EXSQ140

PEAD MJA 35/50

PEAD MJA 60/71

PEAD MJA 100/125

PEAD MJA 140

PEAD SM JAL 71

PEAD SM JAL 100/125

PEAD SM JAL 140

PLM-PEADM35/50

PLM-PEADM60/71

PLM-PEADM100/125

PLM-PEADM140

PLM-PEADSM71

PLM-PEADSM100/125

PLM-PEADSM140

PLM-SEZ25

PLM-SEZ35/50

PLM-SEZ60/71

PLM-PEFYM20/32

PLM-PEFYM40/63

PLM-PEFYM71/80

PLM-PEFYM100/125

PLM-PEFYM140

PLM-PEFYP20/32

PLM-PEFYP40/50

PLM-PEFYP63/80

PLM-PEFYP100/125

PLM-PEFYP140

PLM-PEFYPH40/63

PLM-PEFYPH71/80

PLM-PEFYPH100/140

PLM-PEFYPH200/250

PLM-PEFYPR20/32

PLM-PEFYPV15/32

PLM-PEFYPV40/50

PLM-PEFYPV63

PLM-PEFYW15/32

PLM-PEFYW40/50

PLM-PEFYWA20/32

PLM-PEFYWA40

PLM-PEFYWA50/80

PLM-PEFYWA100/125

PLM-PEFYWP20

PLM-PEFYWP25/32

PLM-PEFYWP40/50

PLM-PEFYWS10/25

PLM-PEFYWS32/40

PLM-PEFYWS50

PLR-PEADM35/50

PLR-PEADM60/71

PLR-PEADM100/125

PLR-PEADM140

PLR-PEADSM71

PLR-PEADSM100/125

PLR-PEADSM140

PLR-SEZ25

PLR-SEZ35/50

PLR-SEZ60/71

PLR-PEFYM20/32

PLR-PEFYM40/63

PLR-PEFYM71/80

PLR-PEFYM100/125

PLR-PEFYM140

PLR-PEFYP20/32

PLR-PEFYP40/50

PLR-PEFYP63/80

PLR-PEFYP100/125

PLR-PEFYP140

PLR-PEFYPH40/63

PLR-PEFYPH71/80

PLR-PEFYPH100/140

PLR-PEFYPH200/250

PLR-PEFYPR20/32

PLR-PEFYPV15/32

PLR-PEFYPV40/50

PLR-PEFYPV63

PLR-PEFYW15/32

PLR-PEFYW40/50

PLR-PEFYWA20/32

PLR-PEFYWA40

PLR-PEFYWA50/80

PLR-PEFYWA100/125

PLR-PEFYWP20

PLR-PEFYWP25/32

PLR-PEFYWP40/50

PLR-PEFYWS10/25

PLR-PEFYWS32/40

PLR-PEFYWS50

DESCRIZIONE CODICE

PLM MANDATA:

PLM MANDATA CHIUSO:

PLM MANDATA SPECIALE:

PLM MANDATA KIT SANI1:

PLM MANDATA KIT SANI2:

PLM MANDATA CDZ CON

INNESTO VMC:

PLM RIPRESA:

PLM RIPRESA PORTA FILTRO:

PLM RIPRESA SPECIALE:

PLM-CDZ*

PLM-C-CDZ*

PLM-SPECIALE*

PLM-CDZ-KS1*

PLM-CDZ-KS2*

PLM-VMC**

PLR-CDZ*

PLR-FILTRO*

PLR-SPECIALE*

Es. PLM-FBA60/71

Es. PLM-C-FBA60/71

Es. PLR-FBA60/71

SEZ M 25

SEZ M 35/50

SEZ M 60/71

PEFY M VMA-A

PEFY M VMA-A

PEFY M VMA-A

PEFY M VMA-A

100/125

PEFY M VMA-A

20/32

40/63

71/80

140

Per plenum chiusi vedi codice CANOTTO pag. 76

PEFYP VMA-E 20/32

PEFYP VMA-E 40/50

PEFYP VMA-E 63/80

PEFYP VMA-E 100/125

PEFYP VMA-E 140

PEFYP VMHS-E 40/63

PEFYP VMHS-E 71/80

PEFYP VMHS-E

100/140

PEFYP VMHS-E

200/250

PEFYP VMREL 20/32

PEFYP VMS1E 15/32

PEFYP VMS1E 40/50

PEFYP VMS1E 63

PEFY W VMSA 15/32

PEFY W VMSA 40/50

PEFY W VMA-A 20/32

PEFY W VMA-A 40

PEFY W VMA-A 50/80

PEFY W VMA-A

100/125

PEFY W VMA-E 20

PEFY W VMA-E 25/32

PEFY W VMA-E 40/50

PEFY W VMS1-E 10/25

PEFY W VMS1-E 32/40

PEFY W VMS1-E 50

Cod. KIT-SANI-2

DF09960

2

BOTOLA

2

TRASF-KIT-2

1

2.1 Plenum e accessori su misura

ATTENZIONE: La tabella non include tutte le marche e i modelli di macchina presenti sul mercato. Verifica le misure con i tecnici.

MARCA

MODELLO

CODICE MANDATA

CODICE RIPRESA

MARCA

MODELLO

CODICE MANDATA

CODICE RIPRESA

Codice

COMPONENTE

QUANTITÀ

MODULO FC UNIT

BOTOLA

CASE TRASFORMATORE

Codice

COMPONENTE

QUANTITÀ

MODULO FC UNIT

BOTOLA

CASE TRASFORMATORE
