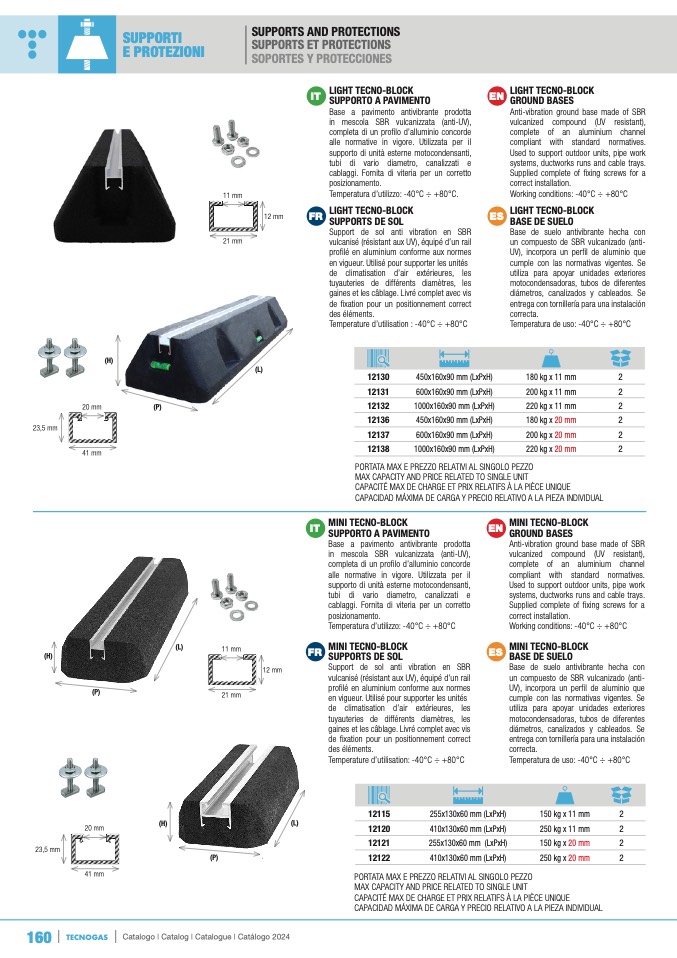

SUPPORTI

E PROTEZIONI

SUPPORTS AND PROTECTIONS

SUPPORTS ET PROTECTIONS

SOPORTES Y PROTECCIONE

S

IT

11 mm

12 mm

FR

21 mm

(H

)

(L)

LIGHT TECNO-BLOCK

SUPPORTO A PAVIMENTO

Base a pavimento antivibrante prodotta

in mescola SBR vulcanizzata (anti-UV),

completa di un profilo d’alluminio concorde

alle normative in vigore. Utilizzata per il

supporto di unità esterne motocondensanti,

tubi di vario diametro, canalizzati e

cablaggi. Fornita di viteria per un corretto

posizionamento.

Temperatura d’utilizzo: -40°C ÷ +80°C.

LIGHT TECNO-BLOCK

SUPPORTS DE SOL

Support de sol anti vibration en SBR

vulcanisé (résistant aux UV), équipé d’un rail

profilé en aluminium conforme aux normes

en vigueur. Utilisé pour supporter les unités

de climatisation d’air extérieures, les

tuyauteries de différents diamètres, le

s

gaines et les câblage. Livré complet avec vis

de fixation pour un positionnement correct

des éléments.

Temperature d’utilisation : -40°C ÷ +80°C

E

N

E

S

LIGHT TECNO-BLOCK

GROUND BASES

Anti-vibration ground base made of SB

R

vulcanized compound (UV resistant),

complete of an aluminium channel

compliant with standard normatives.

Used to support outdoor units, pipe work

systems, ductworks runs and cable trays.

Supplied complete of

fixing screws for a

correct installation.

Working conditions: -40°C ÷ +80°C

LIGHT TECNO-BLOCK

BASE DE SUELO

Base de suelo antivibrante hecha co

n

un compuesto de SBR vulcanizado (anti

-

UV), incorpora un per

fil de aluminio que

cumple con las normativas vigentes. S

e

utiliza para apoyar unidades exteriores

motocondensadoras, tubos de diferentes

diámetros, canalizados y cableados. S

e

entrega con tornillería para una instalació

n

correcta

.

Temperatura de uso: -40°C ÷ +80°

C

12130

450x160x90 mm (LxPxH)

180 kg x 11 mm

2

12131

600x160x90 mm (LxPxH)

200 kg x 11 mm

2

20 mm

(P)

12132

1000x160x90 mm (LxPxH)

220 kg x 11 mm

2

12136

450x160x90 mm (LxPxH)

180 kg x 20 mm

2

23,5 mm

12137

600x160x90 mm (LxPxH)

200 kg x 20 mm

2

41 mm

12138

1000x160x90 mm (LxPxH)

220 kg x 20 mm

2

PORTATA MAX E PREZZO RELATIVI AL SINGOLO PEZZ

O

MAX CAPACITY AND PRICE RELATED TO SINGLE UNI

T

CAPACITÉ MAX DE CHARGE ET PRIX RELATIFS À LA PIÈCE UNIQU

E

CAPACIDAD MÁXIMA DE CARGA Y PRECIO RELATIVO A LA PIEZA INDIVIDUAL

I

T

(L)

11 mm

FR

(H)

12 mm

(P)

21 mm

MINI TECNO-BLOC

K

SUPPORTO A PAVIMENT

O

Base a pavimento antivibrante prodott

a

in mescola SBR vulcanizzata (anti-UV)

,

completa di un pro

filo d’alluminio concorde

alle normative in vigore. Utilizzata per i

l

supporto di unità esterne motocondensanti

,

tubi di vario diametro, canalizzati

e

cablaggi. Fornita di viteria per un corrett

o

posizionamento

.

Temperatura d’utilizzo: -40°C ÷ +80°

C

MINI TECNO-BLOC

K

SUPPORTS DE SOL

Support de sol anti vibration en SBR

vulcanisé (résistant aux UV), équipé d’un rail

profilé en aluminium conforme aux normes

en vigueur. Utilisé pour supporter les unités

de climatisation d’air extérieures, les

tuyauteries de différents diamètres, le

s

gaines et les câblage. Livré complet avec vis

de fixation pour un positionnement correct

des éléments.

Temperature d’utilisation: -40°C ÷ +80°C

E

N

E

S

MINI TECNO-BLOC

K

GROUND BASES

Anti-vibration ground base made of SBR

vulcanized compound (UV resistant),

complete of an aluminium channe

l

compliant with standard normatives.

Used to support outdoor units, pipe wor

k

systems, ductworks runs and cable trays

.

Supplied complete of fixing screws for a

correct installation.

Working conditions: -40°C ÷ +80°

C

MINI TECNO-BLOC

K

BASE DE SUELO

Base de suelo antivibrante hecha con

un compuesto de SBR vulcanizado (anti-

UV), incorpora un per

fil de aluminio que

cumple con las normativas vigentes. Se

utiliza para apoyar unidades exteriore

s

motocondensadoras, tubos de diferente

s

diámetros, canalizados y cableados. Se

entrega con tornillería para una instalación

correcta

.

Temperatura de uso: -40°C ÷ +80°C

12115

255x130x60 mm (LxPxH)

150 kg x 11 mm

2

(H

)

(L)

20 mm

12120

410x130x60 mm (LxPxH)

250 kg x 11 mm

2

12121

255x130x60 mm (LxPxH)

150 kg x 20 mm

2

23,5 mm

(P)

12122

410x130x60 mm (LxPxH)

250 kg x 20 mm

2

41 mm

PORTATA MAX E PREZZO RELATIVI AL SINGOLO PEZZO

MAX CAPACITY AND PRICE RELATED TO SINGLE UNIT

CAPACITÉ MAX DE CHARGE ET PRIX RELATIFS À LA PIÈCE UNIQUE

CAPACIDAD MÁXIMA DE CARGA Y PRECIO RELATIVO A LA PIEZA INDIVIDUAL

160 TECNOGA

S

Catalogo I Catalog I Catalogue I Catálogo 2024
