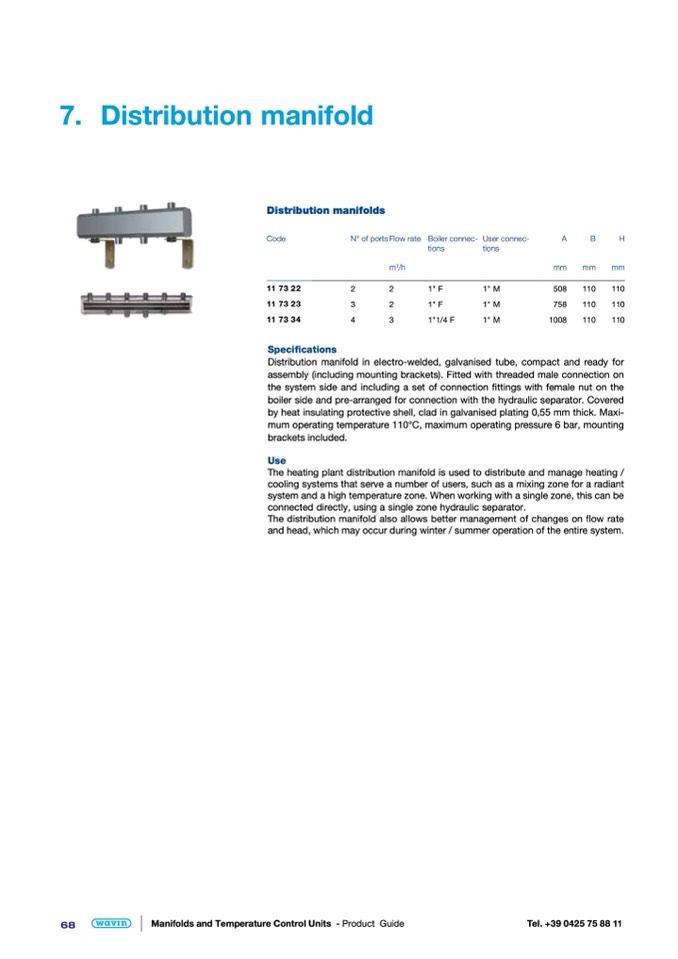

7. Distribution manifold

Distribution manifolds

Code

11 73 22

11 73 23

11 73 34

Specifications

N° of ports Flow rate

m

3

/h

2

2

3

2

4

3

Boiler connec-

tions

1" F

1" F

1"1/4 F

User connec-

tions

1" M

1" M

1" M

A

B

H

mm

mm

mm

508

110

110

758

110

110

1008

110

110

Distribution manifold in electro-welded, galvanised tube, compact and ready for

assembly (including mounting brackets). Fitted with threaded male connection on

the system side and including a set of connection fittings with female nut on the

boiler side and pre-arranged for connection with the hydraulic separator. Covered

by heat insulating protective shell, clad in galvanised plating 0,55 mm thick. Maxi-

mum operating temperature 110°C, maximum operating pressure 6 bar, mounting

brackets included.

Use

The heating plant distribution manifold is used to distribute and manage heating /

cooling systems that serve a number of users, such as a mixing zone for a radiant

system and a high temperature zone. When working with a single zone, this can be

connected directly, using a single zone hydraulic separator.

The distribution manifold also allows better management of changes on flow rate

and head, which may occur during winter / summer operation of the entire system.
