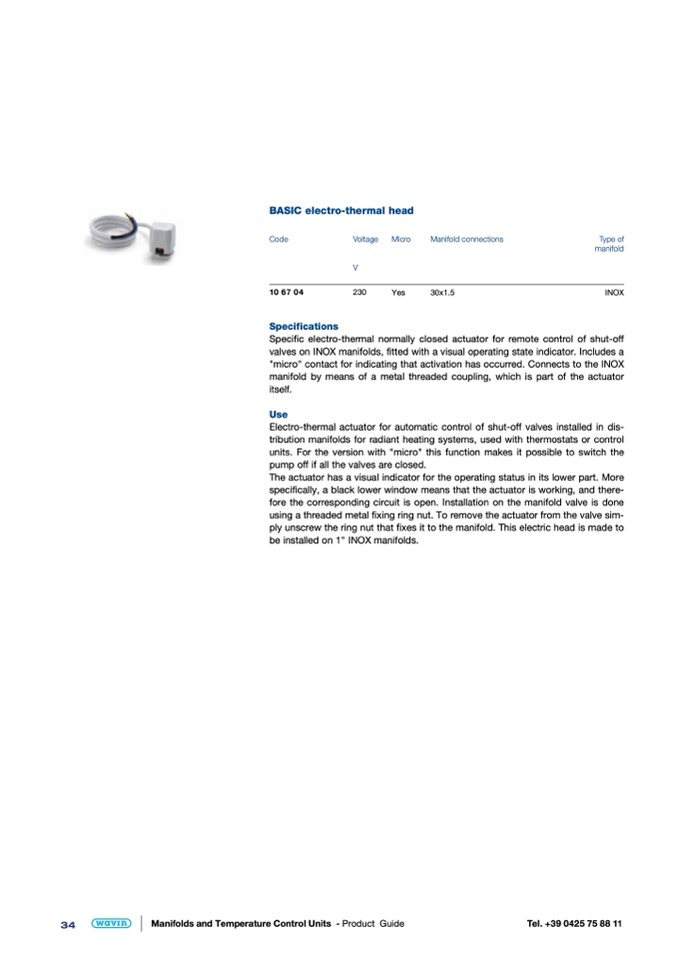

BASIC electro-thermal head

Code

Voltage

Micro

V

10 67 04

230

Yes

Specifications

Manifold connections

30x1.5

Type of

manifold

INOX

Specific electro-thermal normally closed actuator for remote control of shut-off

valves on INOX manifolds, fitted with a visual operating state indicator. Includes a

"micro" contact for indicating that activation has occurred. Connects to the INOX

manifold by means of a metal threaded coupling, which is part of the actuator

itself.

Use

Electro-thermal actuator for automatic control of shut-off valves installed in dis-

tribution manifolds for radiant heating systems, used with thermostats or control

units. For the version with "micro" this function makes it possible to switch the

pump off if all the valves are closed.

The actuator has a visual indicator for the operating status in its lower part. More

specifically, a black lower window means that the actuator is working, and there-

fore the corresponding circuit is open. Installation on the manifold valve is done

using a threaded metal fixing ring nut. To remove the actuator from the valve sim-

ply unscrew the ring nut that fixes it to the manifold. This electric head is made to

be installed on 1" INOX manifolds.
