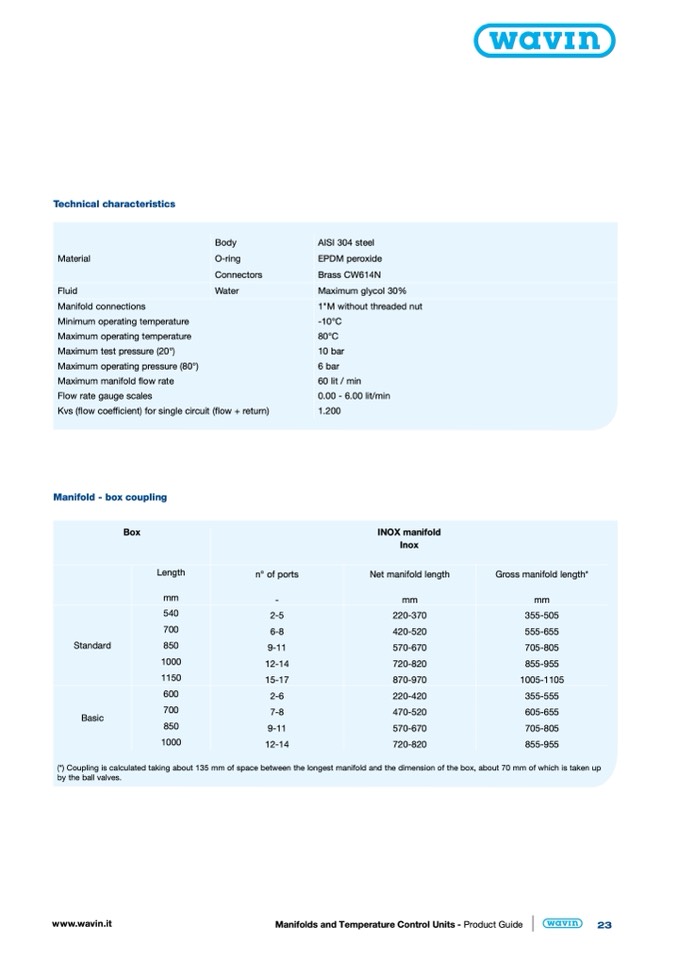

Technical characteristics

Material

Fluid

Body

O-ring

Connectors

Water

AISI 304 steel

EPDM peroxide

Brass CW614N

Maximum glycol 30%

1"M without threaded nut

-10°C

80°C

10 bar

6 bar

60 lit / min

0.00 - 6.00 lit/min

1.200

INOX manifold

Inox

Manifold connections

Minimum operating temperature

Maximum operating temperature

Maximum test pressure (20°)

Maximum operating pressure (80°)

Maximum manifold flow rate

Flow rate gauge scales

Kvs (flow coefficient) for single circuit (flow + return)

Manifold - box coupling

Box

Length

mm

n° of ports

-

Net manifold length

mm

Standard

Basic

540

700

850

1000

1150

600

700

850

1000

2-5

6-8

9-11

12-14

15-17

2-6

7-8

9-11

12-14

220-370

355-505

420-520

555-655

570-670

705-805

720-820

855-955

870-970

1005-1105

220-420

355-555

470-520

605-655

570-670

705-805

720-820

855-955

Gross manifold length*

mm

(*) Coupling is calculated taking about 135 mm of space between the longest manifold and the dimension of the box, about 70 mm of which is taken up

by the ball valves.
