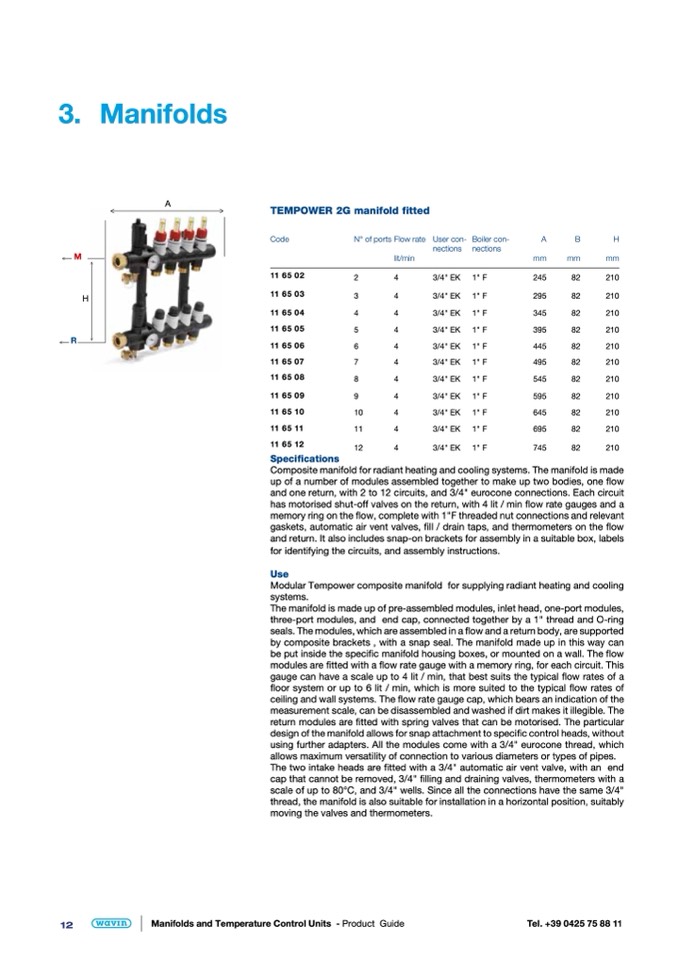

3. Manifolds
M
H
R
Code
11 65 02
11 65 03
11 65 04
11 65 05
11 65 06
11 65 07
11 65 08
11 65 09
11 65 10
11 65 11
11 65 12
Specifications
N° of ports
2
3
4
5
6
7
8
9
10
11
12
Flow rate
lit/min
4
4
4
4
4
4
4
4
4
4
4
User con- Boiler con-
nections nections
A
B
H
mm
mm
mm
245
82
210
295
82
210
345
82
210
395
82
210
445
82
210
495
82
210
545
82
210
595
82
210
645
82
210
695
82
210
745
82
210
A
TEMPOWER 2G manifold fitted
3/4" EK
3/4" EK
3/4" EK
3/4" EK
3/4" EK
3/4" EK
3/4" EK
3/4" EK
3/4" EK
3/4" EK
3/4" EK
1" F
1" F
1" F
1" F
1" F
1" F
1" F
1" F
1" F
1" F
1" F
Composite manifold for radiant heating and cooling systems. The manifold is made
up of a number of modules assembled together to make up two bodies, one flow
and one return, with 2 to 12 circuits, and 3/4" eurocone connections. Each circuit
has motorised shut-off valves on the return, with 4 lit / min flow rate gauges and a
memory ring on the flow, complete with 1"F threaded nut connections and relevant
gaskets, automatic air vent valves, fill / drain taps, and thermometers on the flow
and return. It also includes snap-on brackets for assembly in a suitable box, labels
for identifying the circuits, and assembly instructions.
Use
Modular Tempower composite manifold for supplying radiant heating and cooling
systems.
The manifold is made up of pre-assembled modules, inlet head, one-port modules,
three-port modules, and end cap, connected together by a 1" thread and O-ring
seals. The modules, which are assembled in a flow and a return body, are supported
by composite brackets , with a snap seal. The manifold made up in this way can
be put inside the specific manifold housing boxes, or mounted on a wall. The flow
modules are fitted with a flow rate gauge with a memory ring, for each circuit. This
gauge can have a scale up to 4 lit / min, that best suits the typical flow rates of a
floor system or up to 6 lit / min, which is more suited to the typical flow rates of
ceiling and wall systems. The flow rate gauge cap, which bears an indication of the
measurement scale, can be disassembled and washed if dirt makes it illegible. The
return modules are fitted with spring valves that can be motorised. The particular
design of the manifold allows for snap attachment to specific control heads, without
using further adapters. All the modules come with a 3/4" eurocone thread, which
allows maximum versatility of connection to various diameters or types of pipes.
The two intake heads are fitted with a 3/4" automatic air vent valve, with an end
cap that cannot be removed, 3/4" filling and draining valves, thermometers with a
scale of up to 80°C, and 3/4" wells. Since all the connections have the same 3/4"
thread, the manifold is also suitable for installation in a horizontal position, suitably
moving the valves and thermometers.
