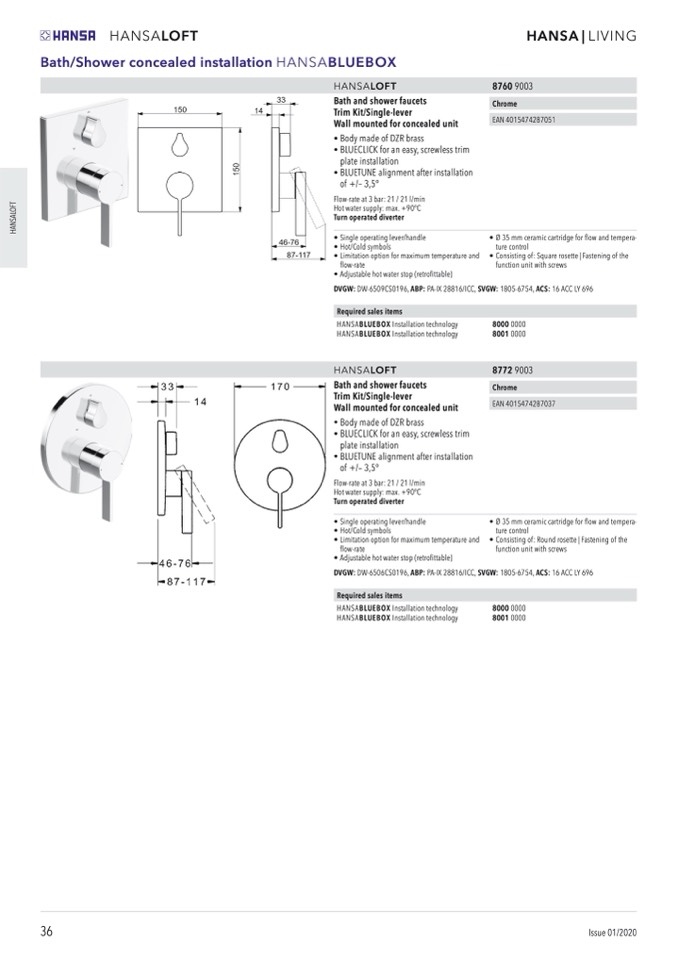

HANSALOFT

Bath/Shower concealed installation HANSABLUEBOX

HANSALOFT

Bath and shower faucets

Trim Kit/Single-lever

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 21 / 21 l/min

Hot water supply: max. +90°C

Turn operated diverter

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

HANSA | LIVING

36

Issue 01/2020

DVGW: DW-6509CS0196, ABP: PA-IX 28816/ICC, SVGW: 1805-6754, ACS: 16 ACC LY 696

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

HANSALOFT

Bath and shower faucets

Trim Kit/Single-lever

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 21 / 21 l/min

Hot water supply: max. +90°C

Turn operated diverter

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

8000 0000

8001 0000

8772 9003

Chrome

EAN 4015474287037

€ 295,00

DVGW: DW-6506CS0196, ABP: PA-IX 28816/ICC, SVGW: 1805-6754, ACS: 16 ACC LY 696

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

8000 0000

8001 0000

87609003

Chrome

EAN 4015474287051

€ 295,00

H

A

N

S

A

L

O

F

T

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Consisting of: Square rosette | Fastening of the

function unit with screws

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Consisting of: Round rosette | Fastening of the

function unit with screws
