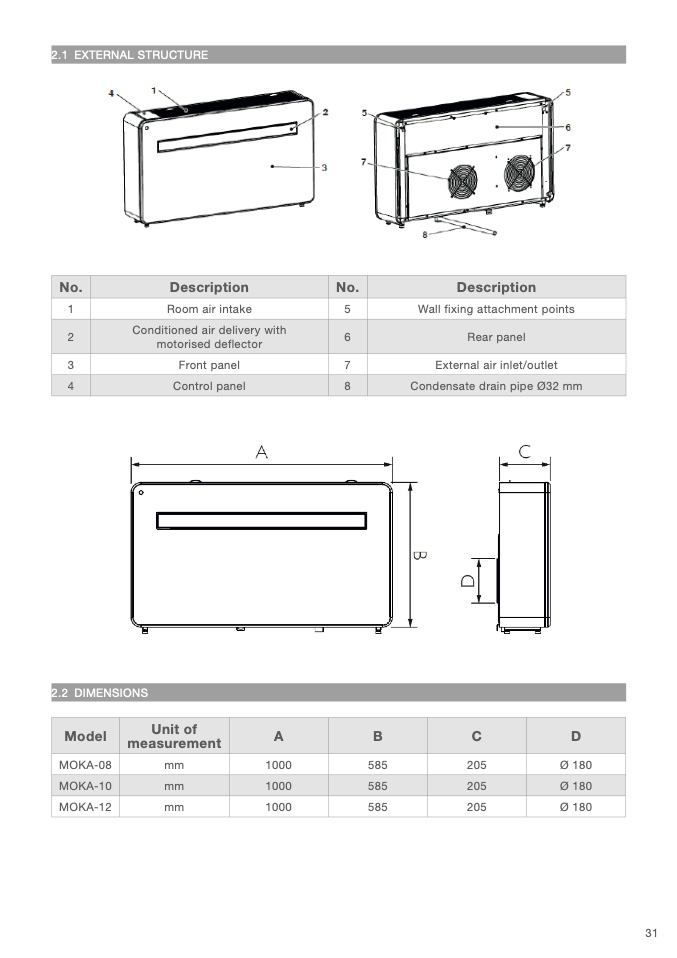

2.1 EXTERNAL STRUCTURE

No.

Description

No.

Description

1

Room air intake

5

Wall fixing attachment point

s

2

Conditioned air delivery wit

h

motorised deflector

6

Rear panel

3

Front panel

7

External air inlet/outle

t

4

Control panel

8

Condensate drain pipe Ø32 m

m

2.2 DIMENSION

S

Model

Unit o

f

measurement

A

B

C

D

MOKA-08

mm

1000

585

205

Ø 18

0

MOKA-10

mm

1000

585

205

Ø 18

0

MOKA-12

mm

1000

585

205

Ø 18

0
