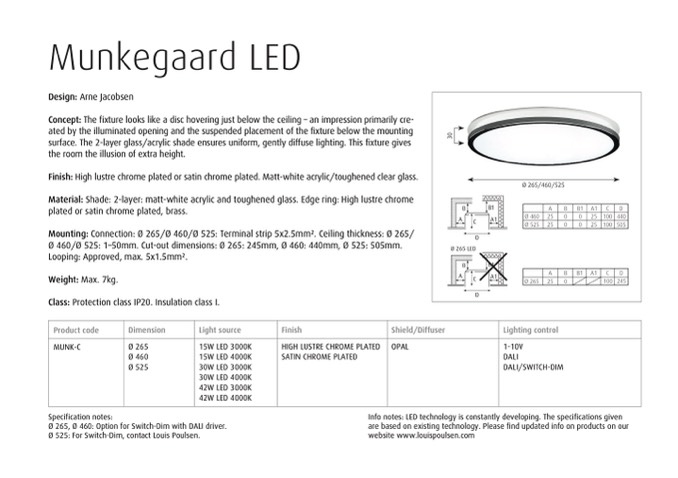

Munkegaard LED

Design: Arne Jacobsen

Concept: The fixture looks like a disc hovering just below the ceiling – an impression primarily cre-

ated by the illuminated opening and the suspended placement of the fixture below the mounting

surface. The 2-layer glass/acrylic shade ensures uniform, gently diffuse lighting. This fixture gives

the room the illusion of extra height.

Finish: High lustre chrome plated or satin chrome plated. Matt-white acrylic/toughened clear glass.

Material: Shade: 2-layer: matt-white acrylic and toughened glass. Edge ring: High lustre chrome

plated or satin chrome plated, brass.

Mounting: Connection: Ø 265/Ø 460/Ø 525: Terminal strip 5x2.5mm2. Ceiling thickness: Ø 265/

Ø 460/Ø 525: 1–50mm. Cut-out dimensions: Ø 265: 245mm, Ø 460: 440mm, Ø 525: 505mm.

Looping: Approved, max. 5x1.5mm2.

Weight: Max. 7kg.

Class: Protection class IP20. Insulation class I.

Product code

Dimension

Light source

Finish

Shield/Diffuser

Lighting control

MUNK-C

Ø 265

Ø 460

Ø 525

15W LED 3000K

15W LED 4000K

30W LED 3000K

30W LED 4000K

42W LED 3000K

42W LED 4000K

HIGH LUSTRE CHROME PLATED

SATIN CHROME PLATED

OPAL

1-10V

DALI

DALI/SWITCH-DIM

Specification notes:

Ø 265, Ø 460: Option for Switch-Dim with DALI driver.

Ø 525: For Switch-Dim, contact Louis Poulsen.

Info notes: LED technology is constantly developing. The specifications given

are based on existing technology. Please find updated info on products on our

website www.louispoulsen.com
