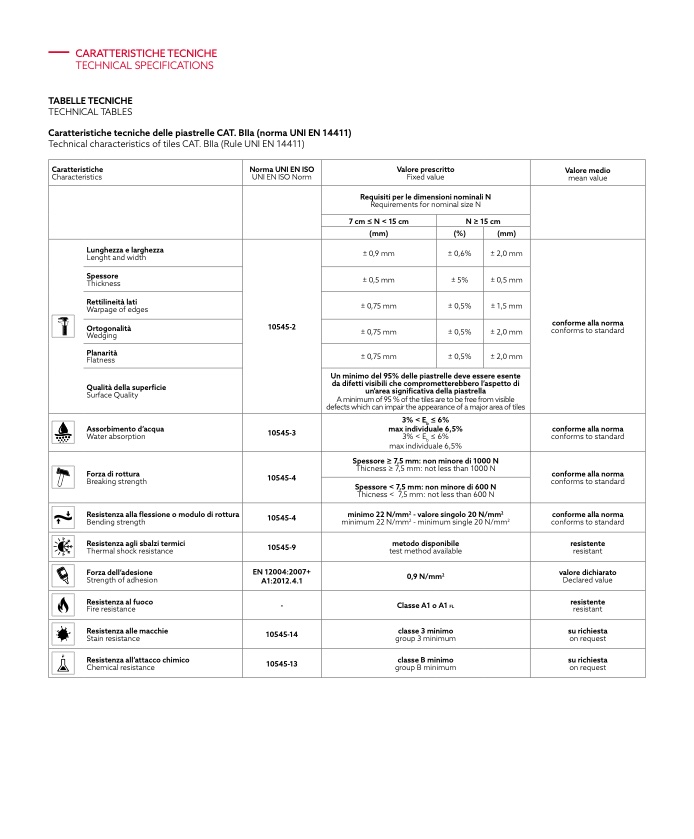

CARATTERISTICHE TECNICHE

TECHNICAL SPECIFICATIONS

TABELLE TECNICHE

TECHNICAL TABLES

Caratteristiche tecniche delle piastrelle CAT. BIIa (norma UNI EN 14411)

Technical characteristics of tiles CAT. BIIa (Rule UNI EN 14411)

Caratteristiche

Characteristics

Flatness

Norma UNI EN ISO

UNI EN ISO Norm

7 cm ≤ N < 15 cm

(mm)

± 0,5 mm

± 0,75 mm

± 0,75 mm

N ≥ 15 cm

Valore prescritto

Fixed value

Valore medio

mean value

Requisiti per le dimensioni nominali N

Requirements for nominal size N

± 0,9 mm

± 0,6%

± 2,0 mm

Lunghezza e larghezza

(%)

± 5%

± 0,5%

± 0,5%

(mm)

± 0,5 mm

± 2,0 mm

± 2,0 mm

Lenght and width

Spessore

Thickness

± 0,75 mm

± 0,5%

± 1,5 mm

Rettilineità lati

Warpage of edges

Ortogonalità

10545-2

conforme alla norma

Wedging

conforms to standard

Planarità

Qualità della superficie

Surface Quality

Forza di rottura

Breaking strength

Un minimo del 95% delle piastrelle deve essere esente

da difetti visibili che comprometterebbero l’aspetto di

un’area significativa della piastrella

A minimum of 95 % of the tiles are to be free from visible

defects which can impair the appearance of a major area of tiles

Assorbimento d’acqua

Water absorption

10545-3

3% < E

b

≤ 6%

max individuale 6,5%

3% < E

b

≤ 6%

max individuale 6,5%

conforme alla norma

conforms to standard

10545-4

Spessore ≥ 7,5 mm: non minore di 1000 N

Thicness ≥ 7,5 mm: not less than 1000 N

conforme alla norma

conforms to standard

Resistenza alla flessione o modulo di rottura

Bending strength

Spessore < 7,5 mm: non minore di 600 N

Thicness < 7,5 mm: not less than 600 N

10545-4

minimo 22 N/mm

2

- valore singolo 20 N/mm

2

minimum 22 N/mm

2

- minimum single 20 N/mm

2

conforme alla norma

conforms to standard

Resistenza agli sbalzi termici

Thermal shock resistance

Strength of adhesion

10545-9

metodo disponibile

test method available

resistente

resistant

Forza dell’adesione

EN 12004:2007+

A1:2012.4.1

0,9 N/mm

2

valore dichiarato

Declared value

Resistenza al fuoco

Fire resistance

-

Classe A1 o A1

FL

resistente

resistant

Resistenza alle macchie

Stain resistance

10545-14

classe 3 minimo

group 3 minimum

su richiesta

on request

Resistenza all’attacco chimico

Chemical resistance

10545-13

classe B minimo

group B minimum

su richiesta

on request
