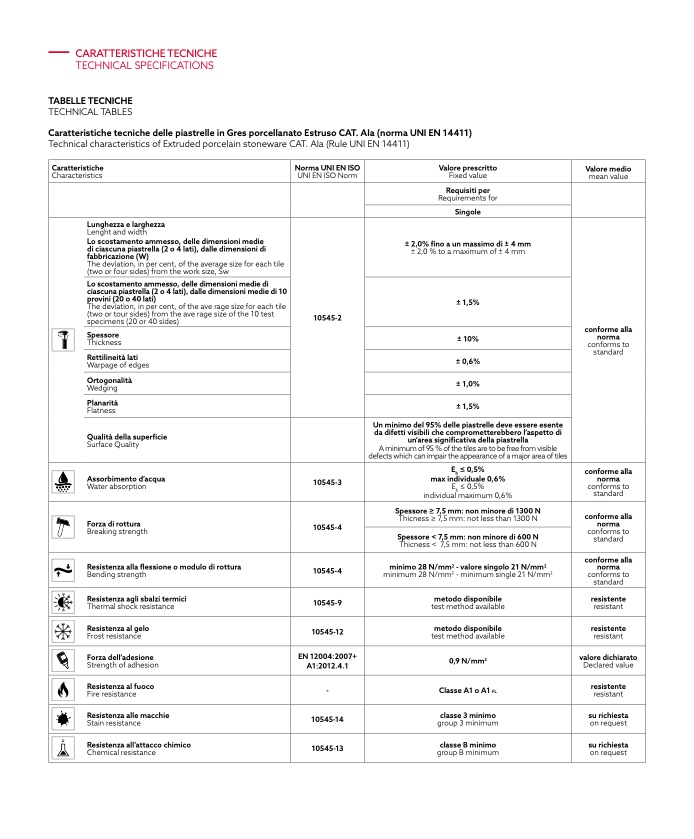

CARATTERISTICHE TECNICHE

TECHNICAL SPECIFICATIONS

TABELLE TECNICHE

TECHNICAL TABLES

Caratteristiche tecniche delle piastrelle in Gres porcellanato Estruso CAT. AIa (norma UNI EN 14411)

Technical characteristics of Extruded porcelain stoneware CAT. AIa (Rule UNI EN 14411)

Caratteristiche

Norma UNI EN ISO

Valore prescritto

Valore medio

Characteristics

UNI EN ISO Norm

Fixed value

mean value

Requisiti per

Requirements for

± 2,0% fino a un massimo di ± 4 mm

± 2,0 % to a maximum of ± 4 mm

± 1,5%

Lunghezza e larghezza

Singole

± 10%

± 0,6%

± 1,0%

± 1,5%

Lenght and width

Lo scostamento ammesso, delle dimensioni medie

di ciascuna piastrella (2 o 4 lati), dalle dimensioni di

fabbricazione (W)

The devìation, in per cent, of the average size for each tile

(two or four sides) from the work size, Sw

Lo scostamento ammesso, delle dimensioni medie di

ciascuna piastrella (2 o 4 lati), dalle dimensioni medie di 10

provini (20 o 40 lati)

The devìatìon, in per cent, of the ave rage sìze for each tile

(two or tour sides) from the ave rage size of the 10 test

specimens (20 or 40 sìdes)

10545-2

Spessore

conforme alla

norma

conforms to

standard

Thickness

Rettilineità lati

Warpage of edges

Ortogonalità

Wedging

Planarità

Flatness

Qualità della superficie

Surface Quality

Assorbimento d’acqua

Water absorption

Thermal shock resistance

10545-3

Un minimo del 95% delle piastrelle deve essere esente

da difetti visibili che comprometterebbero l’aspetto di

un’area significativa della piastrella

A minimum of 95 % of the tiles are to be free from visible

defects which can impair the appearance of a major area of tiles

E

b

≤ 0,5%

max individuale 0,6%

E

b

≤ 0,5%

individual maximum 0,6%

conforme alla

norma

conforms to

standard

Forza di rottura

Breaking strength

10545-4

Spessore ≥ 7,5 mm: non minore di 1300 N

Thicness ≥ 7,5 mm: not less than 1300 N

Spessore < 7,5 mm: non minore di 600 N

Thicness < 7,5 mm: not less than 600 N

conforme alla

norma

conforms to

standard

Resistenza alla flessione o modulo di rottura

Bending strength

10545-4

minimo 28 N/mm

2

- valore singolo 21 N/mm

2

minimum 28 N/mm

2

- minimum single 21 N/mm

2

conforme alla

norma

conforms to

standard

Resistenza agli sbalzi termici

10545-9

metodo disponibile

test method available

resistente

resistant

Resistenza al gelo

Frost resistance

10545-12

metodo disponibile

test method available

resistente

resistant

Forza dell’adesione

Strength of adhesion

EN 12004:2007+

A1:2012.4.1

0,9 N/mm

2

valore dichiarato

Declared value

Resistenza al fuoco

Fire resistance

-

Classe A1 o A1

FL

resistente

resistant

Resistenza alle macchie

Stain resistance

10545-14

classe 3 minimo

group 3 minimum

su richiesta

on request

Resistenza all’attacco chimico

Chemical resistance

10545-13

classe B minimo

group B minimum

su richiesta

on request
