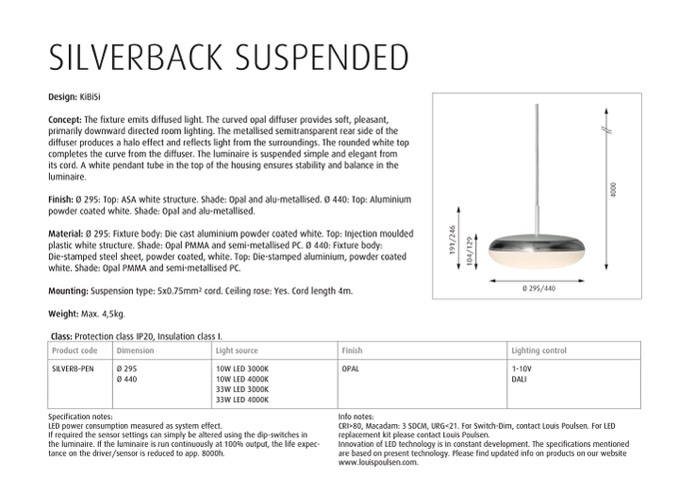

SILVERBACK SUSPENDED

Design: KiBiSi

Concept: The fixture emits diffused light. The curved opal diffuser provides soft, pleasant,

primarily downward directed room lighting. The metallised semitransparent rear side of the

diffuser produces a halo effect and reflects light from the surroundings. The rounded white top

completes the curve from the diffuser. The luminaire is suspended simple and elegant from

its cord. A white pendant tube in the top of the housing ensures stability and balance in the

luminaire.

Finish: Ø 295: Top: ASA white structure. Shade: Opal and alu-metallised. Ø 440: Top: Aluminium

powder coated white. Shade: Opal and alu-metallised.

Material: Ø 295: Fixture body: Die cast aluminium powder coated white. Top: Injection moulded

plastic white structure. Shade: Opal PMMA and semi-metallised PC. Ø 440: Fixture body:

Die-stamped steel sheet, powder coated, white. Top: Die-stamped aluminium, powder coated

white. Shade: Opal PMMA and semi-metallised PC.

Mounting: Suspension type: 5x0.75mm2 cord. Ceiling rose: Yes. Cord length 4m.

Weight: Max. 4,5kg.

Class: Protection class IP20, Insulation class I.

|Product code

|SILVERB-PEN

|

|

|

|Dimension

|Ø 295

|Ø 440

|

|

|Light source

|10W LED 3000K

|10W LED 4000K

|33W LED 3000K

|33W LED 4000K

|Finish

|Lighting control

|

|OPAL

|1-10V

|

|

|DALI

|

|

|

|

|

|

|

Info notes:

CRI>80, Macadam: 3 SDCM, URG<21. For Switch-Dim, contact Louis Poulsen. For LED

replacement kit please contact Louis Poulsen.

Innovation of LED technology is in constant development. The specifications mentioned

are based on present technology. Please find updated info on products on our website

www.louispoulsen.com.

Specification notes:

LED power consumption measured as system effect.

If required the sensor settings can simply be altered using the dip-switches in

the luminaire. If the luminaire is run continuously at 100% output, the life expec-

tance on the driver/sensor is reduced to app. 8000h.
