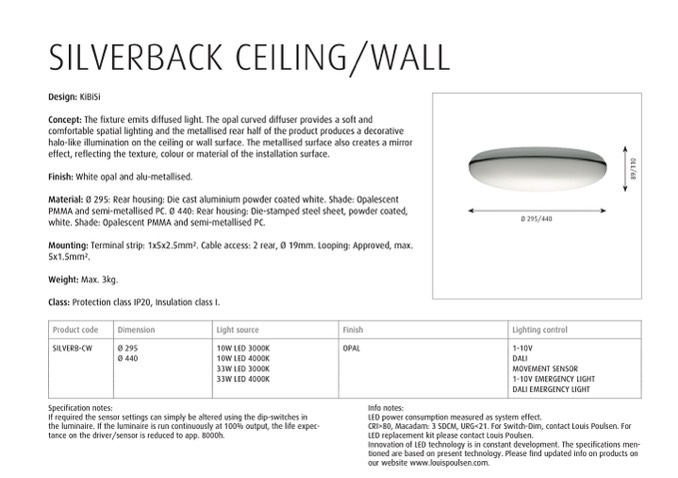

SILVERBACK CEILING/WALL

Design: KiBiSi

Concept: The fixture emits diffused light. The opal curved diffuser provides a soft and

comfortable spatial lighting and the metallised rear half of the product produces a decorative

halo-like illumination on the ceiling or wall surface. The metallised surface also creates a mirror

effect, reflecting the texture, colour or material of the installation surface.

Finish: White opal and alu-metallised.

Material: Ø 295: Rear housing: Die cast aluminium powder coated white. Shade: Opalescent

PMMA and semi-metallised PC. Ø 440: Rear housing: Die-stamped steel sheet, powder coated,

white. Shade: Opalescent PMMA and semi-metallised PC.

Mounting: Terminal strip: 1x5x2.5mm2. Cable access: 2 rear, Ø 19mm. Looping: Approved, max.

5x1.5mm2.

Weight: Max. 3kg.

Class: Protection class IP20, Insulation class I.

|Product code

|SILVERB-CW

|

|

|

|

|Dimension

|Ø 295

|Ø 440

|

|

|

|Light source

|10W LED 3000K

|10W LED 4000K

|33W LED 3000K

|33W LED 4000K

|

|Finish

|Lighting control

|

|OPAL

|1-10V

|

|

|DALI

|

|

|MOVEMENT SENSOR

|

|

|1-10V EMERGENCY LIGHT

|

|

|DALI EMERGENCY LIGHT

|

Info notes:

LED power consumption measured as system effect.

CRI>80, Macadam: 3 SDCM, URG<21. For Switch-Dim, contact Louis Poulsen. For

LED replacement kit please contact Louis Poulsen.

Innovation of LED technology is in constant development. The specifications men-

tioned are based on present technology. Please find updated info on products on

our website www.louispoulsen.com.

Specification notes:

If required the sensor settings can simply be altered using the dip-switches in

the luminaire. If the luminaire is run continuously at 100% output, the life expec-

tance on the driver/sensor is reduced to app. 8000h.
