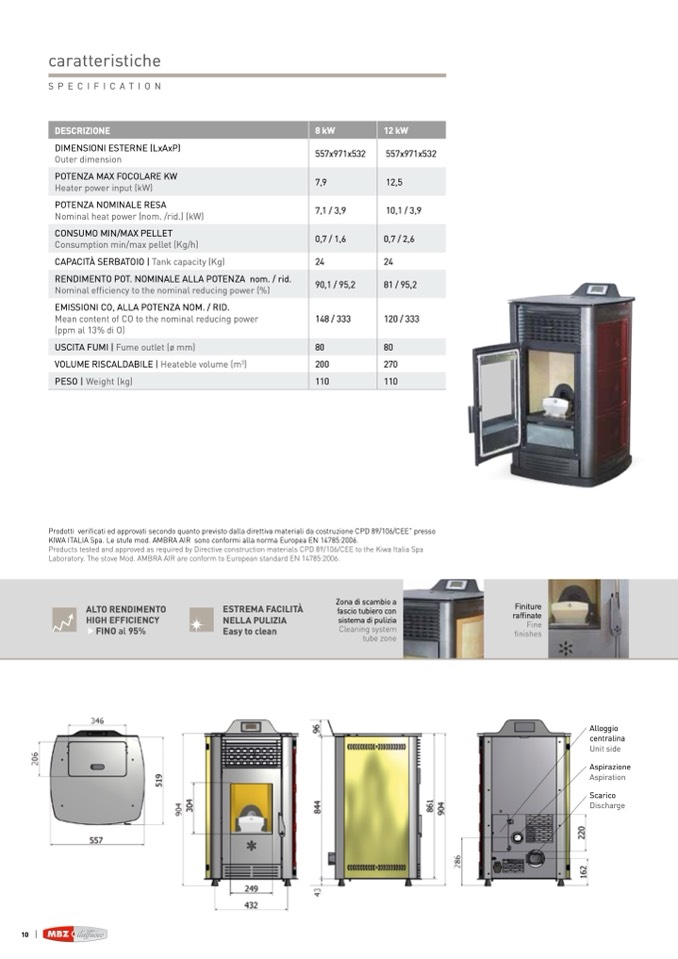

caratteristiche

SPecificaTioN

DESCRIZIONE

8kW

12 kW

DimeNSioNi eSTerNe (lxaxP)

outer dimension

557x971x532

557x971x532

PoTeNza max focolare kW

heater power input (kW)

7,9

12,5

PoTeNza NomiNale reSa

Nominal heat power (nom. /rid.) (kW)

7,1 / 3,9

10,1 / 3,9

coNSumo miN/max PelleT

consumption min/max pellet (kg/h)

0,7 / 1,6

0,7 / 2,6

caPaciTà SerbaToio | Tank capacity (kg)

24

24

reNDimeNTo PoT. NomiNale alla PoTeNza nom. / rid.

Nominal efficiency to the nominal reducing power (%)

90,1 / 95,2

81 / 95,2

emiSSioNi co, alla PoTeNza Nom. / riD.

mean content of co to the nominal reducing power

(ppm al 13% di o)

148 / 333

120 / 333

uSciTa fumi | fume outlet (ø mm)

80

80

volume riScalDabile | heateble volume (m

3

)

200

270

PeSo | Weight (kg)

110

110

Prodotti verificati ed approvati secondo quanto previsto dalla direttiva materiali da costruzione CPD 89/106/Cee” presso

KIWA ItAlIA spa. le stufe mod. AmBrA AIr sono conformi alla norma europea eN 14785:2006.

Products tested and approved as required by Directive construction materials CPD 89/106/Cee to the Kiwa Italia spa

laboratory. the stove mod. AmBrA AIr are conform to european standard eN 14785:2006.

ALTO RENDIMENTO

HIGH EFFICIENCY

FINO al 95%

ESTREMA FACILITÀ

NELLA PULIZIA

Easy to clean

zona di scambio a

fascio tubiero con

sistema di pulizia

Cleaning system

tube zone

finiture

raffinate

Fine

finishes

alloggio

centralina

unit side

aspirazione

aspiration

Scarico

Discharge

10
