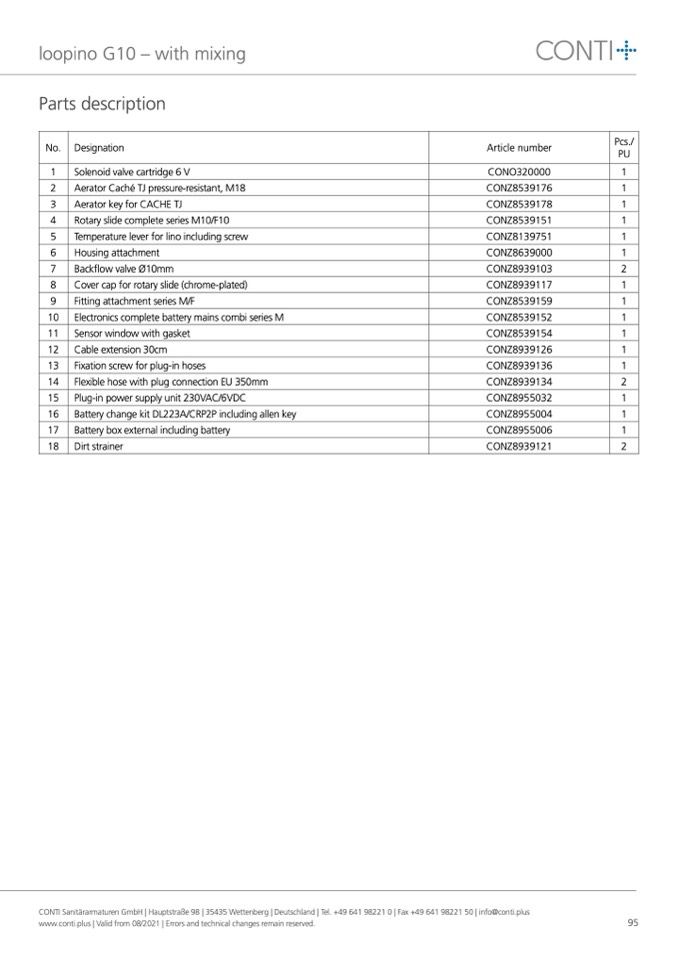

loopino G10 – with mixing

Parts description

No�

Designation

Article number

Pcs�/

PU

1

Solenoid valve cartridge 6 V

CONO320000

1

2

Aerator Caché TJ pressure-resistant, M18

CONZ8539176

1

3

Aerator key for CACHE TJ

CONZ8539178

1

4

Rotary slide complete series M10/F10

CONZ8539151

1

5

Temperature lever for lino including screw

CONZ8139751

1

6

Housing attachment

CONZ8639000

1

7

Backflow valve Ø10mm

CONZ8939103

2

8

Cover cap for rotary slide (chrome-plated)

CONZ8939117

1

9

Fitting attachment series M/F

CONZ8539159

1

10

Electronics complete battery mains combi series M

CONZ8539152

1

11

Sensor window with gasket

CONZ8539154

1

12

Cable extension 30cm

CONZ8939126

1

13

Fixation screw for plug-in hoses

CONZ8939136

1

14

Flexible hose with plug connection EU 350mm

CONZ8939134

2

15

Plug-in power supply unit 230VAC/6VDC

CONZ8955032

1

16

Battery change kit DL223A/CRP2P including allen key

CONZ8955004

1

17

Battery box external including battery

CONZ8955006

1

18

Dirt strainer

CONZ8939121

2
