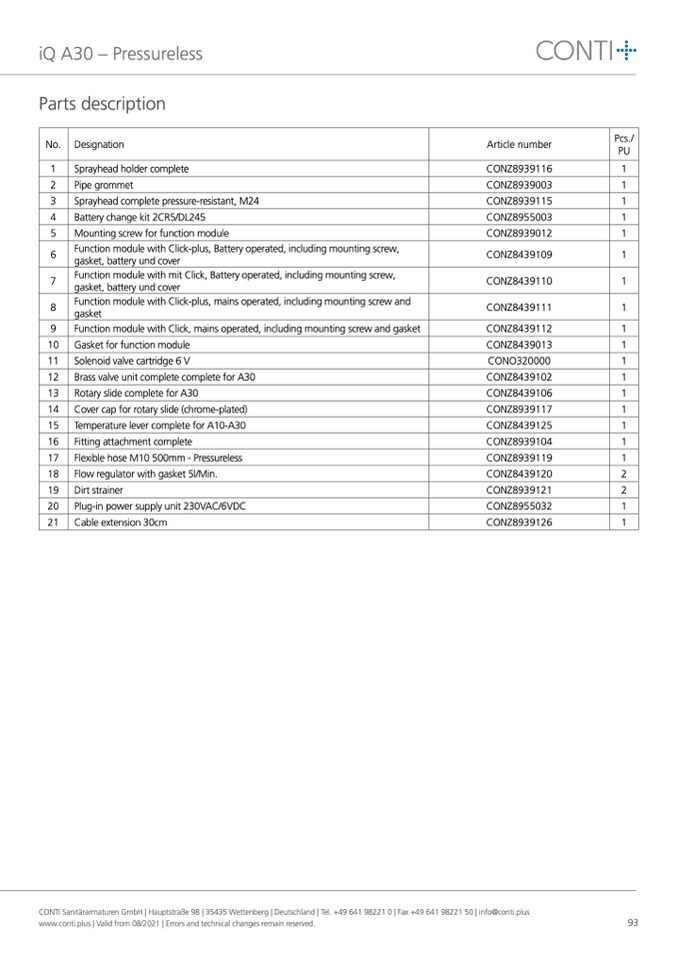

iQ A30 – Pressureless

Parts description

No�

Designation

Article number

Pcs�/

PU

1

Sprayhead holder complete

CONZ8939116

1

2

Pipe grommet

CONZ8939003

1

3

Sprayhead complete pressure-resistant, M24

CONZ8939115

1

4

Battery change kit 2CR5/DL245

CONZ8955003

1

5

Mounting screw for function module

CONZ8939012

1

6

Function module with Click-plus, Battery operated, including mounting screw,

gasket, battery und cover

CONZ8439109

1

7

Function module with mit Click, Battery operated, including mounting screw,

gasket, battery und cover

CONZ8439110

1

8

Function module with Click-plus, mains operated, including mounting screw and

gasket

CONZ8439111

1

9

Function module with Click, mains operated, including mounting screw and gasket

CONZ8439112

1

10

Gasket for function module

CONZ8439013

1

11

Solenoid valve cartridge 6 V

CONO320000

1

12

Brass valve unit complete complete for A30

CONZ8439102

1

13

Rotary slide complete for A30

CONZ8439106

1

14

Cover cap for rotary slide (chrome-plated)

CONZ8939117

1

15

Temperature lever complete for A10-A30

CONZ8439125

1

16

Fitting attachment complete

CONZ8939104

1

17

Flexible hose M10 500mm - Pressureless

CONZ8939119

1

18

Flow regulator with gasket 5l/Min�

CONZ8439120

2

19

Dirt strainer

CONZ8939121

2

20

Plug-in power supply unit 230VAC/6VDC

CONZ8955032

1

21

Cable extension 30cm

CONZ8939126

1
