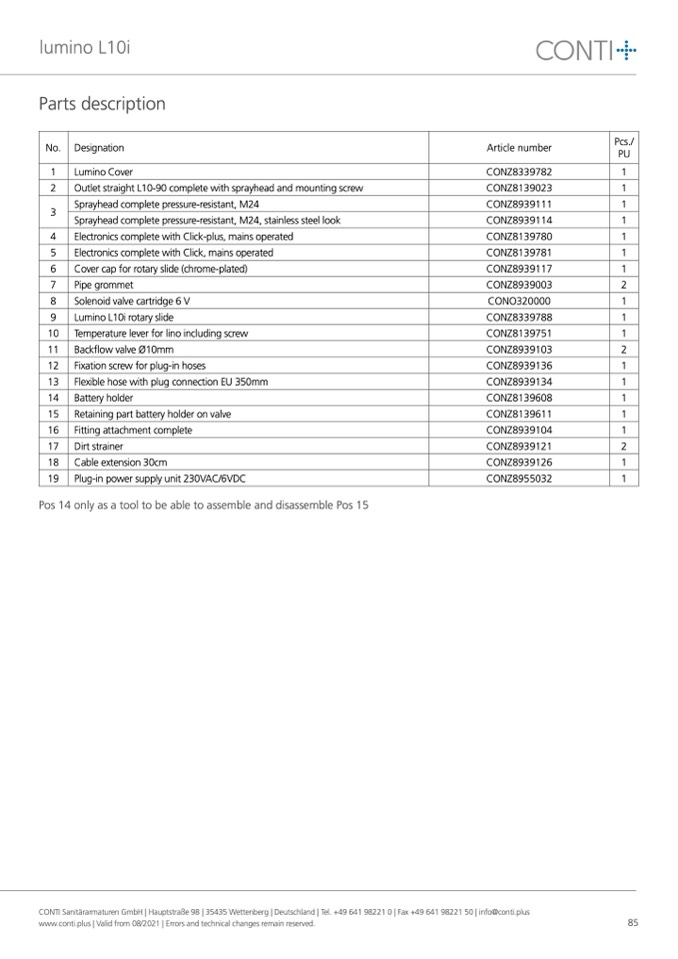

lumino L10i

Parts description

No�

Designation

Article number

Pcs�/

PU

1

Lumino Cover

CONZ8339782

1

2

Outlet straight L10-90 complete with sprayhead and mounting screw

CONZ8139023

1

3

Sprayhead complete pressure-resistant, M24

CONZ8939111

1

Sprayhead complete pressure-resistant, M24, stainless steel look

CONZ8939114

1

4

Electronics complete with Click-plus, mains operated

CONZ8139780

1

5

Electronics complete with Click, mains operated

CONZ8139781

1

6

Cover cap for rotary slide (chrome-plated)

CONZ8939117

1

7

Pipe grommet

CONZ8939003

2

8

Solenoid valve cartridge 6 V

CONO320000

1

9

Lumino L10i rotary slide

CONZ8339788

1

10

Temperature lever for lino including screw

CONZ8139751

1

11

Backflow valve Ø10mm

CONZ8939103

2

12

Fixation screw for plug-in hoses

CONZ8939136

1

13

Flexible hose with plug connection EU 350mm

CONZ8939134

1

14

Battery holder

CONZ8139608

1

15

Retaining part battery holder on valve

CONZ8139611

1

16

Fitting attachment complete

CONZ8939104

1

17

Dirt strainer

CONZ8939121

2

18

Cable extension 30cm

CONZ8939126

1

19

Plug-in power supply unit 230VAC/6VDC

CONZ8955032

1

Pos 14 only as a tool to be able to assemble and disassemble Pos 15
