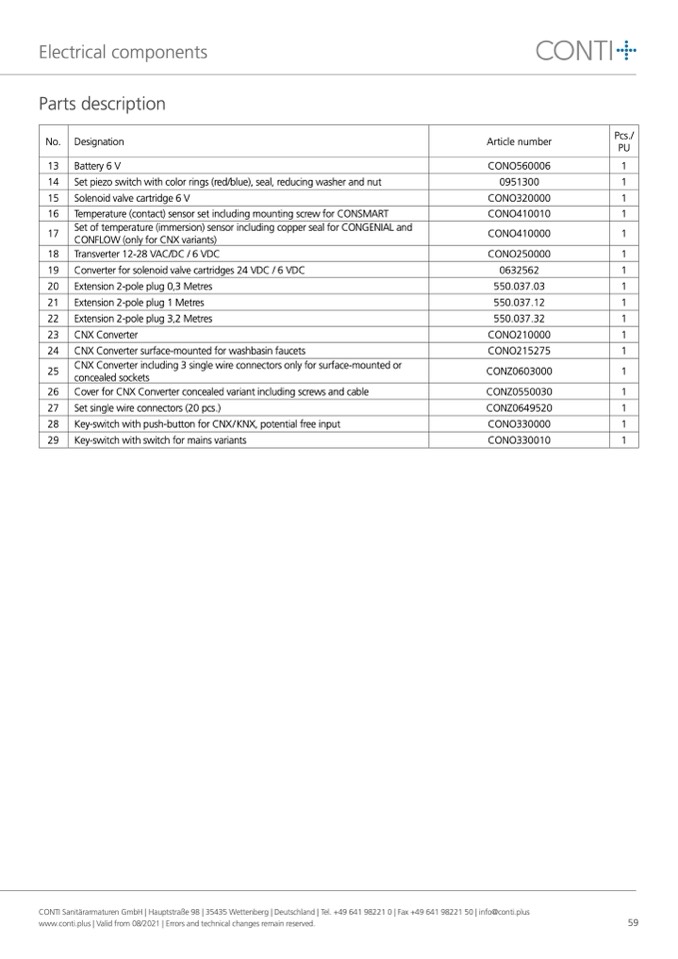

Electrical components

Parts description

No�

Designation

Article number

Pcs�/

PU

13

Battery 6 V

CONO560006

1

14

Set piezo switch with color rings (red/blue), seal, reducing washer and nut

0951300

1

15

Solenoid valve cartridge 6 V

CONO320000

1

16

Temperature (contact) sensor set including mounting screw for CONSMART

CONO410010

1

17

Set of temperature (immersion) sensor including copper seal for CONGENIAL and

CONFLOW (only for CNX variants)

CONO410000

1

18

Transverter 12-28 VAC/DC / 6 VDC

CONO250000

1

19

Converter for solenoid valve cartridges 24 VDC / 6 VDC

0632562

1

20

Extension 2-pole plug 0,3 Metres

550�037�03

1

21

Extension 2-pole plug 1 Metres

550�037�12

1

22

Extension 2-pole plug 3,2 Metres

550�037�32

1

23

CNX Converter

CONO210000

1

24

CNX Converter surface-mounted for washbasin faucets

CONO215275

1

25

CNX Converter including 3 single wire connectors only for surface-mounted or

concealed sockets

CONZ0603000

1

26

Cover for CNX Converter concealed variant including screws and cable

CONZ0550030

1

27

Set single wire connectors (20 pcs�)

CONZ0649520

1

28

Key-switch with push-button for CNX/KNX, potential free input

CONO330000

1

29

Key-switch with switch for mains variants

CONO330010

1

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus

www.conti.plus | Valid from 08/2021 | Errors and technical changes remain reserved.

59
