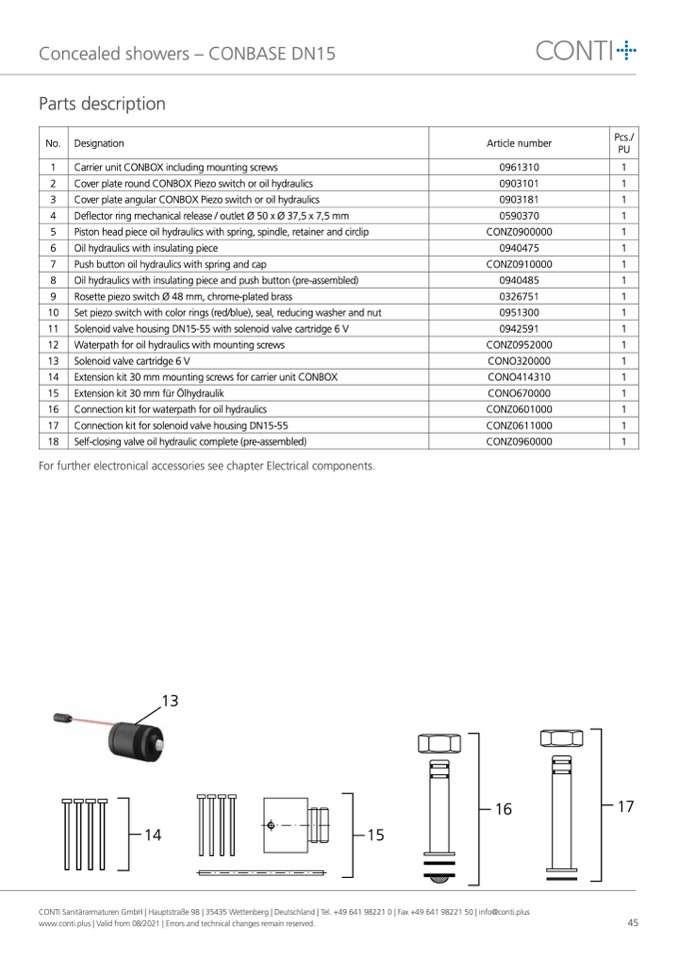

Concealed showers – CONBASE DN15

Parts description

No�

Designation

Article number

Pcs�/

PU

1

Carrier unit CONBOX including mounting screws

0961310

1

2

Cover plate round CONBOX Piezo switch or oil hydraulics

0903101

1

3

Cover plate angular CONBOX Piezo switch or oil hydraulics

0903181

1

4

Deflector ring mechanical release / outlet Ø 50 x Ø 37,5 x 7,5 mm

0590370

1

5

Piston head piece oil hydraulics with spring, spindle, retainer and circlip

CONZ0900000

1

6

Oil hydraulics with insulating piece

0940475

1

7

Push button oil hydraulics with spring and cap

CONZ0910000

1

8

Oil hydraulics with insulating piece and push button (pre-assembled)

0940485

1

9

Rosette piezo switch Ø 48 mm, chrome-plated brass

0326751

1

10

Set piezo switch with color rings (red/blue), seal, reducing washer and nut

0951300

1

11

Solenoid valve housing DN15-55 with solenoid valve cartridge 6 V

0942591

1

12

Waterpath for oil hydraulics with mounting screws

CONZ0952000

1

13

Solenoid valve cartridge 6 V

CONO320000

1

14

Extension kit 30 mm mounting screws for carrier unit CONBOX

CONO414310

1

15

Extension kit 30 mm für Ölhydraulik

CONO670000

1

16

Connection kit for waterpath for oil hydraulics

CONZ0601000

1

17

Connection kit for solenoid valve housing DN15-55

CONZ0611000

1

18

Self-closing valve oil hydraulic complete (pre-assembled)

CONZ0960000

1

For further electronical accessories see chapter Electrical components�

13

14

15

16

17
