Concealed showers – CONGENIAL FIT

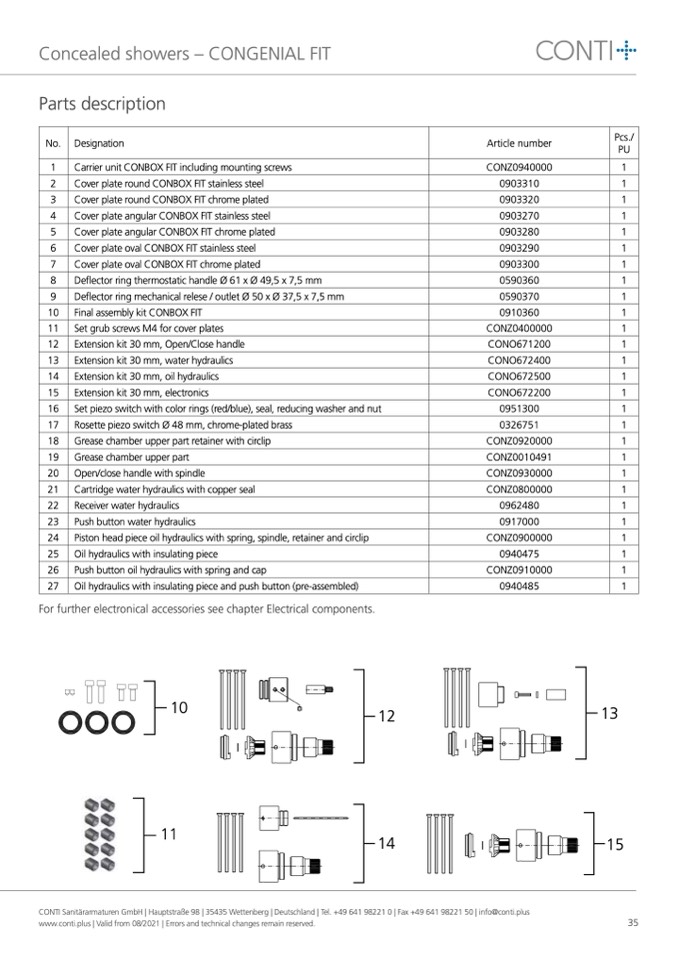

Parts description
No� Designation
1
Carrier unit CONBOX FIT including mounting screws
2
Cover plate round CONBOX FIT stainless steel
3
Cover plate round CONBOX FIT chrome plated
4
Cover plate angular CONBOX FIT stainless steel
5
Cover plate angular CONBOX FIT chrome plated
6
Cover plate oval CONBOX FIT stainless steel
7
Cover plate oval CONBOX FIT chrome plated
8
Deflector ring thermostatic handle Ø 61 x Ø 49,5 x 7,5 mm
9
Deflector ring mechanical relese / outlet Ø 50 x Ø 37,5 x 7,5 mm
10 Final assembly kit CONBOX FIT
11 Set grub screws M4 for cover plates
12 Extension kit 30 mm, Open/Close handle
13 Extension kit 30 mm, water hydraulics
14 Extension kit 30 mm, oil hydraulics
15 Extension kit 30 mm, electronics
16 Set piezo switch with color rings (red/blue), seal, reducing washer and nut
17 Rosette piezo switch Ø 48 mm, chrome-plated brass
18 Grease chamber upper part retainer with circlip
19 Grease chamber upper part
20 Open/close handle with spindle
21 Cartridge water hydraulics with copper seal
22 Receiver water hydraulics
23 Push button water hydraulics
24 Piston head piece oil hydraulics with spring, spindle, retainer and circlip
25 Oil hydraulics with insulating piece
26 Push button oil hydraulics with spring and cap
27 Oil hydraulics with insulating piece and push button (pre-assembled)
Article number
Pcs�/
PU
For further electronical accessories see chapter Electrical components�
