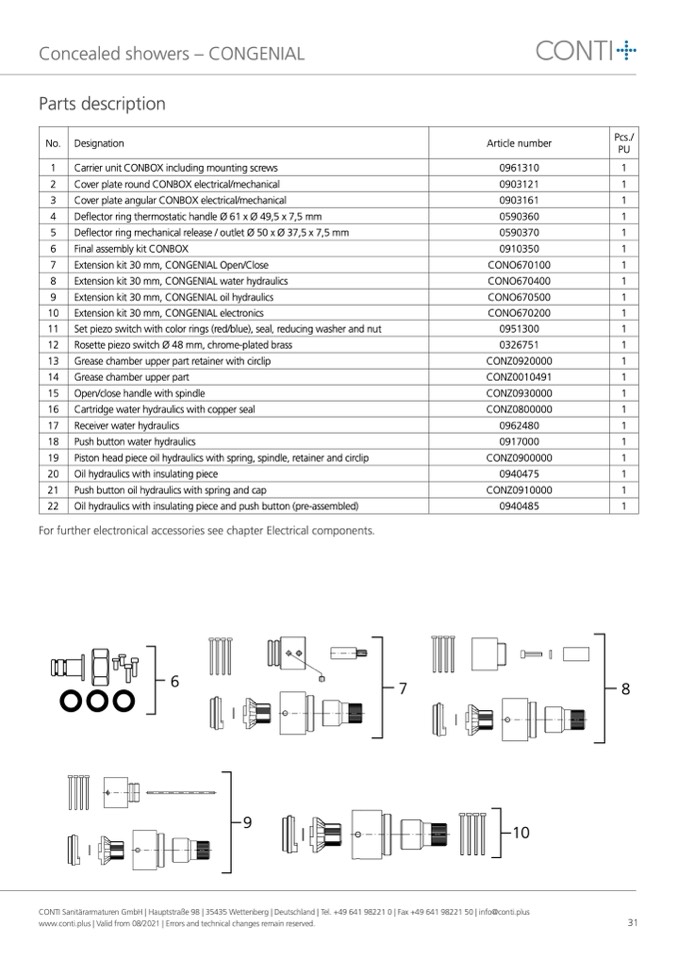

Concealed showers – CONGENIAL

Parts description

No� Designation

1

Carrier unit CONBOX including mounting screws

2

Cover plate round CONBOX electrical/mechanical

3

Cover plate angular CONBOX electrical/mechanical

4

Deflector ring thermostatic handle Ø 61 x Ø 49,5 x 7,5 mm

5

Deflector ring mechanical release / outlet Ø 50 x Ø 37,5 x 7,5 mm

6

Final assembly kit CONBOX

7

Extension kit 30 mm, CONGENIAL Open/Close

8

Extension kit 30 mm, CONGENIAL water hydraulics

9

Extension kit 30 mm, CONGENIAL oil hydraulics

10 Extension kit 30 mm, CONGENIAL electronics

11 Set piezo switch with color rings (red/blue), seal, reducing washer and nut

12 Rosette piezo switch Ø 48 mm, chrome-plated brass

13 Grease chamber upper part retainer with circlip

14 Grease chamber upper part

15 Open/close handle with spindle

16 Cartridge water hydraulics with copper seal

17 Receiver water hydraulics

18 Push button water hydraulics

19 Piston head piece oil hydraulics with spring, spindle, retainer and circlip

20 Oil hydraulics with insulating piece

21 Push button oil hydraulics with spring and cap

22 Oil hydraulics with insulating piece and push button (pre-assembled)

For further electronical accessories see chapter Electrical components�

6

Article number

Pcs�/

PU

9

7

8

10
