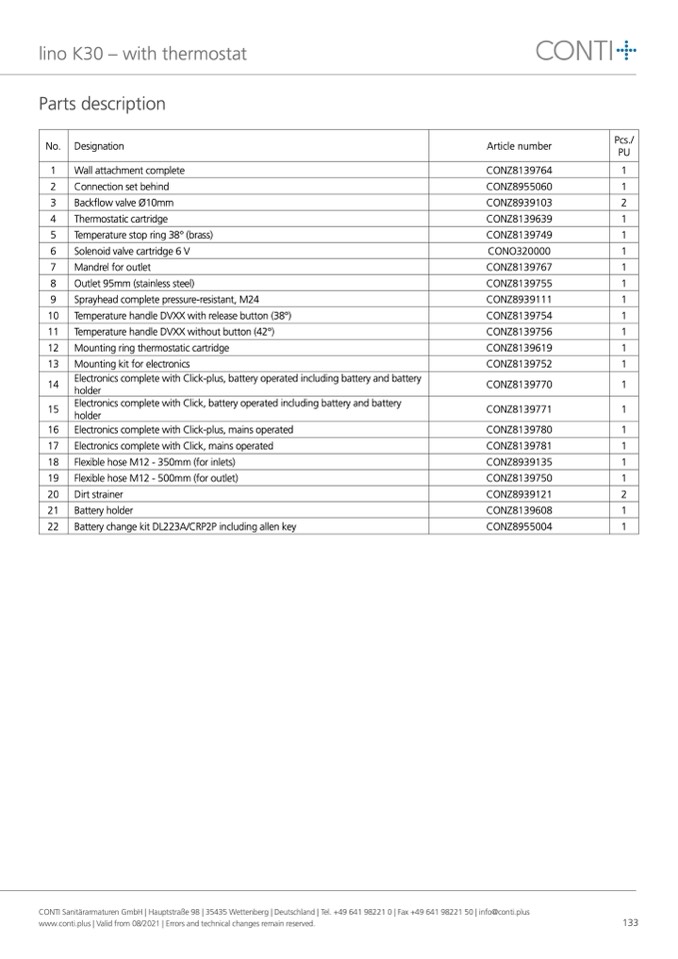

lino K30 – with thermostat

Parts description

No�

Designation

Article number

Pcs�/

PU

1

Wall attachment complete

CONZ8139764

1

2

Connection set behind

CONZ8955060

1

3

Backflow valve Ø10mm

CONZ8939103

2

4

Thermostatic cartridge

CONZ8139639

1

5

Temperature stop ring 38° (brass)

CONZ8139749

1

6

Solenoid valve cartridge 6 V

CONO320000

1

7

Mandrel for outlet

CONZ8139767

1

8

Outlet 95mm (stainless steel)

CONZ8139755

1

9

Sprayhead complete pressure-resistant, M24

CONZ8939111

1

10

Temperature handle DVXX with release button (38°)

CONZ8139754

1

11

Temperature handle DVXX without button (42°)

CONZ8139756

1

12

Mounting ring thermostatic cartridge

CONZ8139619

1

13

Mounting kit for electronics

CONZ8139752

1

14

Electronics complete with Click-plus, battery operated including battery and battery

holder

CONZ8139770

1

15

Electronics complete with Click, battery operated including battery and battery

holder

CONZ8139771

1

16

Electronics complete with Click-plus, mains operated

CONZ8139780

1

17

Electronics complete with Click, mains operated

CONZ8139781

1

18

Flexible hose M12 - 350mm (for inlets)

CONZ8939135

1

19

Flexible hose M12 - 500mm (for outlet)

CONZ8139750

1

20

Dirt strainer

CONZ8939121

2

21

Battery holder

CONZ8139608

1

22

Battery change kit DL223A/CRP2P including allen key

CONZ8955004

1
