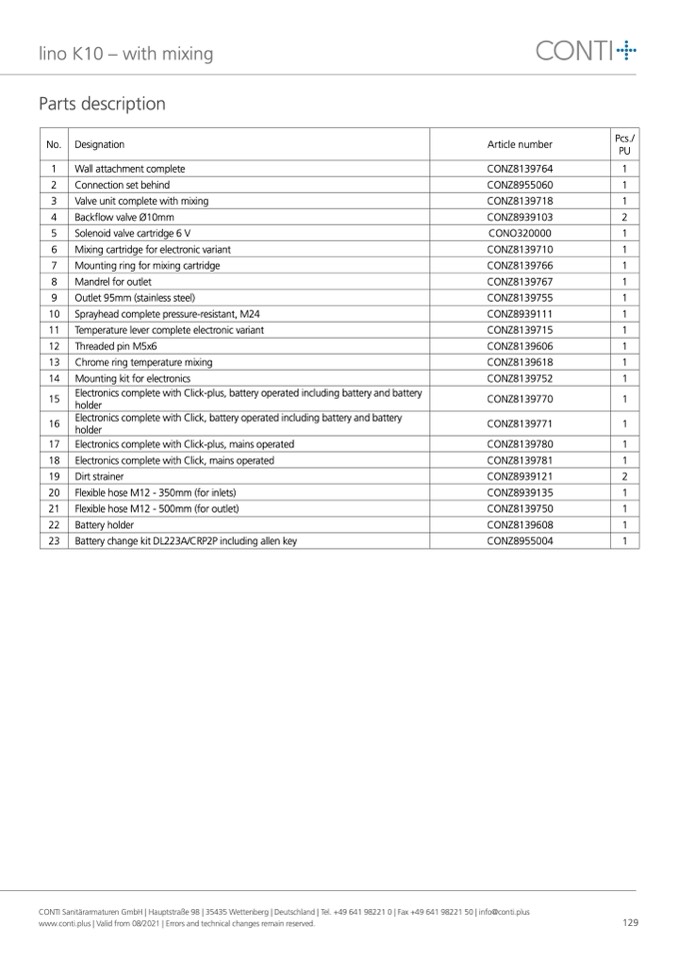

lino K10 – with mixing

Parts description

No�

Designation

Article number

Pcs�/

PU

1

Wall attachment complete

CONZ8139764

1

2

Connection set behind

CONZ8955060

1

3

Valve unit complete with mixing

CONZ8139718

1

4

Backflow valve Ø10mm

CONZ8939103

2

5

Solenoid valve cartridge 6 V

CONO320000

1

6

Mixing cartridge for electronic variant

CONZ8139710

1

7

Mounting ring for mixing cartridge

CONZ8139766

1

8

Mandrel for outlet

CONZ8139767

1

9

Outlet 95mm (stainless steel)

CONZ8139755

1

10

Sprayhead complete pressure-resistant, M24

CONZ8939111

1

11

Temperature lever complete electronic variant

CONZ8139715

1

12

Threaded pin M5x6

CONZ8139606

1

13

Chrome ring temperature mixing

CONZ8139618

1

14

Mounting kit for electronics

CONZ8139752

1

15

Electronics complete with Click-plus, battery operated including battery and battery

holder

CONZ8139770

1

16

Electronics complete with Click, battery operated including battery and battery

holder

CONZ8139771

1

17

Electronics complete with Click-plus, mains operated

CONZ8139780

1

18

Electronics complete with Click, mains operated

CONZ8139781

1

19

Dirt strainer

CONZ8939121

2

20

Flexible hose M12 - 350mm (for inlets)

CONZ8939135

1

21

Flexible hose M12 - 500mm (for outlet)

CONZ8139750

1

22

Battery holder

CONZ8139608

1

23

Battery change kit DL223A/CRP2P including allen key

CONZ8955004

1
