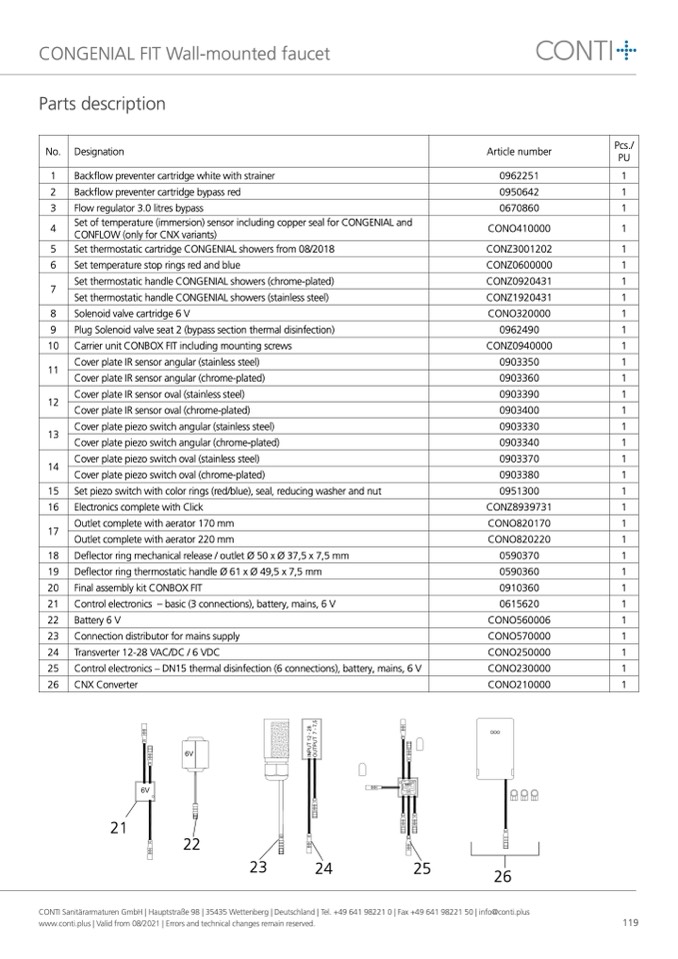

CONGENIAL FIT Wall-mounted faucet

Parts description

No� Designation

1

Backflow preventer cartridge white with strainer

2

Backflow preventer cartridge bypass red

3

Flow regulator 3�0 litres bypass

4

Set of temperature (immersion) sensor including copper seal for CONGENIAL and

CONFLOW (only for CNX variants)

5

Set thermostatic cartridge CONGENIAL showers from 08/2018

6

Set temperature stop rings red and blue

Article number

Pcs�/

PU

7

Set thermostatic handle CONGENIAL showers (chrome-plated)

0962251

1

0950642

1

0670860

1

CONO410000

1

CONZ3001202

1

CONZ0600000

1

CONZ0920431

1

CONZ1920431

1

CONO320000

1

0962490

1

CONZ0940000

1

0903350

1

0903360

1

0903390

1

0903400

1

0903330

1

0903340

1

0903370

1

0903380

1

0951300

1

CONZ8939731

1

CONO820170

1

CONO820220

1

0590370

1

0590360

1

0910360

1

0615620

1

CONO560006

1

CONO570000

1

CONO250000

1

CONO230000

1

CONO210000

1

Set thermostatic handle CONGENIAL showers (stainless steel)

8

Solenoid valve cartridge 6 V

9

Plug Solenoid valve seat 2 (bypass section thermal disinfection)

10 Carrier unit CONBOX FIT including mounting screws

11

12

13

14

Cover plate IR sensor angular (stainless steel)

Cover plate IR sensor angular (chrome-plated)

Cover plate IR sensor oval (stainless steel)

Cover plate IR sensor oval (chrome-plated)

Cover plate piezo switch angular (stainless steel)

Cover plate piezo switch angular (chrome-plated)

Cover plate piezo switch oval (stainless steel)

Cover plate piezo switch oval (chrome-plated)

15 Set piezo switch with color rings (red/blue), seal, reducing washer and nut

16 Electronics complete with Click

17

Outlet complete with aerator 170 mm

Outlet complete with aerator 220 mm

18 Deflector ring mechanical release / outlet Ø 50 x Ø 37,5 x 7,5 mm

19 Deflector ring thermostatic handle Ø 61 x Ø 49,5 x 7,5 mm

20 Final assembly kit CONBOX FIT

21 Control electronics – basic (3 connections), battery, mains, 6 V

22 Battery 6 V

23 Connection distributor for mains supply

24 Transverter 12-28 VAC/DC / 6 VDC

25 Control electronics – DN15 thermal disinfection (6 connections), battery, mains, 6 V

26 CNX Converter

21

22

23

24

25

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus

www.conti.plus | Valid from 08/2021 | Errors and technical changes remain reserved.

119

26
