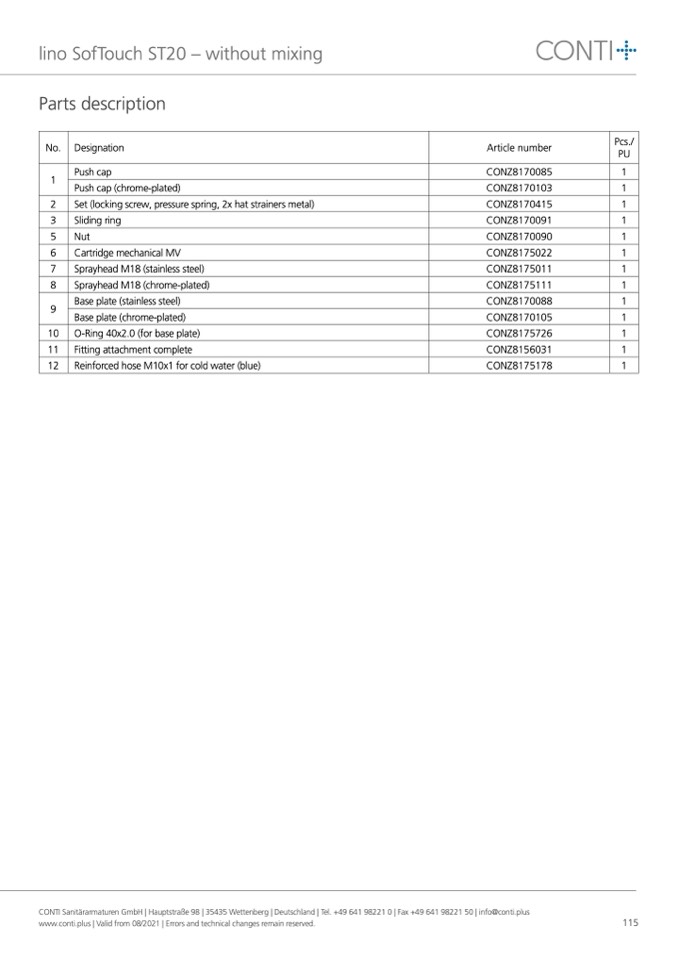

lino SofTouch ST20 – without mixing

Parts description

No�

Designation

Article number

Pcs�/

PU

1

Push cap

CONZ8170085

1

Push cap (chrome-plated)

CONZ8170103

1

2

Set (locking screw, pressure spring, 2x hat strainers metal)

CONZ8170415

1

3

Sliding ring

CONZ8170091

1

5

Nut

CONZ8170090

1

6

Cartridge mechanical MV

CONZ8175022

1

7

Sprayhead M18 (stainless steel)

CONZ8175011

1

8

Sprayhead M18 (chrome-plated)

CONZ8175111

1

9

Base plate (stainless steel)

CONZ8170088

1

Base plate (chrome-plated)

CONZ8170105

1

10

O-Ring 40x2�0 (for base plate)

CONZ8175726

1

11

Fitting attachment complete

CONZ8156031

1

12

Reinforced hose M10x1 for cold water (blue)

CONZ8175178

1
