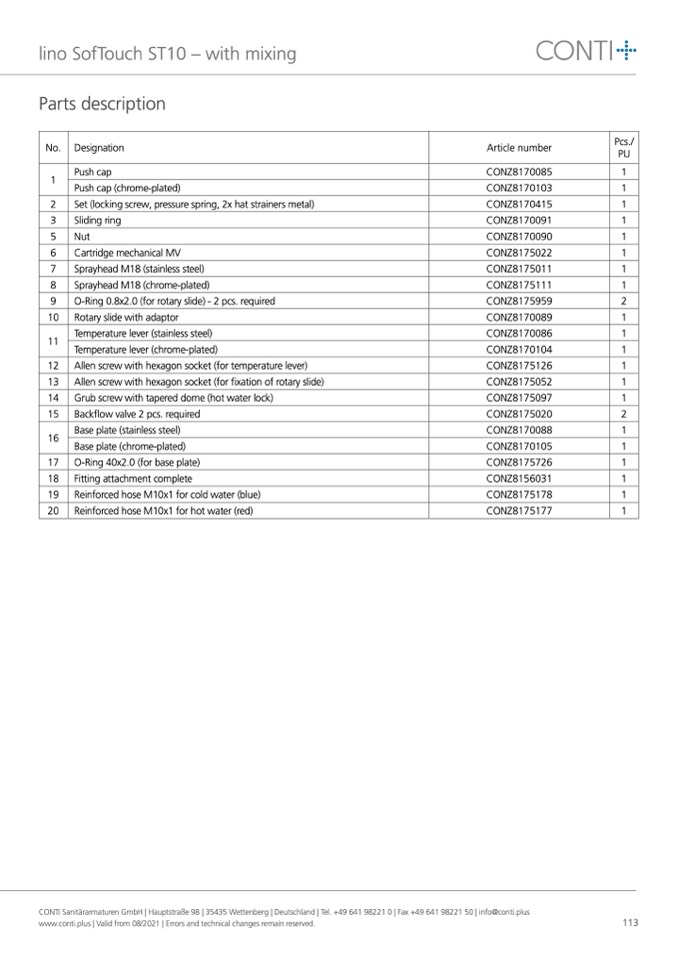

lino SofTouch ST10 – with mixing

Parts description

No�

Designation

Article number

Pcs�/

PU

1

Push cap

CONZ8170085

1

Push cap (chrome-plated)

CONZ8170103

1

2

Set (locking screw, pressure spring, 2x hat strainers metal)

CONZ8170415

1

3

Sliding ring

CONZ8170091

1

5

Nut

CONZ8170090

1

6

Cartridge mechanical MV

CONZ8175022

1

7

Sprayhead M18 (stainless steel)

CONZ8175011

1

8

Sprayhead M18 (chrome-plated)

CONZ8175111

1

9

O-Ring 0�8x2�0 (for rotary slide) - 2 pcs� required

CONZ8175959

2

10

Rotary slide with adaptor

CONZ8170089

1

11

Temperature lever (stainless steel)

CONZ8170086

1

Temperature lever (chrome-plated)

CONZ8170104

1

12

Allen screw with hexagon socket (for temperature lever)

CONZ8175126

1

13

Allen screw with hexagon socket (for

fixation of rotary slide)

CONZ8175052

1

14

Grub screw with tapered dome (hot water lock)

CONZ8175097

1

15

Backflow valve 2 pcs� required

CONZ8175020

2

16

Base plate (stainless steel)

CONZ8170088

1

Base plate (chrome-plated)

CONZ8170105

1

17

O-Ring 40x2�0 (for base plate)

CONZ8175726

1

18

Fitting attachment complete

CONZ8156031

1

19

Reinforced hose M10x1 for cold water (blue)

CONZ8175178

1

20

Reinforced hose M10x1 for hot water (red)

CONZ8175177

1
