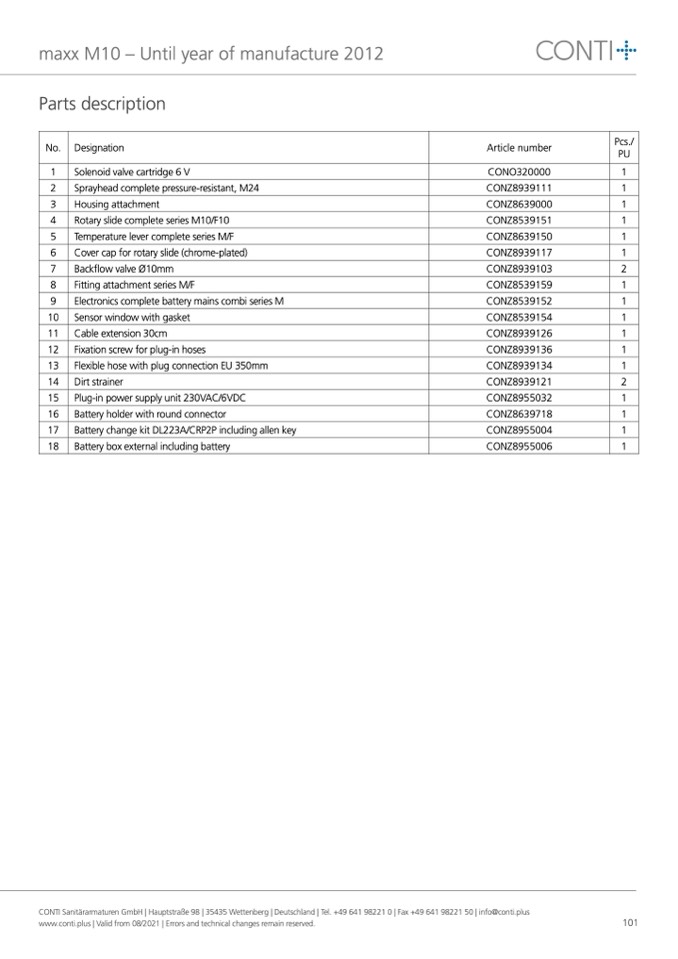

maxx M10 – Until year of manufacture 2012

Parts description

No�

Designation

Article number

Pcs�/

PU

1

Solenoid valve cartridge 6 V

CONO320000

1

2

Sprayhead complete pressure-resistant, M24

CONZ8939111

1

3

Housing attachment

CONZ8639000

1

4

Rotary slide complete series M10/F10

CONZ8539151

1

5

Temperature lever complete series M/F

CONZ8639150

1

6

Cover cap for rotary slide (chrome-plated)

CONZ8939117

1

7

Backflow valve Ø10mm

CONZ8939103

2

8

Fitting attachment series M/F

CONZ8539159

1

9

Electronics complete battery mains combi series M

CONZ8539152

1

10

Sensor window with gasket

CONZ8539154

1

11

Cable extension 30cm

CONZ8939126

1

12

Fixation screw for plug-in hoses

CONZ8939136

1

13

Flexible hose with plug connection EU 350mm

CONZ8939134

1

14

Dirt strainer

CONZ8939121

2

15

Plug-in power supply unit 230VAC/6VDC

CONZ8955032

1

16

Battery holder with round connector

CONZ8639718

1

17

Battery change kit DL223A/CRP2P including allen key

CONZ8955004

1

18

Battery box external including battery

CONZ8955006

1
